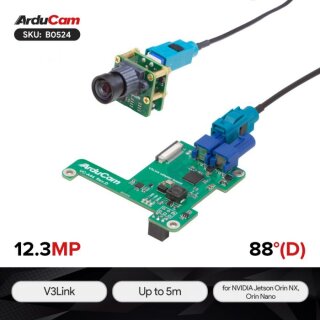

Arducam B0524 IMX477P V3Link FPD-Link SerDes Camera Kit for NVIDIA Jetson Orin NX

Artnr.: AC2-205240
HAN: B0524
Hersteller: Arducam

Arducam IMX477P V3Link FPD-Link SerDes Camera Kit for NVIDIA? Jetson Orin NX, Orin Nano

109,00 €

inkl. 19% MwSt.

(91,60 € exkl. MwSt.)

bestellbar
Lieferzeit: ca. 3 Monate (DE - Ausland abweichend)

Beschreibung
Kundenrezensionen

Arducam's V3Link Camera Kit is built around a high-quality IMX477P sensor that adheres to the V3Link protocol, making it perfect for high-bandwidth, extended-range projects. The kit utilizes coaxial cables to ensure reliable power and data transmission up to 5 meters, providing low latency for optimal performance. With support for up to 2 IMX477P cameras and channel-switching capabilities, this kit is a versatile solution for various applications.

Designed for the NVIDIA Jetson Orin Nano/NX, the kit includes an IMX477P camera module with a pre-installed Tx board, a Rx adapter board for connecting to the Jetson development board, and a 1-meter coaxial cable, enabling remote camera deployment with minimal configuration.

V3Link, a cutting-edge technology developed by Texas Instruments, incorporates FPD-Link IP to integrate advanced driver assistance systems (ADAS), security cameras, industrial systems, and medical imaging into a single platform. Arducam's V3Link Camera Kit leverages this technology to combine long-range data transfer with embedded vision, offering a compact and efficient solution for a variety of high-performance vision projects.

Applications

ADAS
Automotive
Security Cameras
Industrial Systems
Medical Imaging

Features

NVIDIA Jetson Orin Nano/NX Compatibility: Designed specifically for the Jetson Orin NX and Orin Nano, this V3LINK camera kit ensures high bandwidth and long-range transmission for optimal performance.
High-performance IMX477P CMOS: Utilizes a 12.3-megapixel sensor for superior image quality with a 24*25mm camera board and M12 high-quality lens. The compact hardware supports Fakra Z Female to Female RF Coaxial Cable connections of up to 5 meters, enabling multi-camera access.
Adaptive Channel Management: Up to two 477P cameras of the same model can be connected for independent camera switching. This feature is suitable for applications ranging from automotive to medical imaging.
Cost-effective Dual-channel System: The dual-channel vision system reduces development costs thanks to its compact hardware architecture. It provides an efficient solution for integrating embedded cameras with V3LINK.
Plug & Play: Hot-swappable support on the camera side (Tx board) simplifies integration and allows you to quickly deploy your V3LINK Extension camera project with a simple configuration.

Specifications

Image Sensor
Sensor	IMX477P
Still Resolution	12.3 Megapixels
Color Filter Type	Color
Shutter Type	Rolling
Optical Size	1/2.3"
Output Format	RAW10 (RG10)
Pixel Size	1.55 μm x 1.55 μm
Sensor Active Area	4056(H) × 3040(V)
Video Modes	l4t36.x:4032x3040@21fps,3840x2160@30fps,1920x1080@60fps
Lens
Focus Type	Manual Focus
FOV	88°(D)×75°(H)×60°(V)
Lens Mount	M12 (S-mount)
F.NO	F2.8
E.F.L	3.9mm
IR Sensitivity	Integral IR-cut Filter, visible light only
Electrical and Mechanical
Operating Voltage	3.3V
Operating Temp.	32°F-158°F (0°C to 70°C)
Working Current	Max: 300mA
Camera Board Size	24 × 25 mm
Functionality and Compatibility
Supported Platform	NVIDIA Jetson Orin Nano/Orin NX
Supported OS	JetPack/L4T (JetPack 6.0/L4T 36.3.0) and above

Package Including

1 x Arducam V3Link Rx adapter board
1 x Arducam V3Link camera Tx board
1 x 1m Fakra Z Female to Female RF Coaxial Cable
1 x Arducam IMX477P Camera Module
1 x 40mm 22-22pin FFC Cable
1 x 30cm 22-22pin FFC Cable
1 x Screw Pack

Notes

This kit supports only the official NVIDIA Orin NX and Orin Nano development kits; third-party development boards are not supported.
