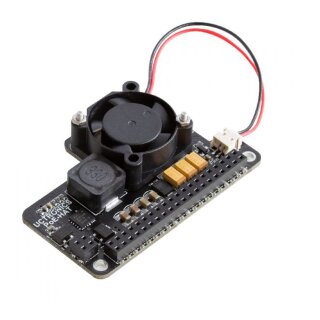

UCTRONICS U6110 PoE HAT for Raspberry Pi 4
Artnr.: UC5-761100
PoE HAT for Raspberry Pi 4, UCTRONICS Mini Power over Ethernet Expansion Board for Raspberry Pi 4 B 3 B+, with Cooling Fan

32,90 € inkl. 19% MwSt.
27,65 € exkl. MwSt.

zzgl. Versand

ab Lager lieferbar

Lieferzeit: 1 - 3 Arbeitstage

Beschreibung

Power your Raspberry Pi 4B/3B+ with a single Ethernet cable, simply put the PoE HAT on the 40-pin connector and you are good to go!
A mini PoE HAT with no cooling fan is also available.
The HAT does not block any connectors on the Raspberry Pi board, and these two PoE HATs are compatible with most enclosures. (see dimensions below)
Want a standard-sized Power over Ethernet HAT for your Rpi? We got you.

Features:

  • Standard: IEEE 802.3af
  • Input: IEEE 802.3af Compliant PoE
  • Output Power: 5V (2.5A Max)
  • Power Output: 12.5W Max
  • Cooling: 25mm×25mm brushless fan

Package Includes:

  • 1× UCTRONICS PoE HAT for Raspberry Pi with cooling fan
  • 2× screws
  • 2× nuts
  • 2× standoffs
  • 1× manual

Dimensions:

  • 3.2 x 2.6 x 1.4 inches

Note:

  • You will need PSE (Power Supply Equipment) to supply PoE signal to the Raspberry Pi, such as a PoE switch or injector.
  • This HAT only supports CAT 5Eand CAT 6E network cable.
  • A network switch or power supply equipment (PSE) is required to provide PoE signals, and they must comply with IEEE 802.3af or 802.3at PoE standards, especially section 33.4.1 on PSE electrical isolation. For non-isolated switches, such as some Ubiquiti switches cannot provide proper isolation, they can only be used with CAT 5E and CAT 6E network cables.

Additional Resources:

You May Also Like

UCTRONICS Mini PoE HAT for Raspberry Pi

Mini PoE HAT for Raspberry Pi 4B/3b+ >>

Raspberry Pi Power Over Ethernet Adapter for Rpi 4

Power Over Ethernet (PoE) HAT for Raspberry Pi 4B/3b+ >>

If you are using other Rpi models other than 3B+/4B, check out our PoE splitter series.
