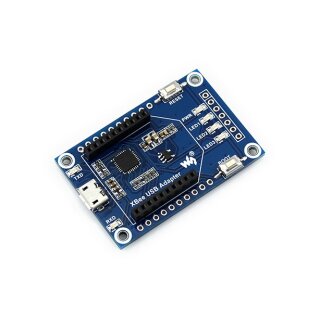

Waveshare 11293 XBee USB Adapter
Beschreibung
XBee USB Adapter Overview
XBee USB Adapter is a UART communication board which supports XBee connectivity, features UART interface, USB interface, and onboard buttons/LEDs, provides an easy way for developing/debugging.
It can be used in the following situations :
- Test XBee modules: onboard buttons/LEDs for easy testing
- Program/Configure XBee modules: make it easy to program/configure the XBee modules frequently
- USB to UART module: features CP2102, provides UART interface and power output interface, connect it to your system easily
Note : XBee modules above refer to modules with XBee-compatible interface, like: Core2530 (B),Dual-mode Bluetooth, etc.

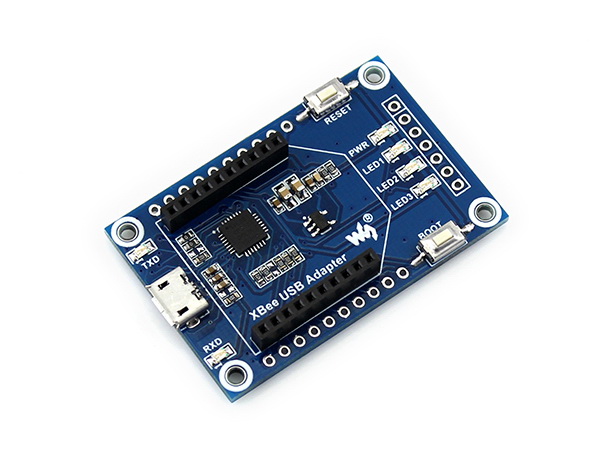

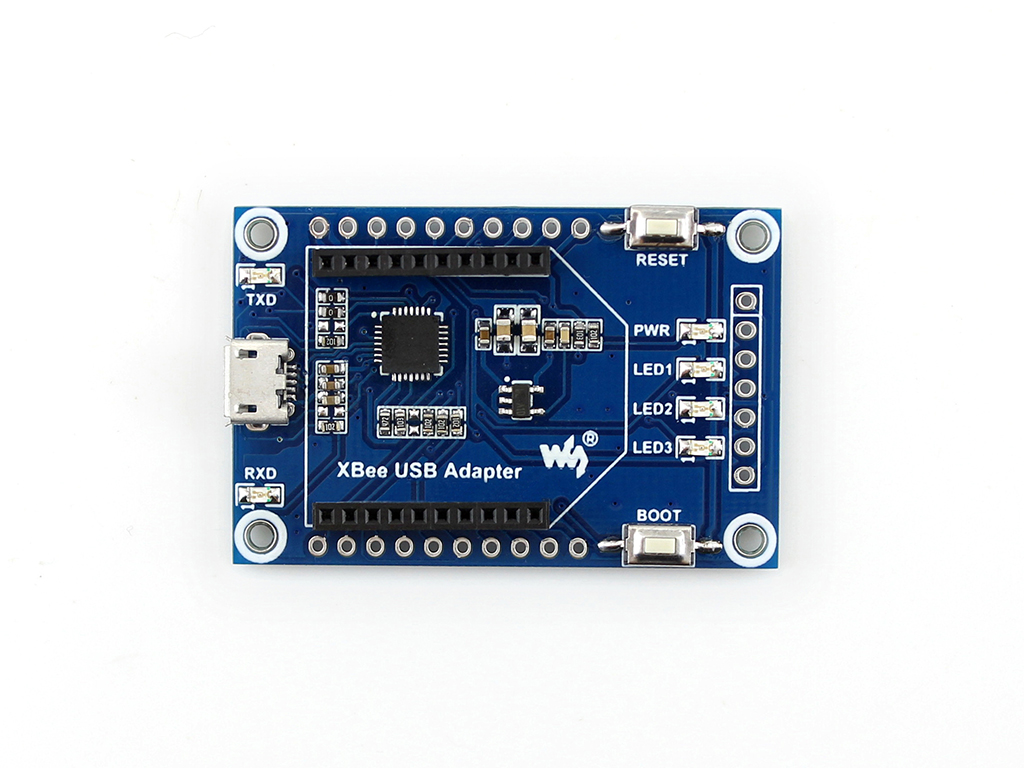

Photos

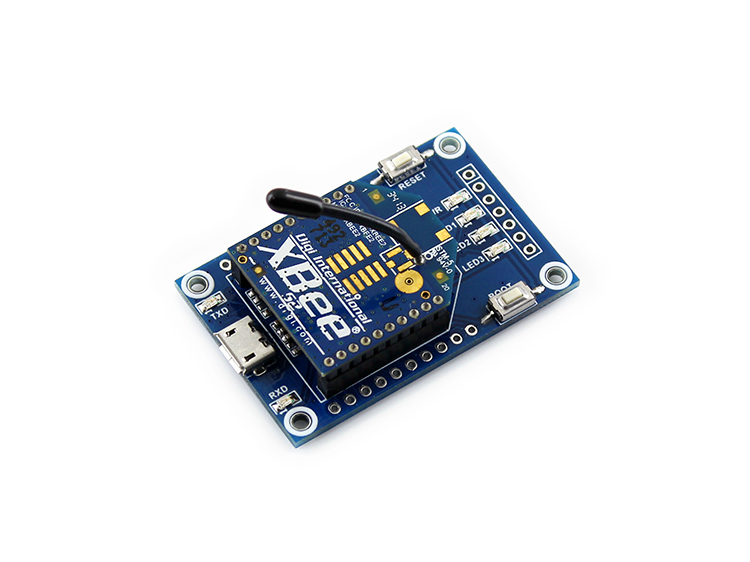

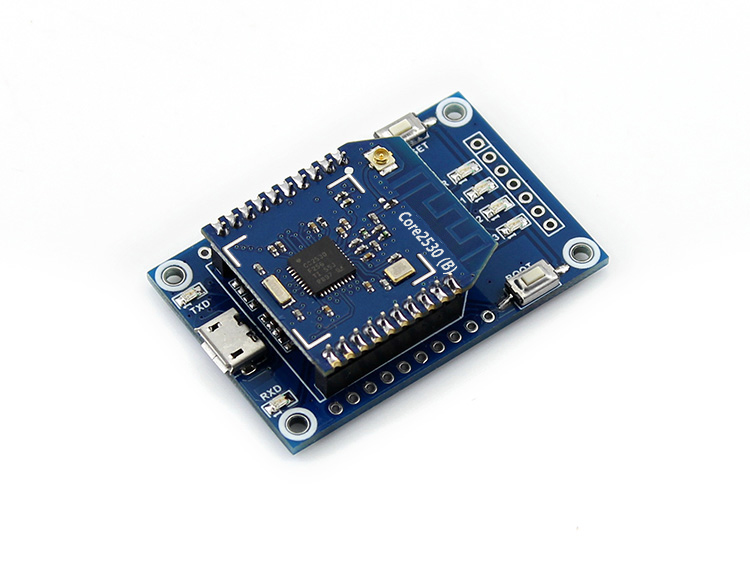

Note : the XBee/ZigBee modules in the photos are NOT included.

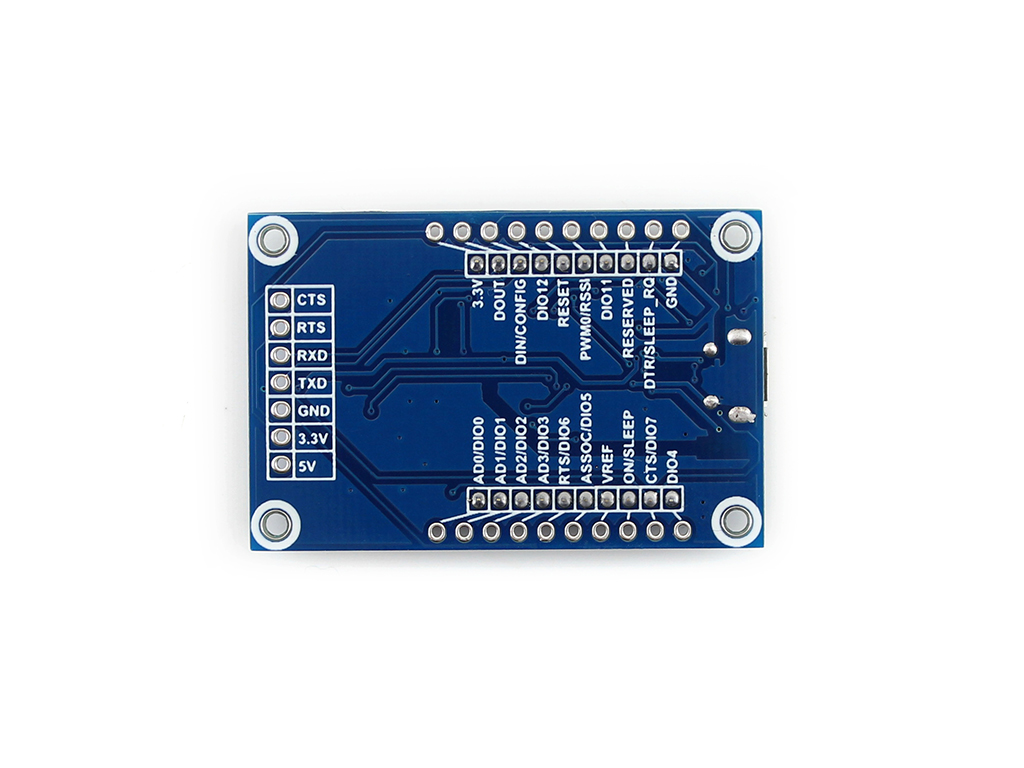

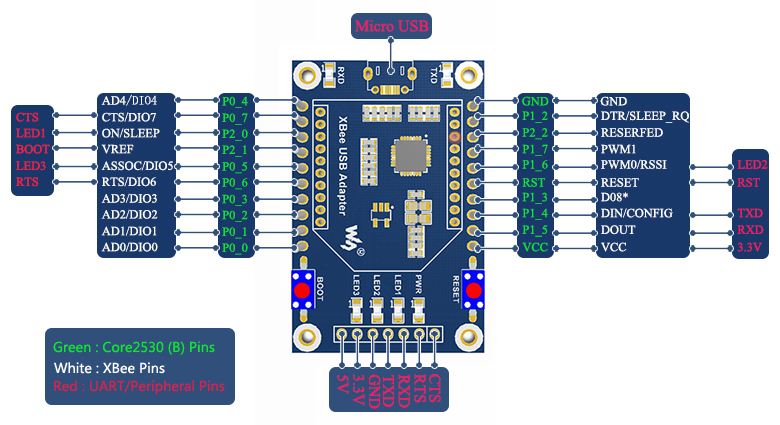

Pin Definition

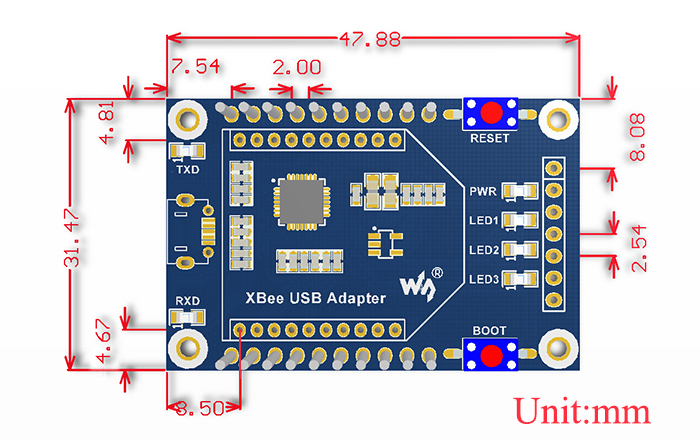

Dimension
Development Resources
Package Contents
- XBee USB Adapter x 1

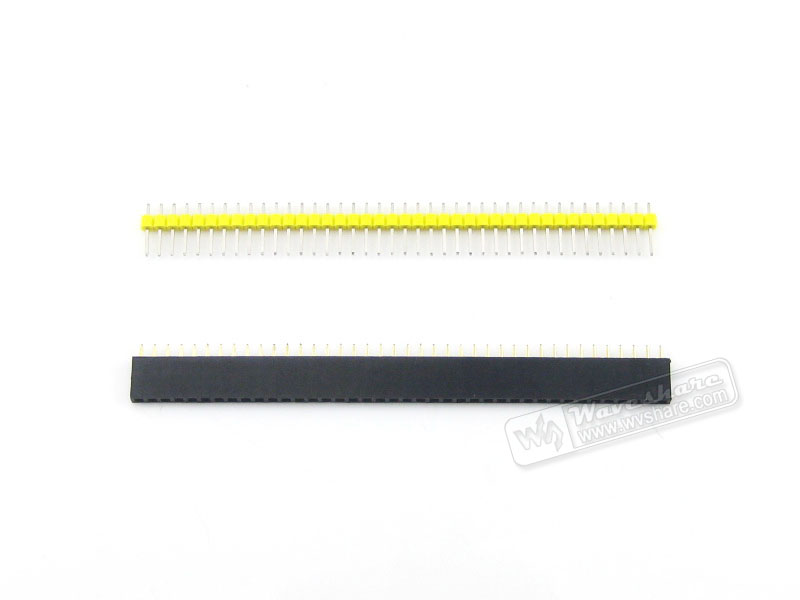

- 40-pin male pinheader & 40-pin female pinheader x 1
- USB Type A Plug to Micro B Plug Cable x 1
