Waveshare 13890 1.3inch OLED HAT
Beschreibung

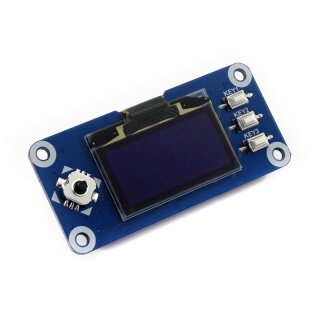

This is an OLED display HAT for Raspberry Pi, 1.3inch diagonal, 128x64 pixels, with embedded controller, communicating via SPI or I2C interface.
Trying to add a control interface for your Pi? This compact display would be the ideal choice.
Features
- Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards, Jetson Nano
- Optional interfaces: 4-wire SPI, 3-wire SPI, I2C, configured via onboard resistor

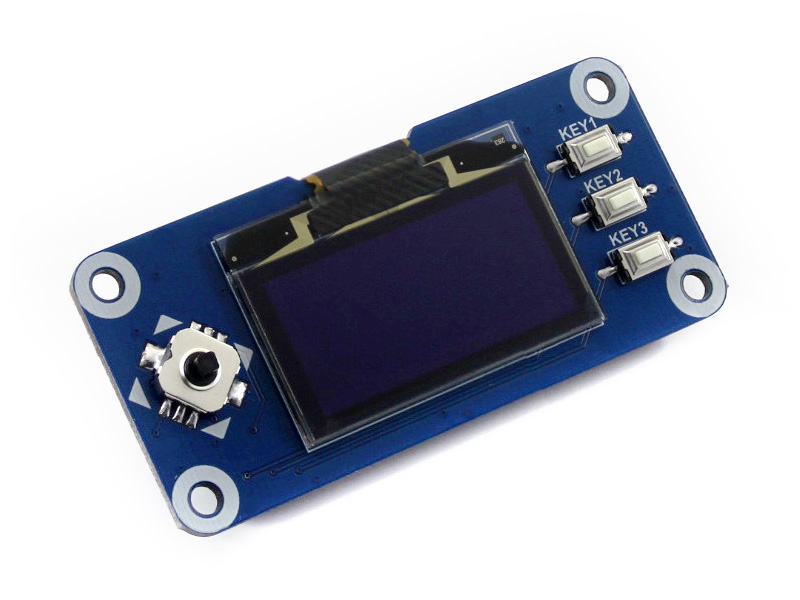

- 1x joystick (5-position), 3x pushbuttons, handy and useful
- Comes with development resources and manual (examples for Raspberry Pi/Jetson Nano)
Specifications
- Driver: SH1106
- Interface: 4-wire SPI, 3-wire SPI, I2C
- Display color: blue
- Resolution: 128x64
- Operating voltage: 3.3V
Interface
| SYMBOL | Raspberry Pi PIN (BCM) | DESCRIPTION |
|---|---|---|
| KEY1 | P21 | Button 1/GPIO |
| KEY2 | P20 | Button 2/GPIO |
| KEY3 | P16 | Button 3/GPIO |
| Joystick Up | P6 | Joystick Up |
| Joystick Down | P19 | Joystick Down |
| Joystick Left | P5 | Joystick Left |
| Joystick Right | P26 | Joystick Right |
| Joystick Press | P13 | Joystick Press |
| SCLK | P11/SCLK | SPI clock input |
| MOSI | P10/MOSI | SPI data input |
| DC | P24 | Data/Command selection (high for data, low for command) |
| CS | P8/CE0 | Chip selection, low active |
| RST | P25 | Reset, low active |

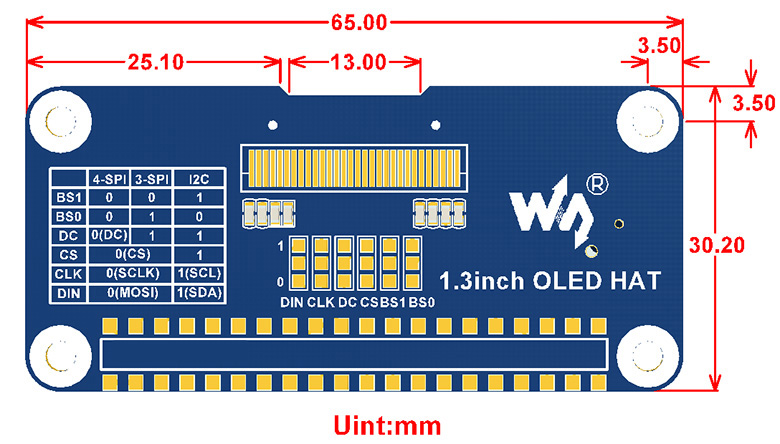

Dimensions
Development Resources
Package Contents
- 1.3inch OLED HAT x1
- RPi screws pack (2pcs) x1
1
2
| Versandgewicht: | 0,02 Kg |
