Waveshare 14448 9.7inch e-paper
Artnr.: WS3-014448

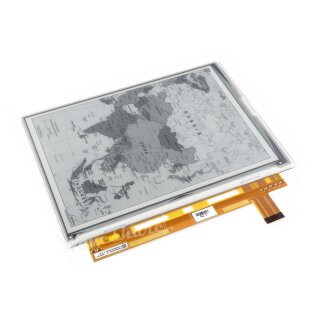

1200x825, 9,7 Zoll E-Ink Rohdisplay, parallele Schnittstelle, ohne PCB

155,00 € inkl. 19% MwSt.
130,25 € exkl. MwSt.
ab Lager lieferbar

Lieferzeit: 1 - 3 Arbeitstage

Beschreibung

This is an E-Ink raw display, 9.7inch, 1200x825 resolution, communicating via parallel port, supports partial refresh.

Due to the advantages like ultra low power consumption, wide viewing angle, clear display without electricity, it is an ideal choice for applications such as shelf label, industrial instrument, and so on.

Features

  • No backlight, keeps displaying last content for a long time even when power down
  • Low power consumption, basically power is only required for refreshing
  • Comes with development resources and manual (driver board schematic, examples for Raspberry Pi/Jetson Nano/STM32)

Specifications

  • Operating voltage: 5V
  • Interface: parallel port
  • Outline dimension: 218.8mm × 156.425mm × 1.15mm
  • Display size: 202.8mm × 139.425mm
  • Dot pitch: 0.169 × 0.169
  • Resolution: 1200 × 825
  • Display color: black, white
  • Gray scale: 2-16 (1-4 bit)
  • Full refresh time: <1s
  • Viewing angle: >170°

Development Resources

Wiki : www.waveshare.com/wiki/9.7inch_e-Paper_HAT

Selection Guide

Part Number Colors Grey Scale Resolution Display size (mm) Outline Dimension (mm) Full Refresh Time (s) Partial Refresh Flexible Interface
1.02inch e-Paper black, white 2 128×80 21.76 × 14.00 32.57 × 18.60 × 0.98 2 SPI
1.54inch e-Paper black, white 2 200×200 27.60 × 27.60 37.32 × 31.80 × 1.05 2 SPI
1.54inch e-Paper (B) red, black, white 2 200×200 27.60 × 27.60 37.32 × 31.80 × 1.05 8 SPI
1.54inch e-Paper (C) yellow, black, white 2 152×152 27.51 × 27.51 37.30 × 31.80 × 0.98 27 SPI
2.13inch e-Paper black, white 2 250×122 48.55 × 23.71 59.20 × 29.20 × 1.05 2 SPI
2.13inch e-Paper (B) red, black, white 2 212×104 48.55 × 23.71 59.20 × 29.20 × 0.98 15 SPI
2.13inch e-Paper (C) yellow, black, white 2 212×104 48.55 × 23.71 59.20 × 29.20 × 0.98 15 SPI
2.13inch e-Paper (D) black, white 2 212×104 48.55 × 23.71 59.20 × 29.20 × 0.30 2 SPI
2.66inch e-Paper black, white 2 296×152 30.704 × 60.088 36.304 × 71.820 × 1.00 6 SPI
2.66inch e-Paper (B) red, black, white 2 296×152 30.704 × 60.088 36.304 × 71.820 × 1.00 15 SPI
2.7inch e-Paper black, white 4 264×176 57.29 × 38.19 70.42 × 45.80 × 0.98 6 SPI
2.7inch e-Paper (B) red, black, white 2 264×176 57.29 × 38.19 70.42 × 45.80 × 0.98 15 SPI
2.9inch e-Paper black, white 2 296×128 66.89 × 29.05 79.00 × 36.70 × 1.05 2 SPI
2.9inch e-Paper (B) red, black, white 2 296×128 66.89 × 29.05 79.00 × 36.70 × 1.18 15 SPI
2.9inch e-Paper (C) yellow, black, white 2 296×128 66.89 × 29.05 79.00 × 36.70 × 1.18 15 SPI
2.9inch e-Paper (D) black, white 2 296×128 66.90 × 29.06 79.00 × 36.70 × 0.34 2 SPI
3.7inch e-Paper black, white 4 480×280 47.32 × 81.12 54.90 × 93.30 × 0.78 3 SPI
4.01inch e-Paper (F) 7-Color 2 640×400 86.40 × 54.00 96.80 × 68.70 × 0.91 15 SPI
4.2inch e-Paper black, white 4 400×300 84.80 × 63.60 91.00 × 77.00 × 1.18 4 SPI
4.2inch e-Paper (B) red, black, white 2 400×300 84.80 × 63.60 90.10 × 77.00 × 1.18 15 SPI
4.2inch e-Paper (C) yellow, black, white 2 400×300 84.80 × 63.60 90.10 × 77.00 × 1.18 15 SPI
5.65inch e-Paper (F) 7-Color 2 600×448 114.9 × 85.8 125.4 × 99.5 × 0.91 <35 SPI
5.83inch e-Paper black, white 2 648×480 119.232 × 88.320 125.40 × 99.50 × 1.18 5 SPI
5.83inch e-Paper (B) red, black, white 2 648×480 119.232 × 88.320 125.40 × 99.50 × 1.18 20 SPI
5.83inch e-Paper (C) yellow, black, white 2 600×448 118.80 × 88.26 125.40 × 99.50 × 1.18 26 SPI
6inch HD e-Paper black, white 16 1448×1072 122.40 × 90.60 138.40 × 101.80 × 1.01 <1 Parallel port
7.5inch e-Paper black, white 2 800×480 163.20 × 97.92 170.20 × 111.20 × 1.18 5 SPI
7.5inch HD e-Paper black, white 2 880×528 163.24 × 97.94 170.20 × 111.20 × 1.25 5 SPI
7.5inch e-Paper (B) red, black, white 2 800×480 163.20 × 97.92 170.20 × 111.20 × 1.18 16 SPI
7.5inch HD e-Paper (B) red, black, white 2 880×528 163.24 × 97.94 170.20 × 111.20 × 1.25 21 SPI
7.5inch e-Paper (C) yellow, black, white 2 640×384 163.20 × 97.92 170.20 × 111.20 × 1.18 16 SPI
7.8inch e-Paper black, white 16 1872×1404 158.18 × 118.64 173.80 × 127.60 × 0.78 <1 Parallel port
9.7inch e-Paper black, white 16 1200×825 202.8 × 139.43 218.80 × 156.425 × 1.15 <1 Parallel port
10.3inch e-Paper black, white 16 1872×1404 209.66 × 157.25 216.70 × 174.40 × 0.78 <1 Parallel port
10.3inch e-Paper (D) black, white 16 1872×1404 209.66 × 157.25 227.70 × 165.80 × 0.647 <1 Parallel port
12.48inch e-Paper black, white 2 1304×984 252.98 × 190.90 261.50 × 211.00 × 0.30 <8 SPI
12.48inch e-Paper (B) red, black, white 2 1304×984 252.98 × 190.90 261.50 × 211.00 × 0.30 <16 SPI
13.3inch e-Paper black, white 16 1600×1200 270.40 × 202.80 285.80 × 213.65 × 0.78 <1 Parallel port
e-Paper raw panels comparing

Package Contents

Actual Weight: 0.29 kg

Note: This is a raw display, for easy testing and comparing, please consider the one with driver board: 9.7inch e-Paper HAT

  1. 9.7inch e-Paper x1
