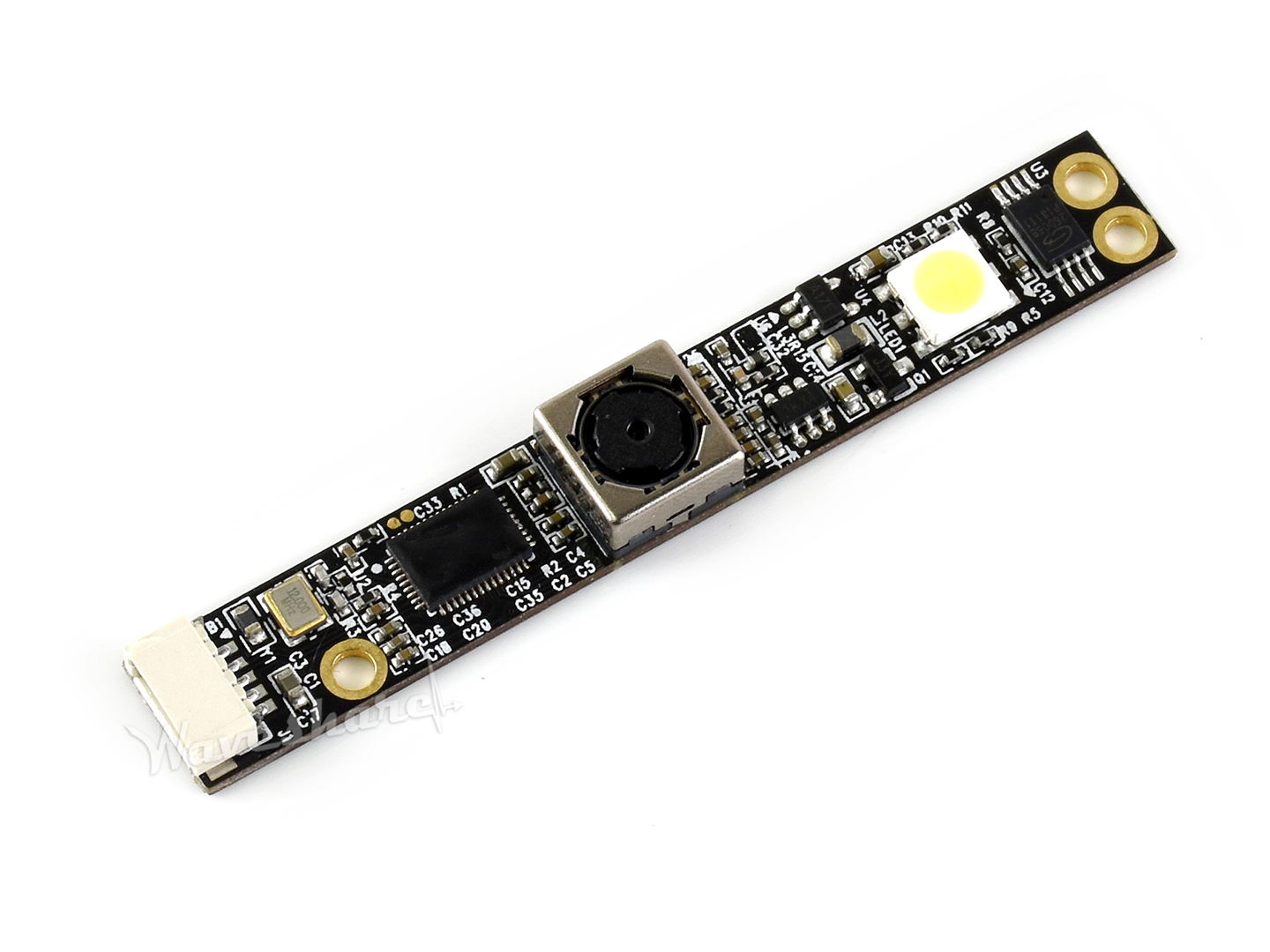

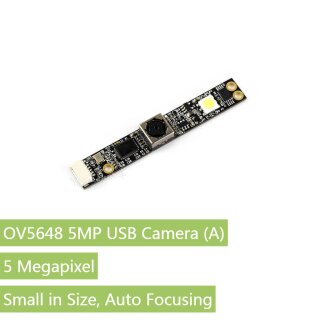

Waveshare 15301 OV5648 5MP USB Camera (A)
Artnr.: WS2-015301
OV5648 5MP USB Camera, High Definition, Small in Size, Auto Focusing, Driver-Free

29,90 € inkl. 19% MwSt.
25,13 € exkl. MwSt.

zzgl. Versand

nicht lieferbar

Beschreibung

Features

  • 5 megapixel OV5648 sensor
  • 2592x1944 resolution
  • USB interface, UVC protocol, auto focusing, driver-free, plug-and-play
  • Small in size, easy to integrate into your project
  • Supports Raspberry Pi and Jetson Nano
  • DSP
    • Automatic white balance (AWB)
    • Automatic exposure (AEC)
    • Automatic gain control (AGC)
  • Camera specifications
    • CCD size: 1/4inch
    • Aperture (F): 2.8
    • Focal Length (EFL): 3.34mm
    • Field of View (Diagonal): 70°
  • Interface: USB2.0
  • Image formats: MJPEG, YUY2
  • Operating temperature: 0°C ~ 50°C
  • Dimension: 9mmx62mm
  • Supported OS: Windows, Linux

Dimensions

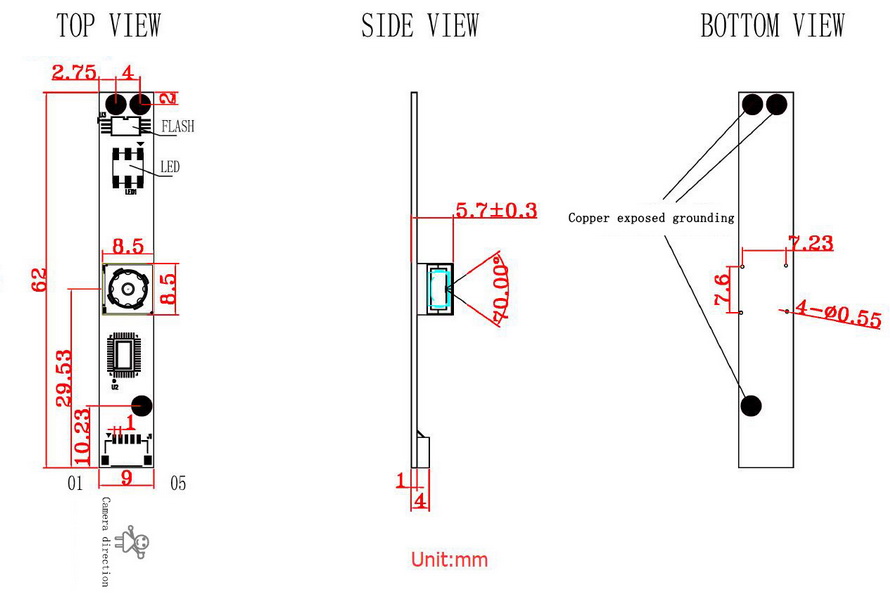

OV5648 5MP USB Camera (A) dimensions

Development Resources

Wiki : www.waveshare.com/wiki/OV5648_5MP_USB_Camera_(A)

Selection Guide

Part Number Pixels Sensor Best Resolution Dimension Field of View Feature
OV2710 2MP USB Camera (A) 2MP OV2710 1920x1080 38mmx38mm 145° Low-light sensitivity
OV5640 5MP USB Camera (A) 5MP OV5640 2592x1944 18×36mm 135° Auto focusing
OV5648 5MP USB Camera (A) 5MP OV5648 2592x1944 9mmx62mm 70° Small in size
IMX335 5MP USB Camera (A) 5MP IMX335 2592x1944 38×38mm 106° Manually focusing
IMX179 8MP USB Camera (A) 8MP IMX179 3288x2512 38mmx38mm 145° HD, Embedded digital mic
IMX258 13MP OIS USB Camera (A) 13MP IMX258 4224×3192 38×35.8mm 127° HD, OIS

Package Contents

  • OV5648 5MP USB Camera (A) x1

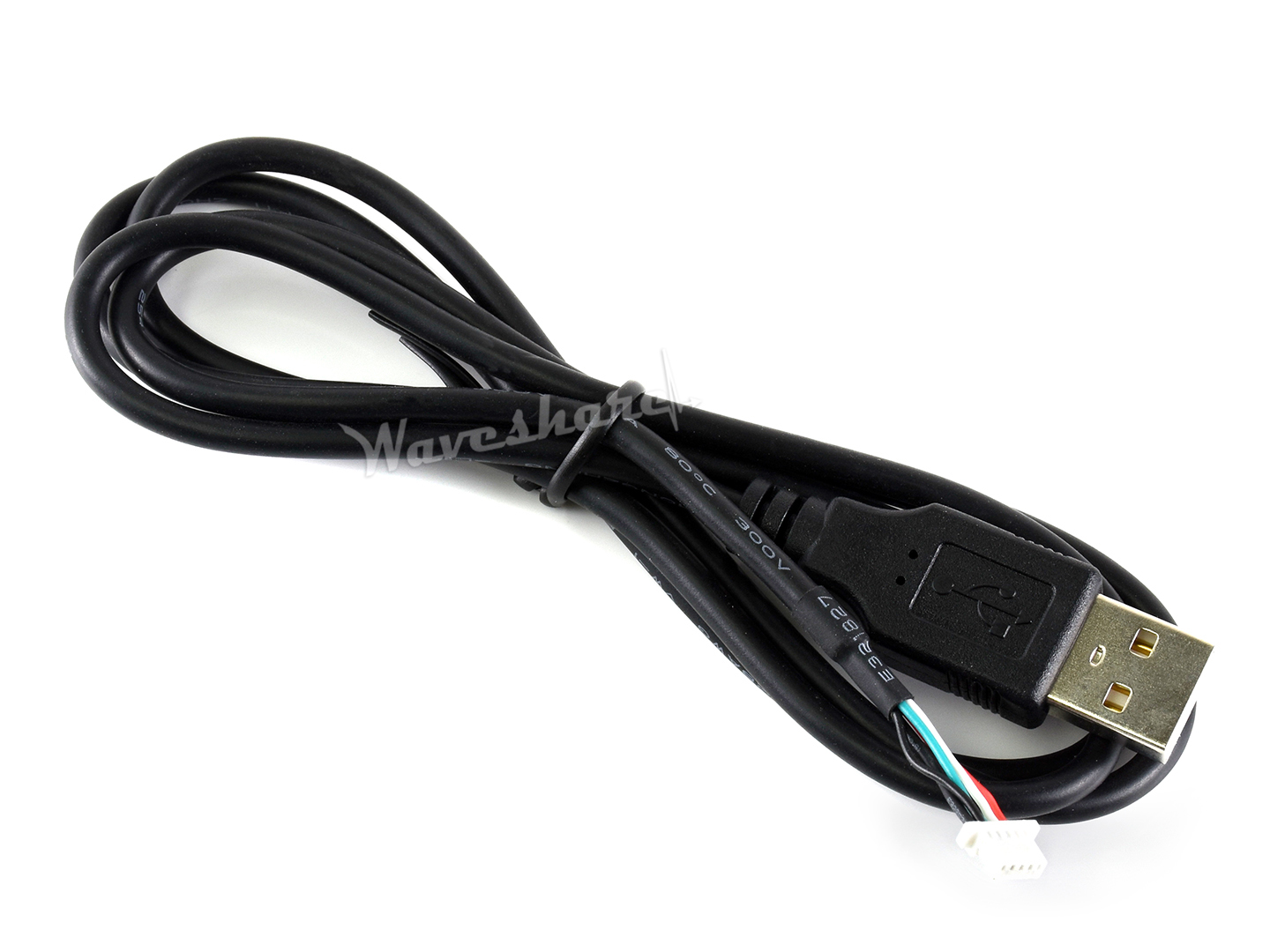

  • USB to 5-pin cable x1
1
2
