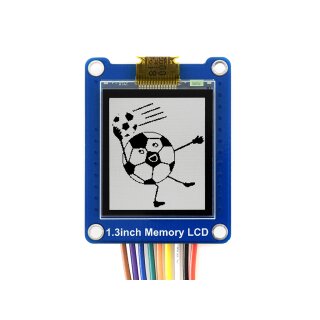

Waveshare 15883 1.3inch Memory LCD
Artnr.: WS3-015883
1.3inch Black/White Bicolor LCD with Embedded Memory, Low Power, Viewable under Strong Light

17,90 € inkl. 19% MwSt.
15,04 € exkl. MwSt.

zzgl. Versand

ab Lager lieferbar

Lieferzeit: 1 - 3 Arbeitstage

Beschreibung

This is a black/white bicolor LCD display module with embedded memory, 1.3inch diagonal, 144x168 resolution, communicating via SPI interface.

It features lower power consumption compared to normal LCDs, and higher refresh rate compared to e-Papers without "ghosting" issue.

Features

  • 144x168 resolution, high contrast rate, clear displaying
  • SPI interface, requires minimum GPIO for controlling
  • Low power consumption, wide viewing angle, still viewable even under sunlight
  • Comes with development resources and manual (examples for Raspberry Pi/Arduino/STM32)

Specifications

  • LCD type: Memory LCD
  • Interface: SPI
  • Display color: black, white
  • Resolution: 144x168
  • Display size: 20.88mm × 24.36mm
  • Operating voltage: 3.3V / 5V
  • Power: 1mW (typ.)

Interface

PIN NO. SYMBOL DESCRIPTION
1 VCC Power (3.3V / 5V input)
2 GND Ground
3 MISO Module SPI data output
4 MOSI Module SPI data input
5 SCLK Module SPI clock input
6 LCD_CS Memory LCD chip selection
7 RAM_CS SPI RAM chip selection
8 DISP Display on/off signal
9 EIN    External Vcom signal

Dimensions

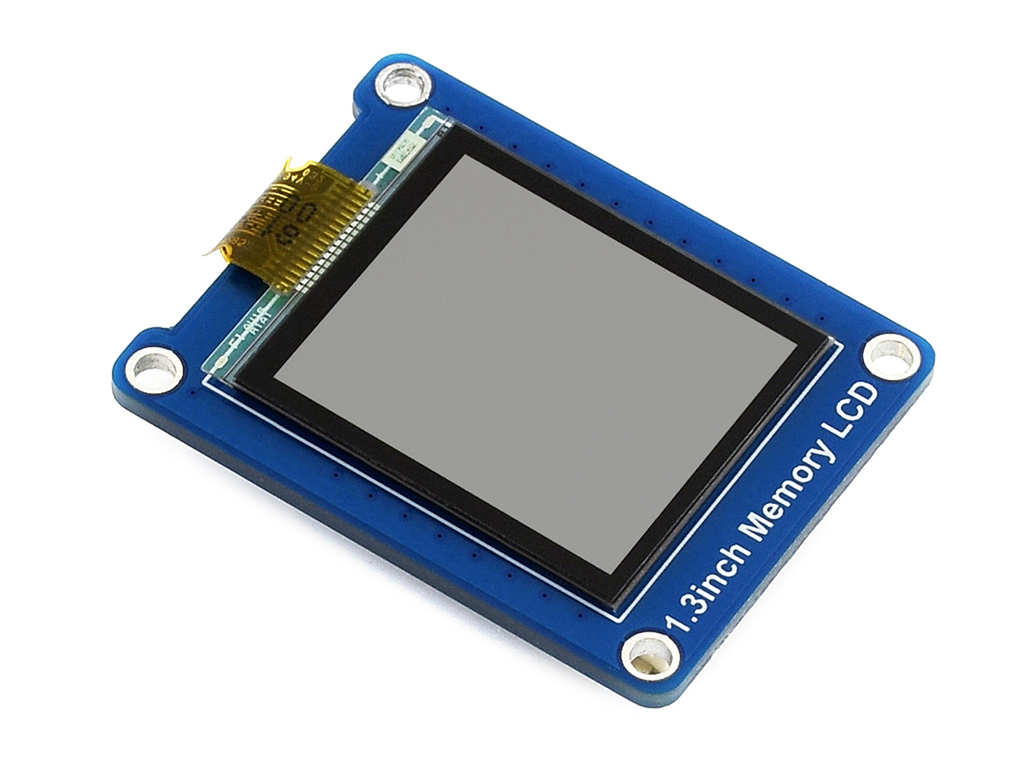

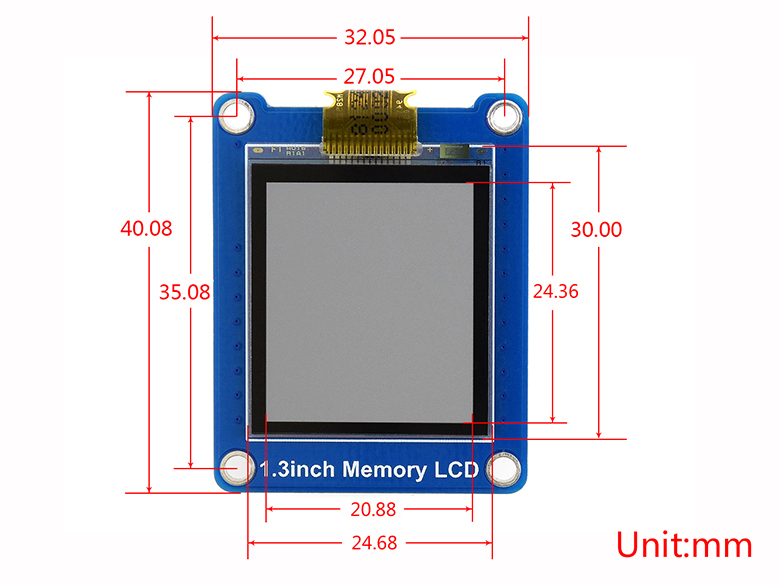

1.3inch Memory LCD dimensions

Development Resources

Wiki : www.waveshare.com/wiki/1.3inch_Memory_LCD

Package Contents

  1. 1.3inch Memory LCD x1

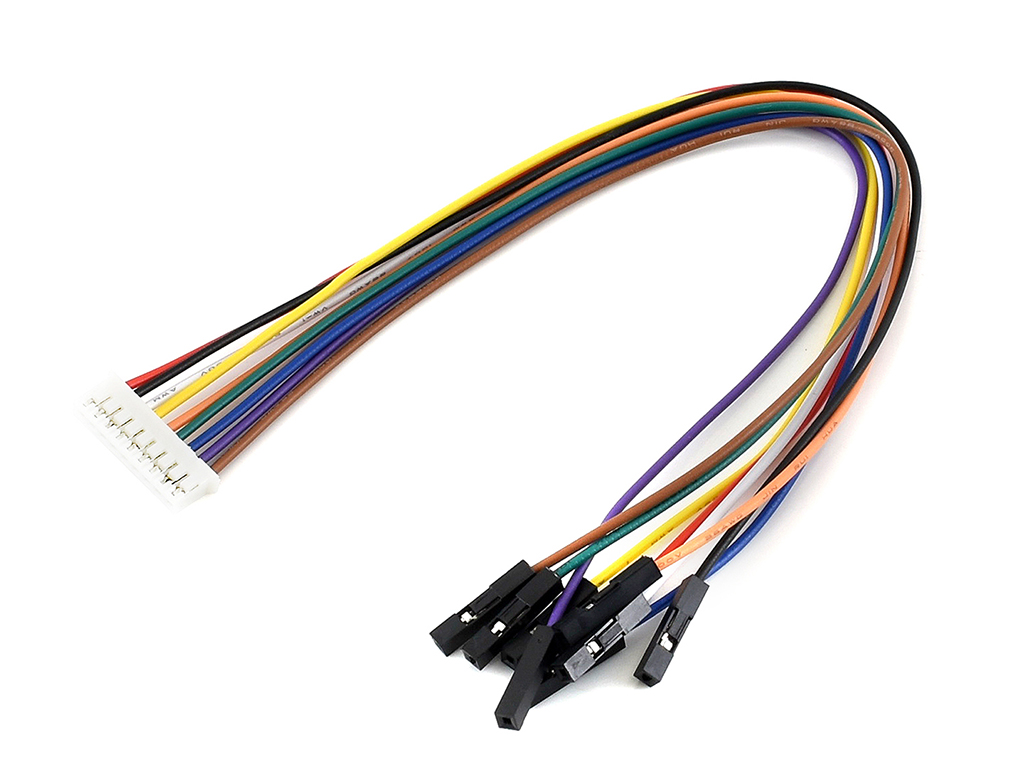

  2. PH2.0 9Pin x1
