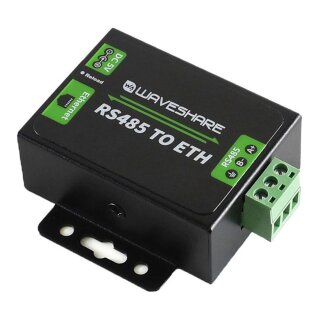

Waveshare 16529 RS485 TO ETH (EU)

Artnr.: WS1-016529
Hersteller: Waveshare

RS485-zu-Ethernet-Konverter, benutzerfreundlich, hohe Geschwindigkeit, geringer Stromverbrauch, hohe Stabilität, aufrüstbar

Variante: 25,90 €mit EU Netzteil

21,90 €ohne Netzteil

25,90 €

inkl. 19% MwSt.

(21,76 € exkl. MwSt.)

zzgl.

ab Lager lieferbar
Lieferzeit: 1 - 3 Arbeitstage (DE - Ausland abweichend)

Comes with US plug power adapter. More options for the power plug: US, EU

The RS485 TO ETH module provides an easy way to communicate between RS485 and RJ45 port Ethernet, it can be configured via webpage.

Features

M0 series 32-bit ARM processor, fast speed, high efficiency
10/100M Auto-MDI/MDIX ethernet interface, regardless of cross-over or straight-through cable
Configurable RS485 baudrate (600bps~230.4Kbps), supports five parity check options: None, Odd, Even, Mark, Space
Available working modes: TCP Server, TCP Client, UDP Server, UDP Client, HTTPD Client (supports GET and POST)
Configurable via webpage, AT commands, serial protocol, and network protocol, provides configuration protocol which can be integrated to your own software
Supports customized heartbeat packets, make sure the connection is truthful, as well as for actively retrieving sensor data
Supports customized registration packets, auto passing the registered packet as identifier after the connection is established, so that different devices can be distinguished
Supports customized webpage, allows user to customize the module configuration page
Supports RFC2217-like protocol, be able to communicate with devices whose serial setting (baudrate, data bit, etc.) may change
KeepAlive mechanism, detects broken connection, auto re-connecting
Supports time-out reboot (no-data reboot), ensures a long-term stable connection, configurable reboot time
Supports DNS domain name resolution, configurable DNS server
Supports DHCP, auto-obtained IP or static IP
Firmware is upgradable via the network
Restore to factory settings via software and/or hardware
Comes with default MAC address, which is customizable
Provided software: module configuration software, TCP/UDP testing tool, VCOM virtual serial port software
Example code: host computer (socket ), VB, C++, Delphi, Android, iOS, etc.

Specifications

Ethernet:
- Connector: 4-pin RJ45
- Communication rate: 10/100Mbps
- Interface protection: 1.5KV electromagnetic isolation
- Protocols: IP, TCP, UDP, ARP, ICMP, DHCP, DNS, HTTPD Client
- TX cache: 6Kbyte
- RX cache: 4Kbyte
RS485:
- Connector: screw terminal (A+, B-, GND)
- Data bit: 5bit, 6bit, 7bit, 8bit
- Stop bit: 1, 2
- Parity bit: None, Odd, Even, Mark, Space
- Baudrate: 600bps~230.4Kbps
- RX cache: 800byte
- Hardware flow control: none
- Interface protection:
  - 2KV ESD protection
  - RS485 pull up/down registers: 2.2KO
Power:
- Power supply: 5.0~7.0V (5V recommended)
- Operating current: 150mA (@5V)
- Power consumption: <1W
- Interface protection: reverse-proof, ESD protection, anti-surge
Environment:
- Operating temperature: -25~75°C
- Storage temperature: -40~105°C

Dimensions

Development Resources

Wiki : www.waveshare.com/wiki/RS485_TO_ETH

Selection Guide

Comparison	UART TO ETH	RS485 TO ETH	RS232/485 TO ETH
Processor	Cortex-M0	Cortex-M0	Cortex-M4 (up to 120MHz frequency)
Ethernet	RJ45 (10/100Mbps self-negotiation)
	Protocol: IP, TCP, UDP, ARP, ICMP, DHCP, DNS, HTTPD Client
	Cache: TX 6Kbyte, RX 4Kbyte		Cache: TX 16Kbyte, RX 16Kbyte
Serial	UART	RS485	RS232+RS485 (allow to work at the same time)
	Baudrate: 600bps~460.8Kbps	Baudrate: 600bps~230.4Kbps
	Hardware flow: NOT supported		Hardware flow: supported
	Data bit: 5, 6, 7, 8
	Stop bit: 1, 2
	Parity bit: None, Even, Odd, Space, Mark
	Cache: RX 800byte		Cache: TX 2Kbyte, RX 2Kbyte
	Framing condition: 4 byte time interval, or 400 byte in length		Framing condition: 4 byte time interval, or customizable 0~1460 byte in length
Features	customized heartbeat packets, customized registration packets, customized webpage, RFC2217-like protocol, KeepAlive, timeout auto reboot, short connection, firmware upgrade via network
Features	Modbus is not supported		Modbus gateway, Websocket (webpage to serial)
Working Modes	TCP Server, TCP Client, UDP Server, UDP Client, HTTPD Client
Client Count	on TCP Server mode, customizable 1~16 Clients		on TCP Server mode, supports 2-ch Socket, 8 Clients per ch
Configuration	Built-in webpage, Host computer config software, Serial commands
Interface Protection	Power: reverse-proof, ESD protection, anti-surge
	Ethernet: 1.5KV electromagnetic isolation
		RS485: 2KV ESD protection, 2.2KΩ pull up/down registers
			lightning-proof, over-current protection
Power Supply	3.3V/5V	5~7V	5~36V
Operating Current	150mA@5V	110mA@5V	86.5mA@5V
Temperature	Operating Temperature: -25~75?		Operating Temperature: -40~85?
Temperature	Storage Temperature: -40~105?
Dimensions	50.5mm × 22.6mm × 15mm	70mm × 63.6mm × 25mm	82.8mm × 85.7mm × 25mm

Package Contents

RS485 TO ETH x1
5V power adapter x1
