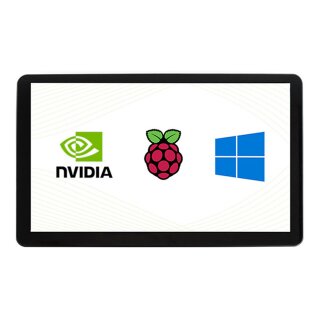

Waveshare 16815 15.6inch HDMI LCD (H) (with case) (no PA)

Waveshare 16815 15.6inch HDMI LCD (H) (with case) (no PA)

Artnr.: WS3-016815
GTIN: 0614961954380
Hersteller: Waveshare

15,6 Zoll kapazitiver Touchscreen LCD (H) mit Gehäuse und gehärteter Glasabdeckung, 1920×1080, HDMI, IPS, Unterstützung verschiedener Geräte und Systeme

Variante: 209 €mit EU Netzteil

205 €ohne Netzteil

205,00 €

inkl. 19% MwSt.

(172,27 € exkl. MwSt.)

ab Lager lieferbar
Lieferzeit: 1 - 3 Arbeitstage (DE - Ausland abweichend)

15.6" HDMI Touch Display

Size15.6"
Resolution1920×1080
Display PortHDMI (with HDCP) / VGA
Display PanelIPS
Viewing Angle178°
Touch TypeCapacitive
Touch Points10-Points
Touch PortUSB
Touch PanelToughened Glass
OSD MenuBrightness/Contrast
SoundHi-Fi Speaker
Audio Output3.5mm Jack
GamingXbox360/PS4/Switch
EnclosurePolycarbonate
CertificationCE

Device & System Support

Raspberry Pi

Supports Raspbian, 10-points touch, driver free Supports Ubuntu / Kali / WIN10 IoT, single point touch, driver free Supports Retropie, driver free

Supports all versions of Raspberry Pi

Jetson Nano

Supports Ubuntu, single point touch, driver free

Supports Windows 10 / 8.1 / 8 / 7, 10-points touch, driver free

Game Console

Xbox360, PS4, Switch...

Connection Examples

Working with Raspberry Pi 4

Working with Raspberry Pi Zero W

Working with AI Computer Jetson Nano

Working with mini PC

Display

IPS Panel

Touch Control

1) up to 10-points touch, depending on the operating system. 2) up to 6H hardness toughened glass panel.

Audio Feature

Enjoy Gaming

Appearance and Dimensions

Resources & Services

Wiki: www.waveshare.com/wiki/15.6inch_HDMI_LCD_(H)_(with_case)

Product Certification

HDMI Certified

* We are an official authorized HDMI Adopter.

CE Certificated

* This display is in compliance with CE standard.

Over a decade: Waveshare grows with display

* Waveshare has been focusing on display design for over 10 years.

Selection Guide

PartNumber	Display				Touch				Audio		Device Support
PartNumber	Resolu-tion	Display Port	Display Panel	View Angle	Touch Type	Touch Port	Toughened Glass Panel	Fully Laminated	Spe-aker	Signal Output	Pi	JETSON NANO	PC
SPI DISPLAYS PROS: low price. CONS: low refresh rate & resolution, supports Raspberry Pi only, requires Raspberry Pi 40PIN GPIO (the SPI bus), poor compatibility with Raspberry Pi system.
3.2inch RPi LCD (C)	320×240	High-Speed SPI	TFT	–	Resistive	SPI	×	×	×	×	√	×	×
3.5inch RPi LCD (B)	480×320	SPI	IPS	160°	Resistive	SPI	×	×	×	×	√	×	×
3.5inch RPi LCD (C)	480×320	High-Speed SPI	TFT	–	Resistive	SPI	×	×	×	×	√	×	×
4inch RPi LCD (C)	480×320	High-Speed SPI	TFT	–	Resistive	SPI	×	×	×	×	√	×	×
DPI DISPLAYS PROS: low price, high refresh rate, multiple resolution support, better compatibility with Raspberry Pi system. CONS: supports Raspberry Pi only, requires Raspberry Pi 40PIN GPIO.
2.8inch DPI LCD	480×640	DPI	IPS	160°	Capacitive	I2C	√	√	×	×	√	×	×
3.5inch DPI LCD	640×480	DPI	IPS	170°	Capacitive	I2C	√	×	×	×	√	×	×
4inch DPI LCD (B)	480×800	DPI	IPS	170°	Capacitive	I2C	√	×	√	√	√	×	×
4inch DPI LCD (C)	720×720	DPI	IPS	170°	Capacitive	I2C	√	√	×	×	√	×	×
5inch DPI LCD	800×480	DPI	IPS	160°	×	×	×	×	×	×	√	×	×
7inch DPI LCD	1024×600	DPI	IPS	170°	×	×	×	×	×	×	√	×	×
DSI DISPLAYS PROS: moderate price, high refresh rate, leaves the Raspberry Pi 40PIN GPIO free, better compatibility with Raspberry Pi system. CONS: only 800×480 resolution is available currently, supports Raspberry Pi only.
4.3inch DSI LCD	800×480	DSI	IPS	160°	Capacitive	I2C	√	×	×	×	√	×	×
4.3inch DSI LCD (with case)	800×480	DSI	IPS	160°	Capacitive	I2C	√	×	×	×	√	×	×
5inch DSI LCD	800×480	DSI	TFT	-	Capacitive	I2C	√	×	×	×	√	×	×
7inch DSI LCD	800×480	DSI	TFT	-	Capacitive	I2C	√	×	×	×	√	×	×
7inch DSI LCD (with case A)	800×480	DSI	TFT	-	Capacitive	I2C	√	×	×	×	√	×	×
HDMI / TYPE-C DISPLAYS PROS: high refresh rate, multiple resolution support, multiple devices support, leaves the Raspberry Pi 40PIN GPIO free, better compatibility with Raspberry Pi system. CONS: somewhat costly.
3.5inch HDMI LCD	480×320	HDMI	IPS	160°	Resistive	SPI	×	×	×	√	√	×	Display ONLY
4inch HDMI LCD	480×800	HDMI	IPS	170°	Resistive	SPI	×	×	×	×	√	×	Display ONLY
4inch HDMI LCD (H)	480×800	HDMI	IPS	170°	Resistive	SPI	×	×	×	√	√	×	Display ONLY
4.3inch HDMI LCD (B)	800×480	HDMI	IPS	160°	Capacitive	USB	×	×	×	√	√	√	√
5inch HDMI LCD	800×480	HDMI	TFT	–	Resistive	SPI	×	×	×	×	√	×	×
5inch HDMI LCD (with case)	800×480	HDMI	TFT	–	Resistive	SPI	×	×	×	×	√	×	×
5inch HDMI LCD (B)	800×480	HDMI	TFT	–	Resistive	USB	×	×	×	×	√	×	√
5inch HDMI LCD (B) (with case)	800×480	HDMI	TFT	–	Resistive	USB	×	×	×	×	√	×	√
5inch HDMI LCD (G)	800×480	HDMI/VGA	TFT	–	Resistive	USB	×	×	×	√	√	×	√
5inch HDMI LCD (H)	800×480	HDMI/VGA	TFT	–	Capacitive	USB	√	×	×	√	√	√	√
5inch HDMI LCD (H) V4	800×480	HDMI	TFT	–	Capacitive	USB	√	×	×	×	√	×	√
5inch HDMI AMOLED	960×544	HDMI	AMOLED	170°	Capacitive	USB	√	×	×	√	√	√	√
5.5inch HDMI AMOLED	1080×1920	HDMI	AMOLED	170°	Capacitive	USB	√	×	×	√	√	√	√
5.5inch HDMI AMOLED (with case A)	1080×1920	HDMI	AMOLED	170°	Capacitive	USB	√	×	×	√	√	×	×
5.5inch HDMI AMOLED (with case B)	1080×1920	HDMI	AMOLED	170°	Capacitive	USB	√	×	×	√	√	√	√
7inch HDMI LCD	1024×600	HDMI	IPS	170°	Resistive	SPI	×	×	×	×	√	×	Display ONLY
7inch HDMI LCD (B)	800×480	HDMI	TFT	–	Capacitive	USB	×	×	×	×	√	×	√
7inch HDMI LCD (B) (with case)	800×480	HDMI	TFT	–	Capacitive	USB	×	×	×	×	√	×	√
7inch HDMI LCD (C)	1024×600	HDMI	IPS	170°	Capacitive	USB	×	×	×	×	√	×	√
7inch HDMI LCD (C) (with case)	1024×600	HDMI	IPS	170°	Capacitive	USB	×	×	×	×	√	×	√
7inch HDMI LCD (H)	1024×600	HDMI/VGA	IPS	170°	Capacitive	USB	×	×	×	√	√	√	√
7inch HDMI LCD (H) (with case)	1024×600	HDMI/VGA	IPS	170°	Capacitive	USB	√	×	×	√	√	√	√
7inch FHD Monitor	1080×1920	HDMI	IPS	170°	Capacitive	USB	√	√	√	√	√	√	√
7HP-CAPQLED	1024×600	HDMI	IPS (QLED)	170°	Capacitive	USB	√	×	×	√	√	√	√
9HP-CAPQLED	1280×720	HDMI	IPS (QLED)	170°	Capacitive	USB	√	×	×	√	√	√	√
10.1HP-CAPQLED	1280×720	HDMI	IPS (QLED)	170°	Capacitive	USB	√	×	×	√	√	√	√
7.9inch HDMI LCD	400×1280	HDMI	IPS	170°	Capacitive	USB	√	×	×	√	√	√	√
9inch 2560x1600 Monitor	2560×1600	HDMI	IPS	178°	Capacitive	USB	√	√	√	√	√	√	√
10.1inch HDMI LCD	1024×600	HDMI	IPS	170°	Resistive	SPI	×	×	×	×	√	×	Display ONLY
10.1inch HDMI LCD (H) (with case)	1024×600	HDMI/VGA	TFT	–	Capacitive	USB	×	×	×	×	√	√	√
10.1inch HDMI LCD (E)	1024×600	HDMI	IPS	170°	Capacitive	USB	√	√	×	√	√	√	√
10.1inch HDMI LCD (B) (with case)	1280×800	HDMI	IPS	170°	Capacitive	USB	√	×	×	×	√	×	√
11.6inch HDMI LCD (H)	1920×1080	HDMI	IPS	178°	Capacitive	USB	√	√	×	√	√	√	√
11.6inch HDMI LCD (H) (with case)	1920×1080	HDMI/VGA	IPS	178°	Capacitive	USB	√	√	√	√	√	√	√
11.9inch HDMI LCD	320×1480	HDMI	IPS	170°	Capacitive	USB	√	×	×	√	√	√	√
12.5inch FHD Monitor	1920×1080	HDMI/Type-C	IPS	178°	Capacitive	Type-C / USB	√	×	√	√	√	√	√
13.3inch HDMI LCD (H)	1920×1080	HDMI	IPS	178°	Capacitive	USB	√	×	×	√	√	√	√
13.3inch HDMI LCD (H) (with case)	1920×1080	HDMI/VGA	IPS	178°	Capacitive	USB	√	×	√	√	√	√	√
13.3inch HDMI LCD (H) (with case) V2	1920×1080	HDMI/VGA	IPS	178°	Capacitive	USB	√	×	√	√	√	√	√
15.6inch HDMI LCD	1920×1080	HDMI	IPS	178°	Capacitive	USB	√	×	×	√	√	√	√
15.6inch HDMI LCD (H) (with case)	1920×1080	HDMI/VGA	IPS	178°	Capacitive	USB	√	×	√	√	√	√	√
15.6inch FHD Monitor	1920×1080	HDMI/Type-C	IPS	178°	Capacitive	Type-C / USB	√	×	√	√	√	√	√
