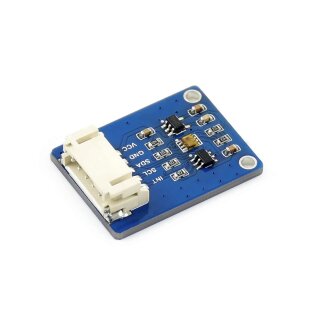

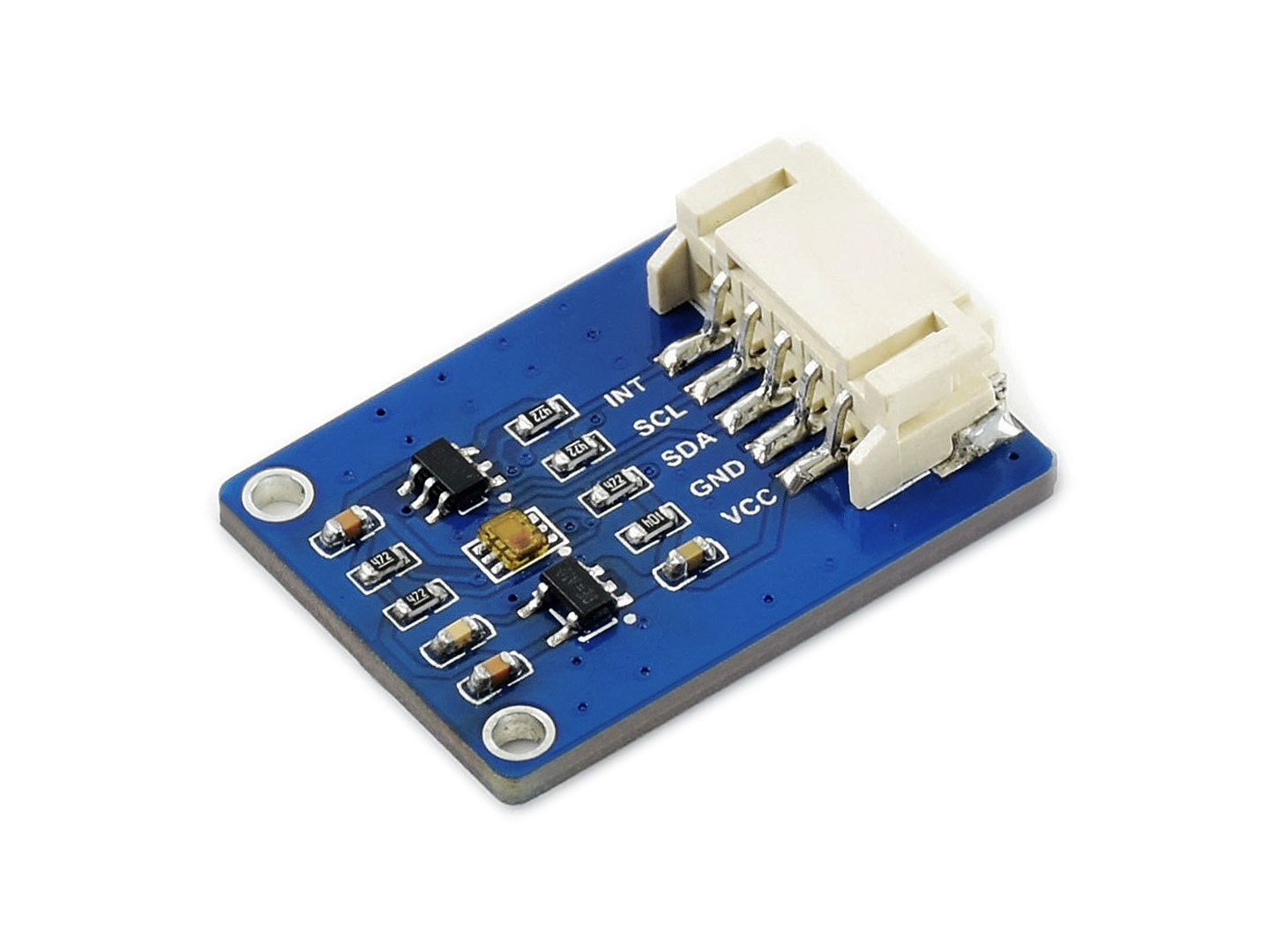

Waveshare 17146 TSL25911 Light Sensor
Artnr.: WS1-017146
TSL25911 Hochempfindlicher digitaler Umgebungslichtsensor, großer Dynamikbereich, I2C-Schnittstelle

4,50 € inkl. 19% MwSt.
3,78 € exkl. MwSt.

zzgl. Versand

10+ ab Lager lieferbar

Lieferzeit: 1 - 3 Arbeitstage

Beschreibung

This is a high sensitivity digital ambient light sensor module based on TSL25911, features 600M:1 wide dynamic range, detects light intensity up to 88000Lux, controlled via I2C interface, low power consumption. It is capable of operating across various light environment.

Features

  • Adopts TSL25911FN, measures infrared plus visible light (wider range than TSL2561)
  • Embedded ADC, direct light intensity signal output to I2C interface, less noise jamming
  • High sensitivity up to 188uLux, wide dynamic range up to 600M:1
  • Embedded infrared-responding photodiode, allows precise measuring even on strong infrared noise environment
  • Provides interrupt output with programmable upper and lower thresholds
  • Onboard voltage translator, compatible with 3.3V/5V operating voltage
  • Comes with development resources and manual (examples for Raspberry Pi/Arduino/STM32)

Specifications

  • Light sensor: TSL25911FN
  • Communication interface: I2C (constant address: 0x29)
  • Effective range: 0~88000Lux
  • Operating voltage: 3.3V/5V
  • Dimensions: 27mm × 20mm
  • Mounting hole size: 2.0mm

Pinouts

In the case of working with MCU:

  • VCC ? 3.3V / 5V
  • GND ? GND
  • SDA ? MCU.I2C data line
  • SCL ? MCU.I2C clock line
  • INT ? interrupt output, optional

Example

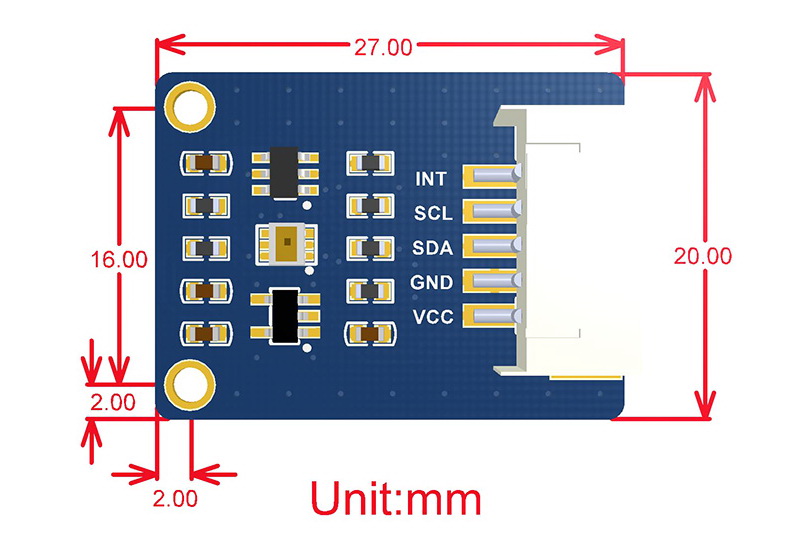

Dimension

Development Resources

Wiki : www.waveshare.com/wiki/TSL25911_Light_Sensor

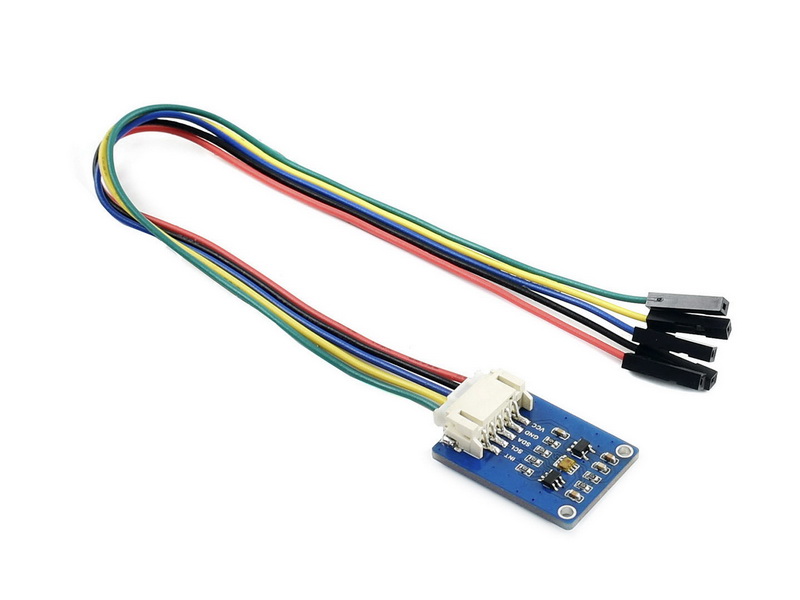

Package Contents

  1. TSL25911 Light Sensor x1
  2. PH2.0 5PIN wire x1
1
2

Versandgewicht: 0,01 Kg
