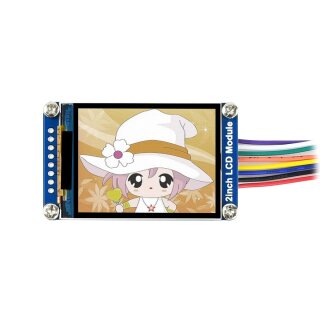

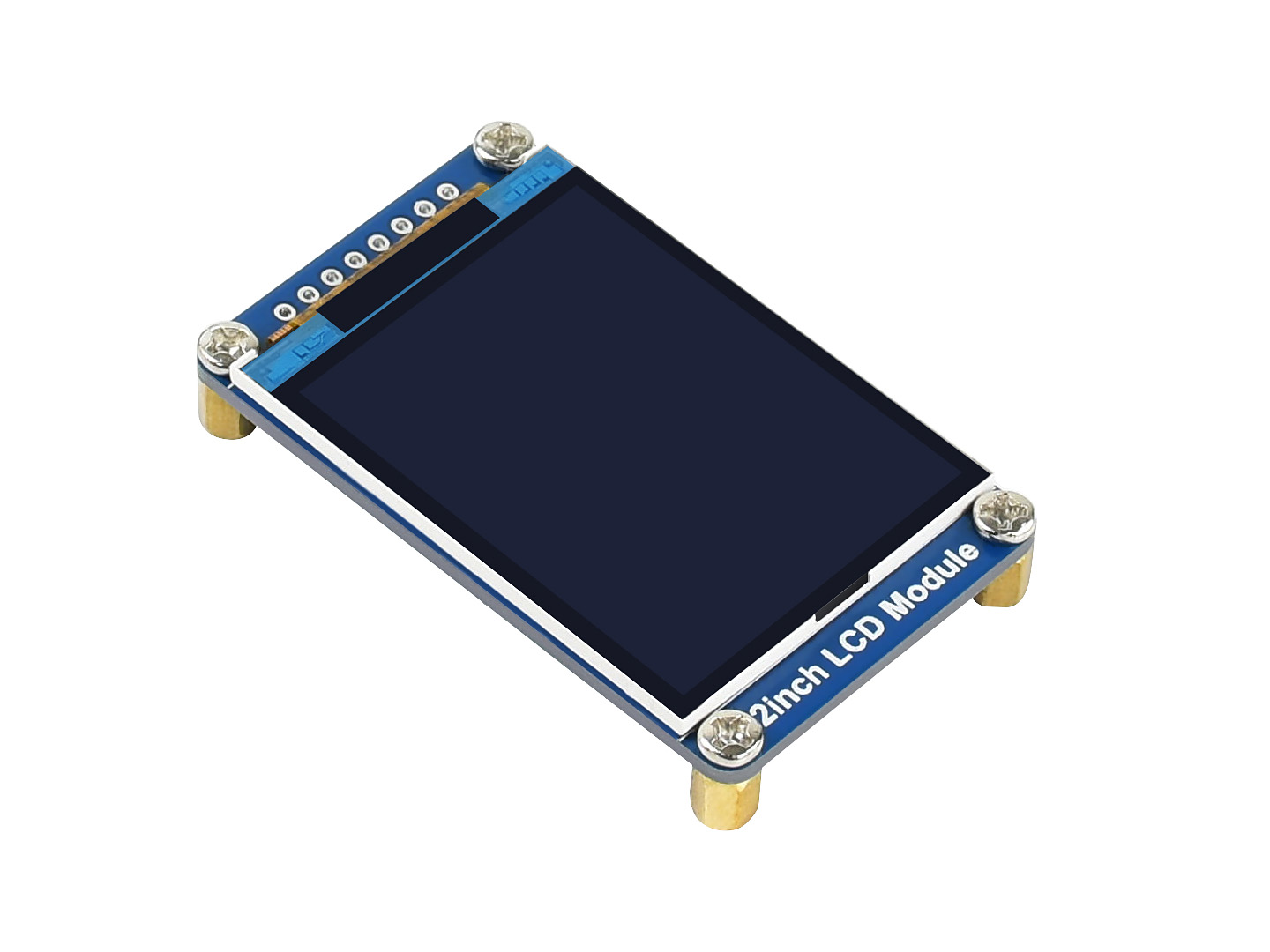

Waveshare 17344 2inch LCD Module
Artnr.: WS3-017344
2-Zoll-LCD-Anzeigemodul, IPS-Bildschirm, 240×320 Auflösung, SPI-Schnittstelle

10,90 € inkl. 19% MwSt.
9,16 € exkl. MwSt.

zzgl. Versand

100+ ab Lager lieferbar

Lieferzeit: 1 - 3 Arbeitstage

Beschreibung

This is a general LCD display Module, IPS screen, 2inch diagonal, 240×320 resolution, with embedded controller, communicating via SPI interface.

Features

  • SPI interface, requires minimum GPIO for controlling
  • Comes with development resources and manual (examples for Raspberry Pi/Jetson Nano/Arduino/STM32)

Specifications

  • Driver: ST7789
  • Interface: SPI
  • Display color: RGB, 262K color
  • Resolution: 240×320
  • Backlight: LED
  • Operating voltage: 3.3V

Interface

SYMBOL DESCRIPTION
VCC Power (3.3V input)
GND Ground
DIN SPI data input
CLK SPI clock input
CS Chip selection, low active
DC Data/Command selection (high for data, low for command)
RST Reset, low active
BL Backlight

Dimensions

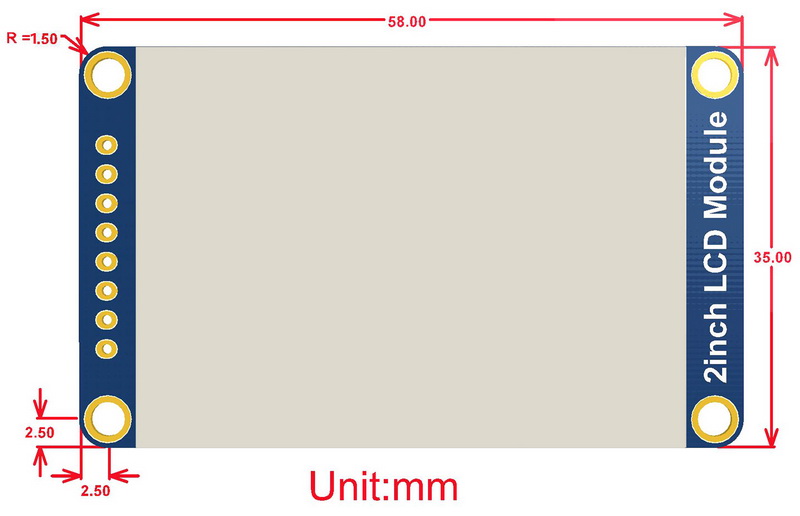

2inch LCD Module dimensions

Development Resources

Wiki : www.waveshare.com/wiki/2inch_LCD_Module

Selection Guide

Part Number Type Color Resolution Display Size (mm×mm) Interfaces Driver Dimension (mm×mm) Pinheader
0.91inch OLED Module OLED White 128×32 22.38×5.58 I2C SSD1306 36.0×12.5 PH2.0 connector
0.95inch RGB OLED (A) OLED 65K colorful 96×64 20.14×13.42 SPI(4-wire SPI) SSD1331 31.7×37.0 angled/horizontal
0.95inch RGB OLED (B) OLED 65K colorful 96×64 20.14×13.42 SPI(4-wire SPI) SSD1331 31.7×37.0 straight/vertical
0.96inch LCD Module IPS 65K colorful 160×80 21.70×10.80 4-wire SPI ST7735S 32.5×26.0 PH2.0 connector
0.96inch OLED (A) OLED 1/4 yellow section, 3/4 blue section 128×64 21.7×11.2 3-wire SPI, 4-wire SPI, I2C SSD1306 33.0×33.5 angled/horizontal
0.96inch OLED (B) OLED 1/4 yellow section, 3/4 blue section 128×64 21.7×11.2 3-wire SPI, 4-wire SPI, I2C SSD1306 33.0×33.5 straight/vertical
1.14inch LCD Module IPS 65K colorful 240×135 24.91×14.86 4-wire SPI ST7789 35.0×32.0 PH2.0 connector
1.28inch LCD Module IPS 65K colorful 240×240 Φ32.4mm 4-wire SPI GC9A01 40.4×37.5 Φ37.5 PH2.0 connector
1.3inch LCD Module IPS 65K colorful 240×240 23.40×23.40 4-wire SPI ST7789 45.0×31.0 PH2.0 connector
1.3inch OLED (A) OLED Blue 128×64 29.42×14.7 3-wire SPI, 4-wire SPI, I2C SH1106 40.5×37.5 angled/horizontal
1.3inch OLED (B) OLED Blue 128×64 29.42×14.7 3-wire SPI, 4-wire SPI, I2C SH1106 40.5×37.5 straight/vertical
1.3inch OLED Module (C) OLED White 64×128 14.70×29.42 4-wire SPI, I2C SH1107 30.0×39.5 PH2.0 connector
1.5inch OLED Module OLED White (16 gray scale) 128×128 26.86×26.86 4-wire SPI, I2C SSD1327 44.5×37.0 PH2.0 connector
1.5inch RGB OLED Module OLED 65K colorful 128×128 26.86×26.86 3-wire SPI, 4-wire SPI SSD1351 44.5×37.0 PH2.0 connector
1.54inch LCD Module IPS 65K colorful 240×240 27.72×27.72 4-wire SPI ST7789 50.0×35.0 PH2.0 connector
1.8inch LCD Module TFT 65K colorful 128×160 34.50×28.30 4-wire SPI ST7735S 56.5×34.0 PH2.0 connector
2inch LCD Module IPS 262K colorful 240×320 30.60×40.80 4-wire SPI ST7789 58.0×35.0 PH2.0 connector
2.4inch LCD Module TFT 65K colorful 240×320 36.72×48.96 4-wire SPI ILI9341 70.5×43.3 PH2.0 connector

Note: the 0.96inch OLED consists of 1/4 yellow upper section and 3/4 blue lower section, not a regular dual-color display.

Package Contents

  1. 2inch LCD Module x1
  2. PH2.0 20cm 8Pin x1
