Waveshare 18154 25mm Telephoto Lens for Pi
Beschreibung
25mmTelephotoLens

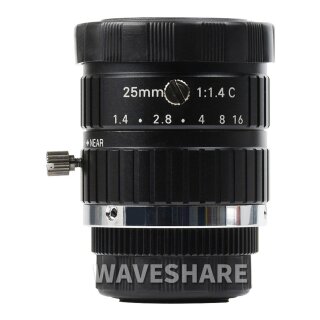

25mm C-mount Telephoto lens for Raspberry Pi High Quality Camera
shorten the distance
25mm focal length high definition telephoto lens, capturing every tiny details
Multi field angle options
Brings the beautiful world into your vision

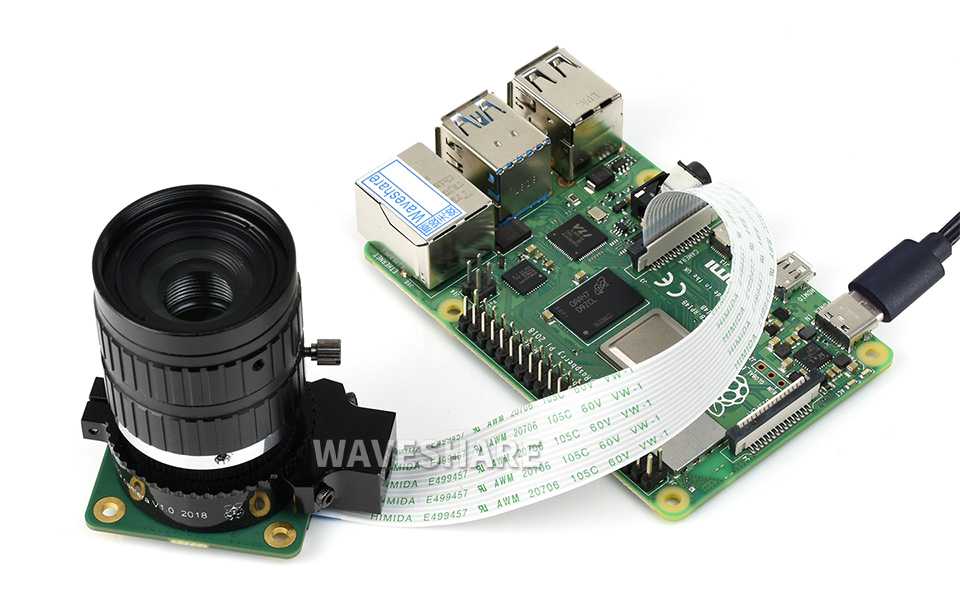

Working with Raspberry Pi
- Raspberry Pi, and High Quality Camera in the photos are NOT included
- To use with Raspberry Pi Zero, you need to buy an additional Raspberry Pi Zero v1.3 Camera Cable
Lens Selection
 6mm Wide Angle Lens
|
 16mm Telephoto Lens
|
 25mm Telephoto Lens
|
 35mm Telephoto Lens
|
 8-50mm Zoom Lens
|
|
| Image format | 1/2" | 1" | 2/3" | 1" | 1/2.3" |
|---|---|---|---|---|---|
| Focal length | 6mm | 16mm | 25mm | 35mm | 8-50mm |
| Aperture | F1.2 | F1.4-16 | F1.4-16 | F1.7-16 | F1.4 |
| Mount | CS-mount | C-mount | |||

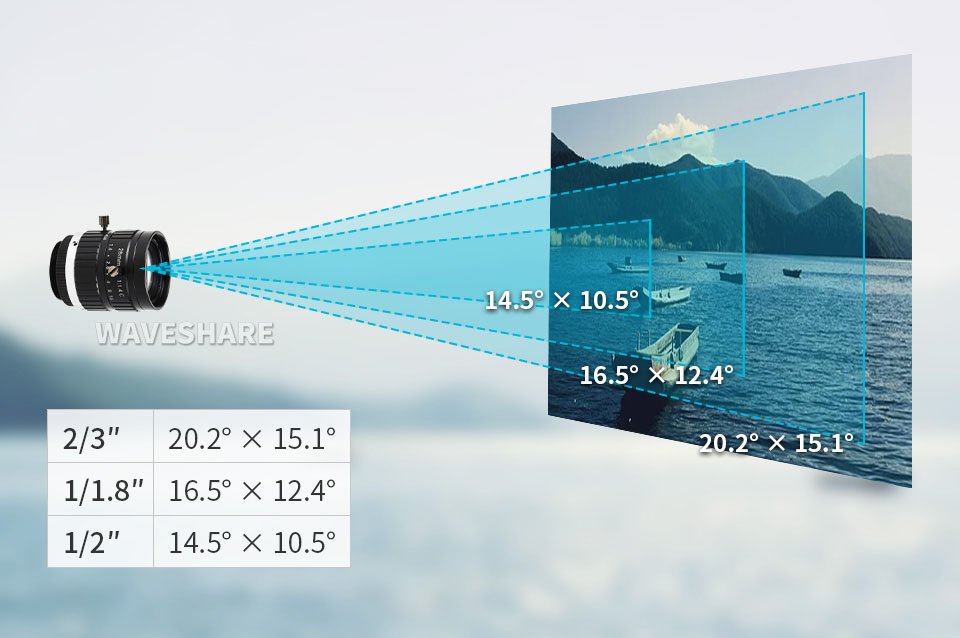

| Angle of view | 63° | 1" 44.6° × 33.6° 2/3" 30.0° × 23.2° 1/1.8" 24.7° × 18.6° 1/2" 21.8° ×16.4° | 2/3" 20.2° × 15.1° 1/1.8" 16.5° × 12.4° 1/2" 14.5° × 10.5° | 1" 20.9° × 15.8° 2/3" 14.4° × 10.8° 1/2" 10.5° × 7.9° | 45°-5.35° |
| Back focus | 7.53mm | 17.53mm | |||
| Optical length | - | 67.53mm | - | - | - |
| Distortion | - | 1"(-0.7%) 1/2"(-0.5%) 1/3"(-0.15%) | 0.05% | 0.35% | - |
| M.O.D. | 0.20m | 0.20m | 0.25m | 0.30m | 0.20m |
| Dimensions | Φ30.00 × 34.00mm | Φ39.00 × 50.00mm | Φ34.00 × 34.00mm | Φ35.00 × 34.00mm | Φ40.00×68.30mm |
| Operation | Manual aperture adjustment | ||||
| Weight | 53g | 133.7g | 82g | 78g | 148g |
Package Contents

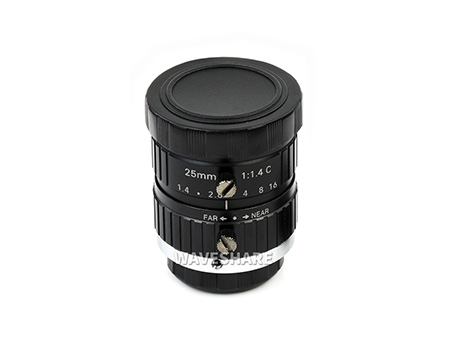

- 25mm Telephoto Lens for Pi

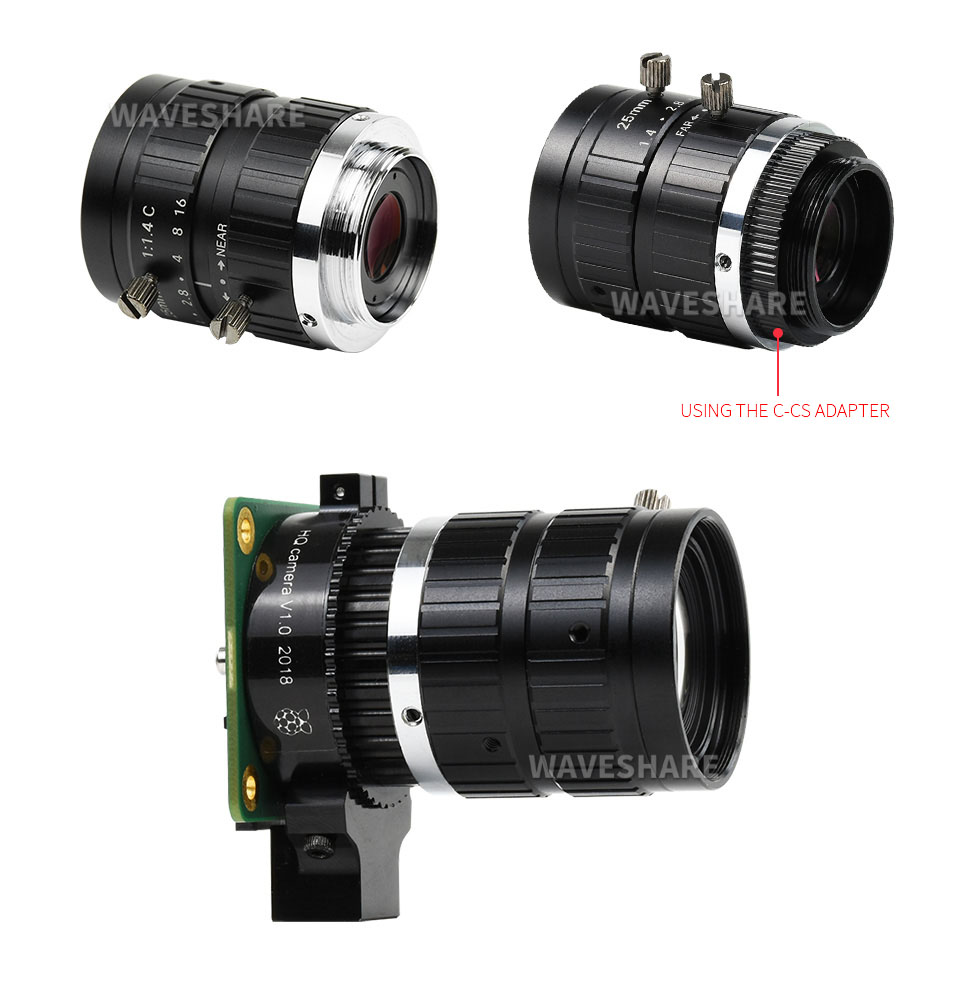

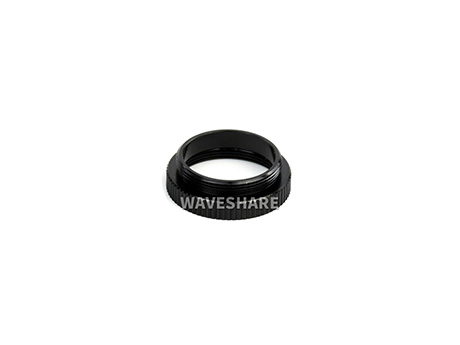

- C-CS adapter
1
2
| Versandgewicht: | 0,15 Kg |
