Waveshare 18245 8-50mm Zoom Lens for Pi
Beschreibung
8-50mmZoomLens
8-50mm C-mount Zoom lens for Raspberry Pi High Quality Camera
Flexible zoom in & out
8-50mm adjustable focal length, flexible photo composition at your will
Adjustable focal length

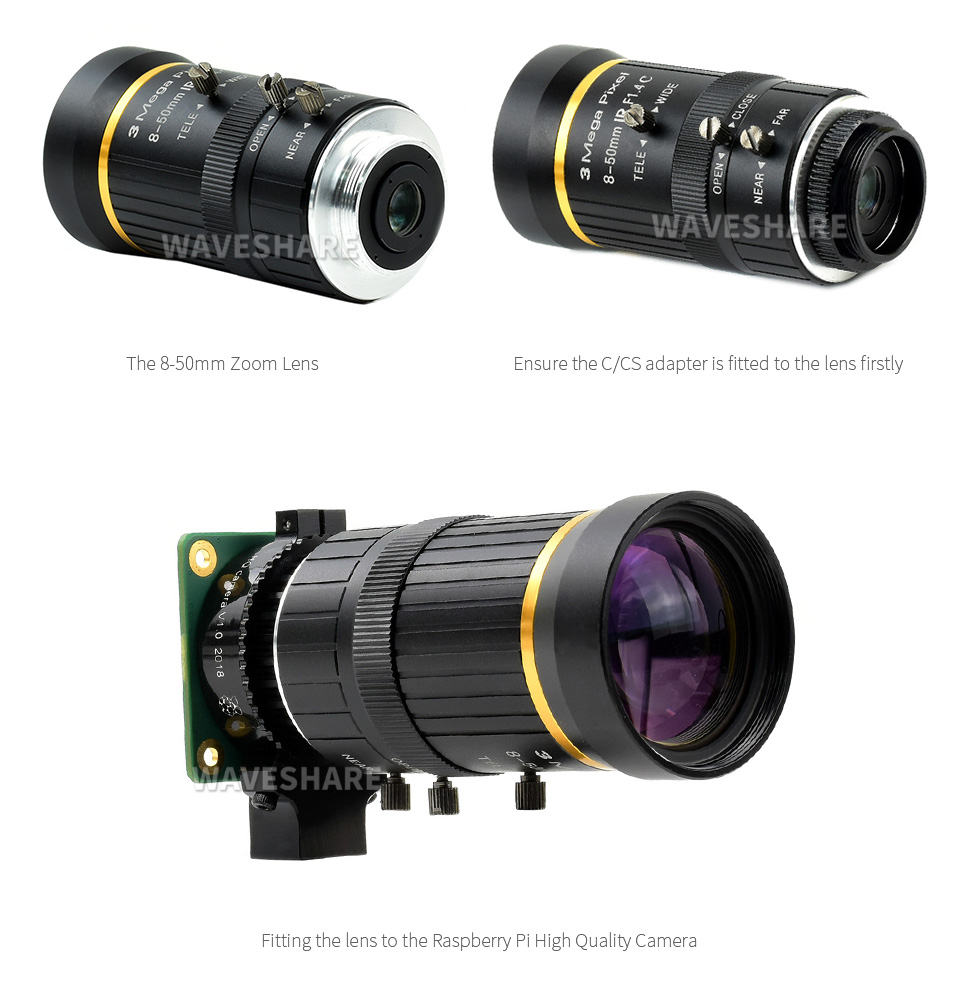

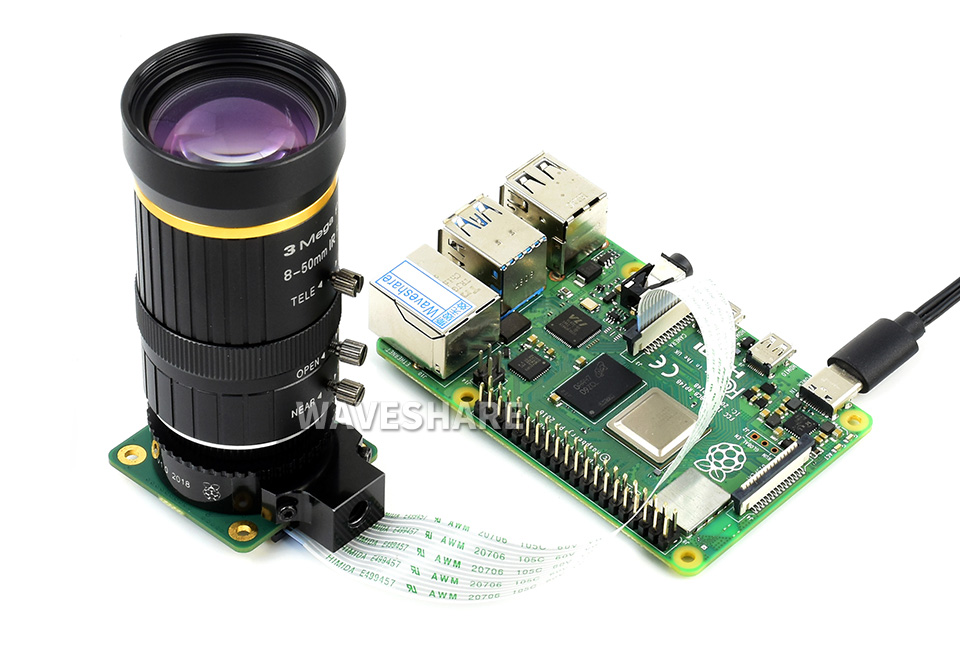

Working with Raspberry Pi
- Raspberry Pi, and High Quality Camera in the photos are NOT included

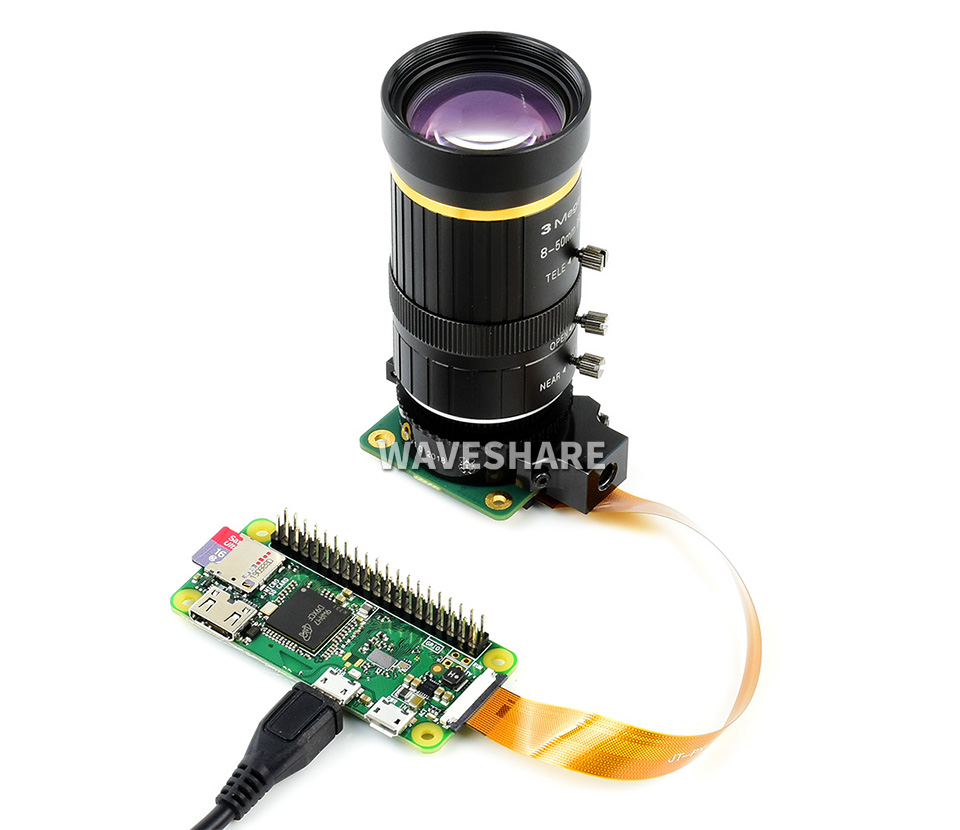

- To use with Raspberry Pi Zero, you need to buy an additional Raspberry Pi Zero v1.3 Camera Cable

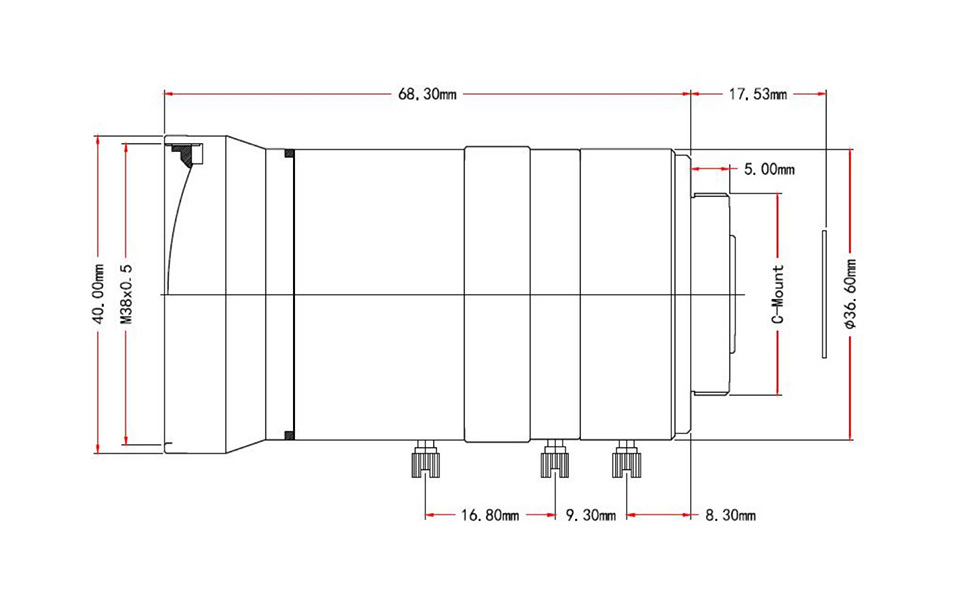

Outline Dimensions
Lens Selection
 6mm Wide Angle Lens
|
 16mm Telephoto Lens
|
 25mm Telephoto Lens
|
 35mm Telephoto Lens
|
 8-50mm Zoom Lens
|
|
| Image format | 1/2" | 1" | 2/3" | 1" | 1/2.3" |
|---|---|---|---|---|---|
| Focal length | 6mm | 16mm | 25mm | 35mm | 8-50mm |
| Aperture | F1.2 | F1.4-16 | F1.4-16 | F1.7-16 | F1.4 |
| Mount | CS-mount | C-mount | |||
| Angle of view | 63° | 1" 44.6° × 33.6° 2/3" 30.0° × 23.2° 1/1.8" 24.7° × 18.6° 1/2" 21.8° ×16.4° | 2/3" 20.2° × 15.1° 1/1.8" 16.5° × 12.4° 1/2" 14.5° × 10.5° | 1" 20.9° × 15.8° 2/3" 14.4° × 10.8° 1/2" 10.5° × 7.9° | 45°-5.35° |
| Back focus | 7.53mm | 17.53mm | |||
| Optical length | - | 67.53mm | - | - | - |
| Distortion | - | 1"(-0.7%) 1/2"(-0.5%) 1/3"(-0.15%) | 0.05% | 0.35% | - |
| M.O.D. | 0.20m | 0.20m | 0.25m | 0.30m | 0.20m |
| Dimensions | Φ30.00 × 34.00mm | Φ39.00 × 50.00mm | Φ34.00 × 34.00mm | Φ35.00 × 34.00mm | Φ40.00×68.30mm |
| Operation | Manual aperture adjustment | ||||
| Weight | 53g | 133.7g | 82g | 78g | 148g |
Package Contents
- 8-50mm Zoom Lens for Pi
- C-CS adapter
