Waveshare 19622 Pico-SIM7020E-NB-IoT
Artnr.: WS1-019622
SIM7020E NB-IoT Modul für Raspberry Pi Pico, geeignet für Asien, Europa, Afrika, Australien

21,90 € inkl. 19% MwSt.
18,40 € exkl. MwSt.

zzgl. Versand

100+ ab Lager lieferbar

Lieferzeit: 1 - 3 Arbeitstage

Beschreibung

Prohibited by the module manufacturer SIMCOM, we're not allowed to ship this product, or to provide any tech support, to the following countries/regions: Iran, North Korea, Cuba, Sudan, Syrian.

SIM7020E NB-IoT module for Pico

B1/B3/B5/B8/B20/B28 frequency band

Features at a glance

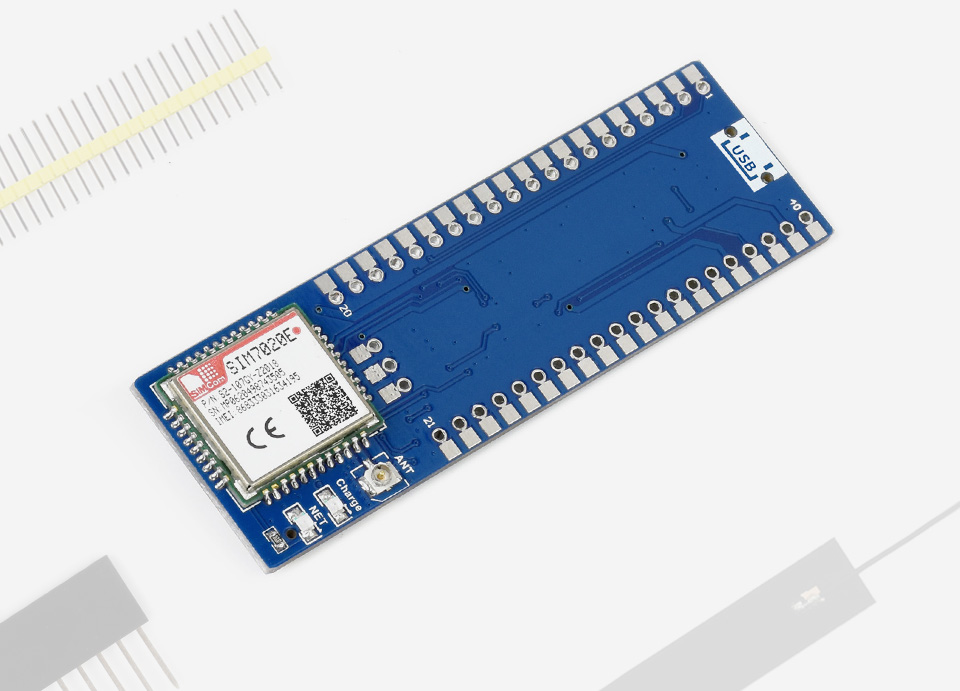

The Pico-SIM7020E-NB-IoT is an NB-IoT (NarrowBand-Internet of Things) module designed for Raspberry Pi Pico. It supports multiple NB-IoT frequency band, can be controlled via serial AT commands, and supports communication protocols like HTTP/MQTT/LWM2M/COAP, etc. Due to the advantages of low delay, low power, low cost, and wide coverage, it is the ideal choice for IoT applications such as intelligent instruments, asset tracking, remote monitoring, and so on.

  • Standard Raspberry Pi Pico header, supports Raspberry Pi Pico series boards

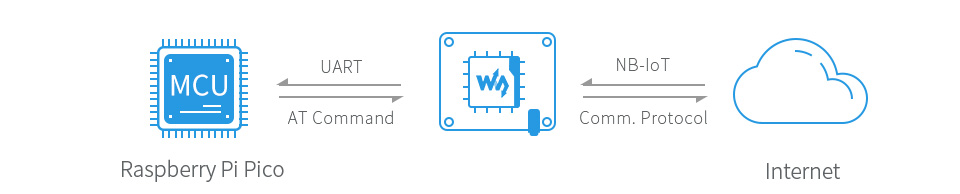

  • UART communication, serial AT commands control, multiple communication protocols support, multiple cloud platform support
  • Integrates 3.7V Li-po battery connector and recharge circuit, allows being powered from external rechargeable Li-po battery, or recharging it in turn
  • 2x LED indicators, for monitoring the module operating status
  • Onboard Nano SIM card slot for NB-IoT specific card
  • Comes with development resources and manual (MicroPython examples)

Specifications

SIM7080G SIM7020E
Applicable region global applicable Asia, Europe, Africa, Australia
Frequency band
NB-IoT B1/B2/B3/B4/B5/B8/B12/B13/B18/B19/ B20/B25/B26/B28/B66/B71/B85 LTE-FDD: B1/B3/B5/B8/B20/B28
Cat-M B1/B2/B3/B4/B5/B8/B12/B13/B14/B18/ B19/B20/B25/B26/B27/B28/B66/B85 N/A
GNSS GPS, GLONASS, BeiDou, Galileo N/A
Data rate
NB-IoT(Kbps) 136(DL)/150(UL) 26.15(DL)/62.5(UL)
Cat-M(Kbps) 589(DL)/1119(UL) -
Others
Communication protocol TCP/UDP/HTTP/HTTPS/TLS/DTLS/PING/LWM2M/COAP/MQTT...
Power supply External Li-po battery OR Raspberry Pi Pico USB port
Battery interface 3.7V ~ 4.2V
Logic level 3.3V
Module standalone current Idle mode: 10mA Idle mode: 5.6mA
Sleep mode: 1.2mA Sleep mode: 0.4mA
PSM mode: 3.2uA PSM mode: 3.4uA
Indicator NET: network indicator Charge: recharge indicator
Switch Li-po battery power supply switch
SIM card NB-IoT / Cat-M card (1.8V ONLY) NB card (1.8V / 3V)
Antenna connector LTE, GNSS LTE
Dimensions 73.5 × 24.00mm

Raspberry Pi Pico header compatibility

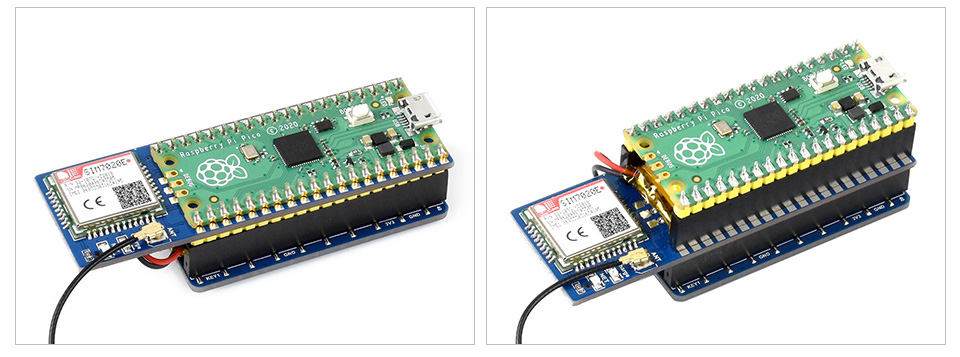

the Pico can be SMD-mounted (left), or attached via female header (right)

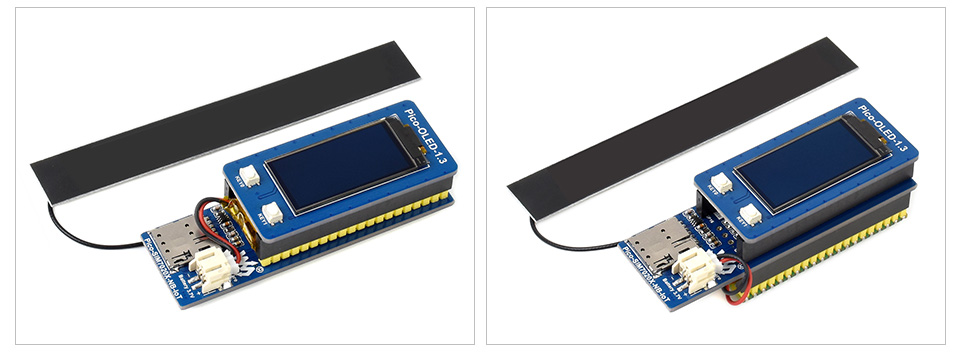

connecting with other expansion module and antenna

Raspberry Pi Pico is NOT included.The pin headers are NOT soldered by default.

Cloud Communication

Supports communication protocols including: TCP/UDP/HTTP/HTTPS/MQTT/LWM2M/COAP/TLS

Application example

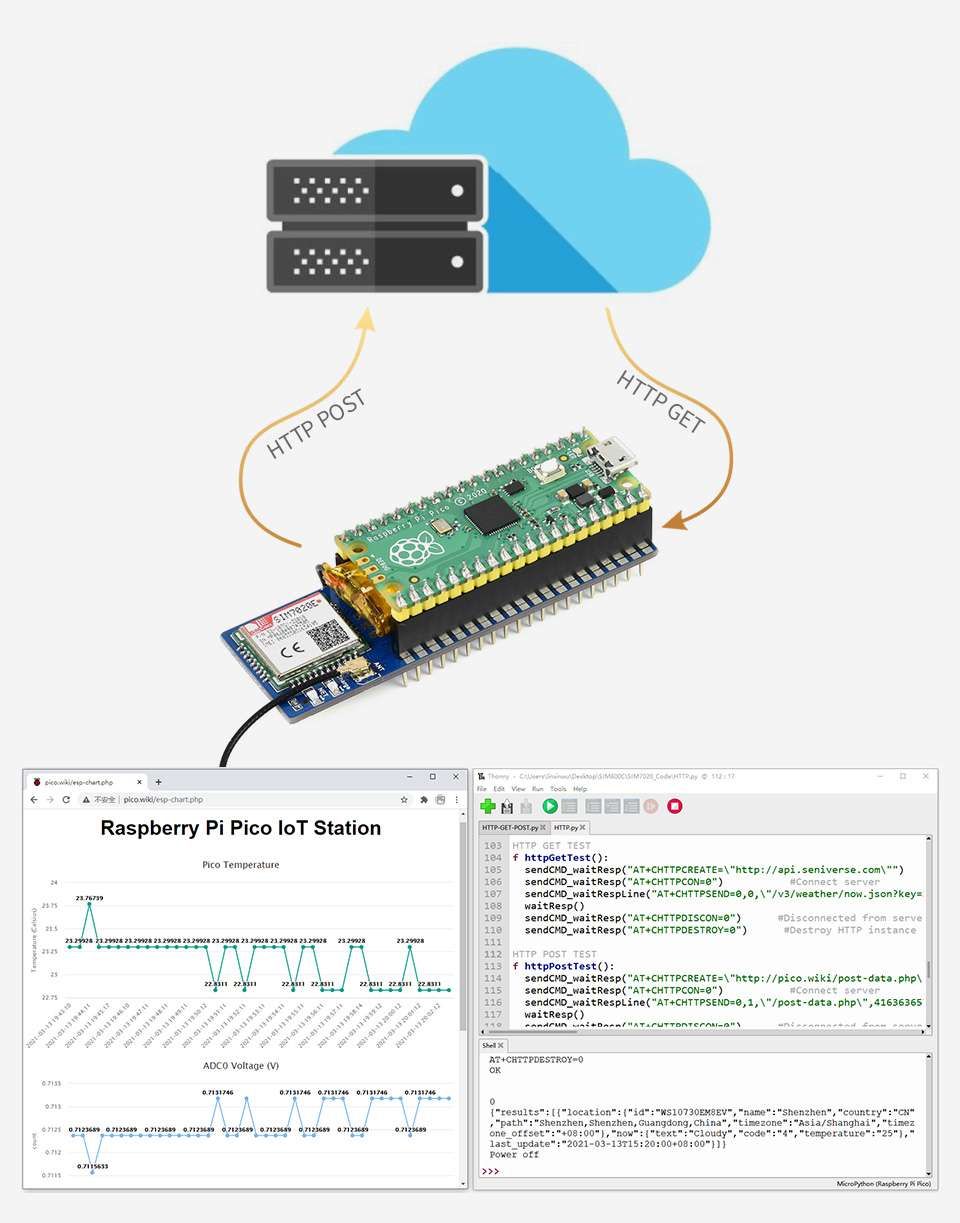

Via NB-IoT network, the Pico is able to fetch weather information by HTTP GET, and send its temperature to server via HTTP POST, then display it on webpage in real time

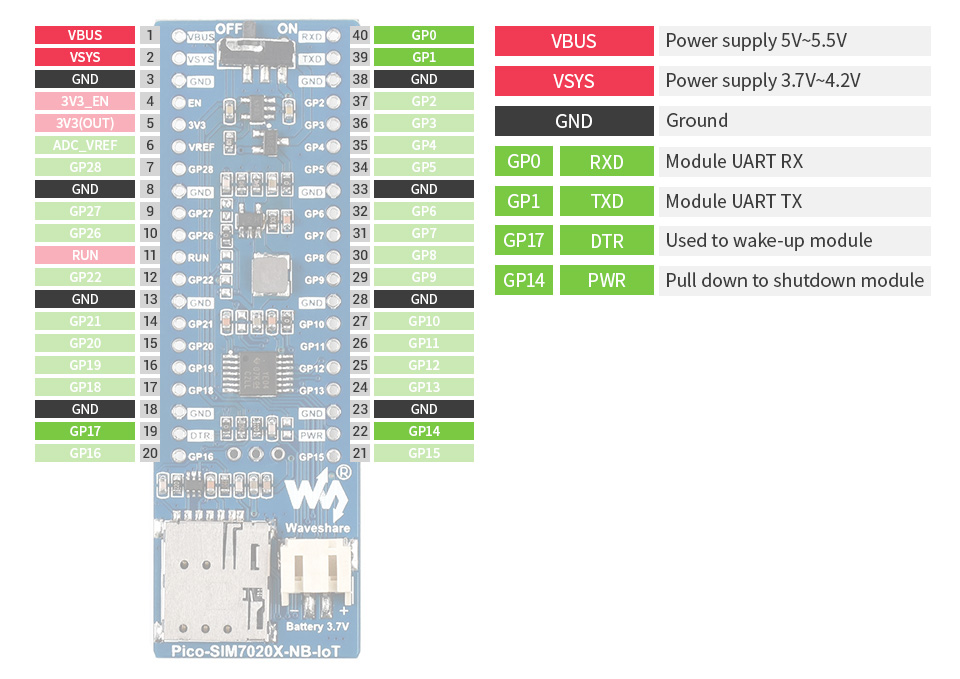

Pinout definition

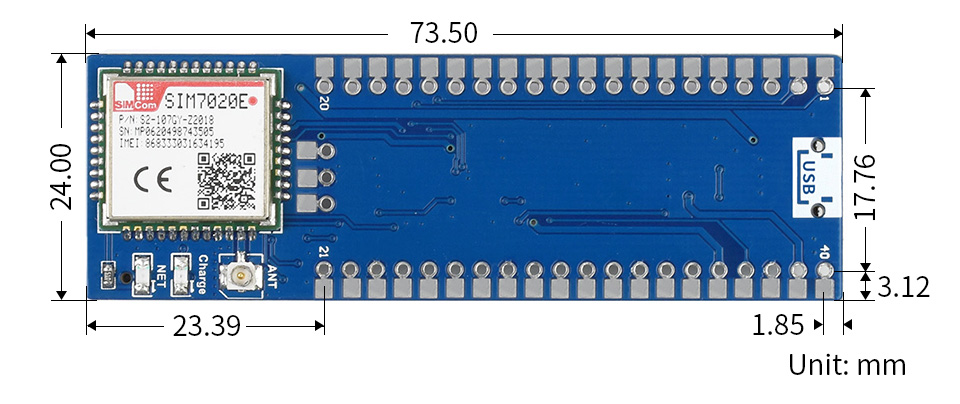

Outline dimensions

Resources & Services

Package Contents

  1. Pico-SIM7020E-NB-IoT x1

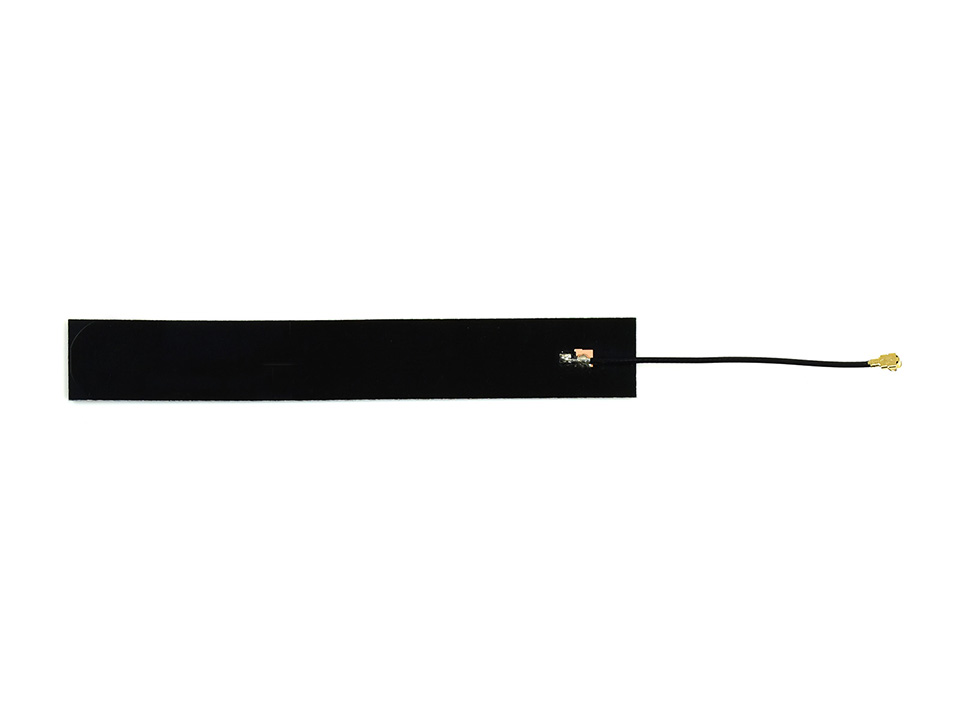

  2. Antenna x1
  3. 20PIN female pin header x2
  4. 40PIN male pin header × 1
  5. 3.7V rechargeable Li-po battery x1
