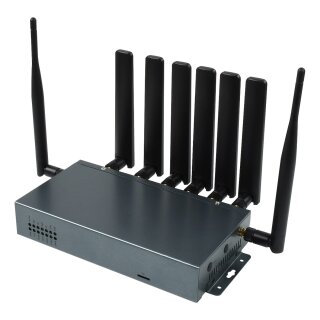

Waveshare 19747 SIM8200EA-M2 5G Router (EU)
Artnr.: WS1-019747
SIM8200EA-M2 Industrieller 5G Router, Wireless CPE, Snapdragon X55 Onboard, Gigabit Ethernet und WiFi, 5G/4G/3G Unterstützung, Anwendbar für Regionen mit 5G Sub-6G Signalabdeckung einschließlich China, USA, Japan, Südkorea, Europa, Naher Osten, Lateinamerika...
Variante
585,00 € inkl. 19% MwSt.
491,60 € exkl. MwSt.
ab Lager lieferbar

Lieferzeit: 1 - 3 Arbeitstage

Beschreibung

Prohibited by the module manufacturer SIMCOM, we're not allowed to ship this product, or to provide any tech support, to the following countries/regions: Iran, North Korea, Cuba, Sudan, Syrian.

industrial 5G wireless Router

High Speed 5G, Multi Mode Multi Band

Incorporates SIM8200EA-M2 5G module, supports 5G/4G/3G, and 5G SA / NSAapplicable for regions with 5G Sub-6G signal coverage including China, US, Japan, South Korea, Europe, the Middle East, Latin America...

Specifications

5G wireless specification
Frequency band 5G Sub-6G: n1, n2, n3, n5, n7, n8, n12, n20, n25, n28, n40, n41, n66, n71, n77, n78, n79
LTE-FDD: B1, B2, B3, B4, B5, B7, B8, B12, B13, B14, B17, B18, B19, B20, B25, B26, B28, B29, B30, B66, B71
LTE-TDD: B34, B38, B39, B40, B41, B42, B48
WCDMA: B1, B2, B3, B4, B5, B8
GNSS: GPS, GLONASS, BeiDou, Galileo, and QZSS
Data rate 5G Sub-6G: 4 Gbps (DL) / 500 Mbps (UL)
LTE: 2 Gbps (DL) / 200 Mbps (UL)
HSPA+: 42 Mbps (DL) / 5.76 Mbps (UL)
WiFi wireless specification
WiFi standard IEEE802.11b/g/n compliant, 2.4GHz, supports AP mode
Data rate 2.4GHz: up to 300Mbps
Authentication supports encryption methods including WEP, WPA, WPA2, etc.
Interfaces
M.2 1x connector, comes with 1x SIM8200EA-M2 module by default, supports other 5G modules
mini PCIE 3x connectors, comes with 1x 2.4GHz WiFi module, allows connecting one more 4G module and one more 5.8GHz WiFi module
WAN 1x 10 / 100 / 1000M Ethernet, auto-negotiation MDI/MDIX, embedded 1.5KV electromagnetic isolation protection(the WAN RJ45 can be used as LAN RJ45 port, so there could be totally 5x LAN RJ45 port)
LAN 4x 10 / 100 / 1000M Ethernet, auto-negotiation MDI/MDIX, embedded 1.5KV electromagnetic isolation protection
Serial port 1x RS232 + 1x RS485, embedded ESD protection
SIM/UIM card slot drawer SIM card slot, prevents the SIM card from dropping out, embedded 15KV ESD protection
Antenna connector SMA standard antenna connector, comes with 6x 5G antennas, 2x WiFi antennas by default
TF card slot for external storage
Power supply standard power supply interface, supply 12~24V input, embedded power supply phase-reversal protection and over-voltage protection
RESET button press and hold for 5~10s then release, restores the router to factory setting
Indicators PWR, SYS, 5G, 4G, WAN, LAN, TF, 2.4G, 5.8G status indicators
Power supply
Power adapter DC 12V/2A
Power input range 12 ~ 24V
Power consumption data mode:
Mechanical
Case Metal case, IP30 protection level
Dimensions 195 × 107 × 37mm
Operating temperature -35 ~ +75ºC
Storage temperature -40 ~ +85ºC
Relative humidity 95% (non-condensing)

Multi mode multi band

applicable for most of the countries and regions

Based on Qualcomm snapdragon X55 platform with multi mode multi band support.Applicable for regions with 5G Sub-6G signal coverage including China, US, Japan, South Korea, Europe, the Middle East, Latin America...Supports 5G NSA (4G+5G common networking) and SA (5G standalone networking)Based on 5G NR/LTE-FDD/LET-TDD/HSPA+ cellular network, convering most 5G commercial frequency band of global major regions, backward-compatible with 4G/3G network, supports 5G/4G/3G auto switching, providing high speed wireless connection and data transmission capability

* the frequency band diagram above is for reference only, please confirm the supported bands according to your local service provider.

High speed 5G network experience

enjoy high speed 5G networking via the Gigabit Ethernet port or WiFi connection

RS232/RS485 serial communication

supports multi modes including TCP/UDP transparent forwarding, Modbus, and MQTT

industrial design, stable & reliable

Quality metal case, with multi protections like ESD protection, surge protection, electric fast pulse protection, power supply phase-reversal protectionEmbedded hardware watchdog, allows self-detection on failure, self-recovery, ensures stable and reliable running

More safe & stable data transmission

Supports provider VPN access, adopts financial-level data security standard, dual WAN/Wired/Wireless connections with mutual backup, reducing communication failure probability, providing stable and reliable data transmission.Supports general VPN protocols like PPTP, L2TP, GRE, OpenVPN, multi-layer encryption, more safe transmission.

Customizable software/hardware

Standardized and modular base board interface designOnboard 1x M.2 connector, 3x mini PCIE connectors, allows connecting 1x 5G module, 1x 4G module, and 2x WiFi modules at one timeComes with 1x SIM8200EA-M2 5G module and 1x WiFi module by default , you can flexibly customize or upgrade the software/hardware by yourself

More Possibilities

industrial hardware design, powerful software function, suitable for sorts of industrial and IoT applications

Interface Introduction

Outline Dimensions

* measured manually, for reference only.

Resources & Services

Package Contents

  1. SIM8200EA-M2 5G Router x1
  2. 5G antenna x6
  3. WiFi antenna x2
  4. OPTIONS 12V power adapter x1
1
2
3
4

Software
