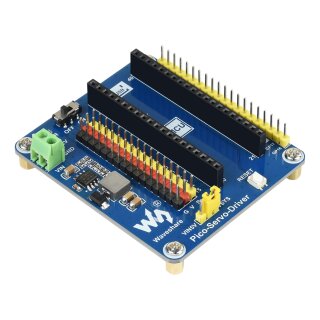

Waveshare 19767 Pico-Servo-Driver
Artnr.: WS1-019767
Servo-Treiber-Modul für Raspberry Pi Pico, 16-Kanal-Ausgänge, 16-Bit-Auflösung

10,90 € inkl. 19% MwSt.
9,16 € exkl. MwSt.

zzgl. Versand

10+ ab Lager lieferbar

Lieferzeit: 1 - 3 Arbeitstage

Beschreibung

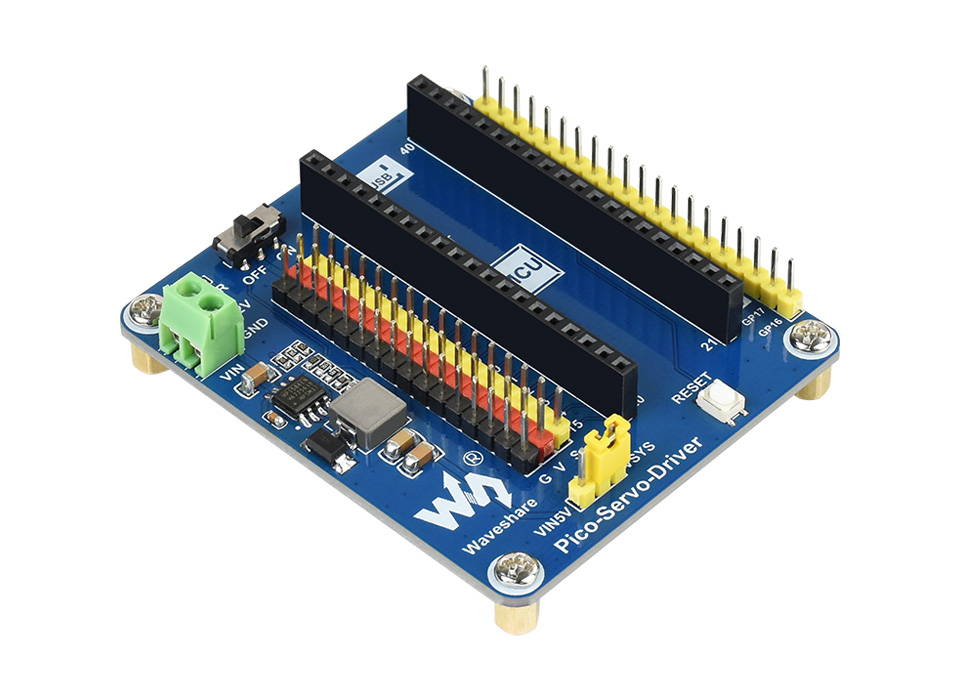

Servo Driver Module for Pico

ideal for controlling robotic arm or hexapod walker

Features at a glance

  • Standard Raspberry Pi Pico header, supports Raspberry Pi Pico series boards
  • Up to 16-Channel servo/PWM outputs, 16-bit resolution for each channel
  • Integrates 5V regulator, up to 3A output current, allows battery power supply from the VIN terminal
  • Standard servo interface, supports common used servo such as SG90, MG90S, MG996R, etc.

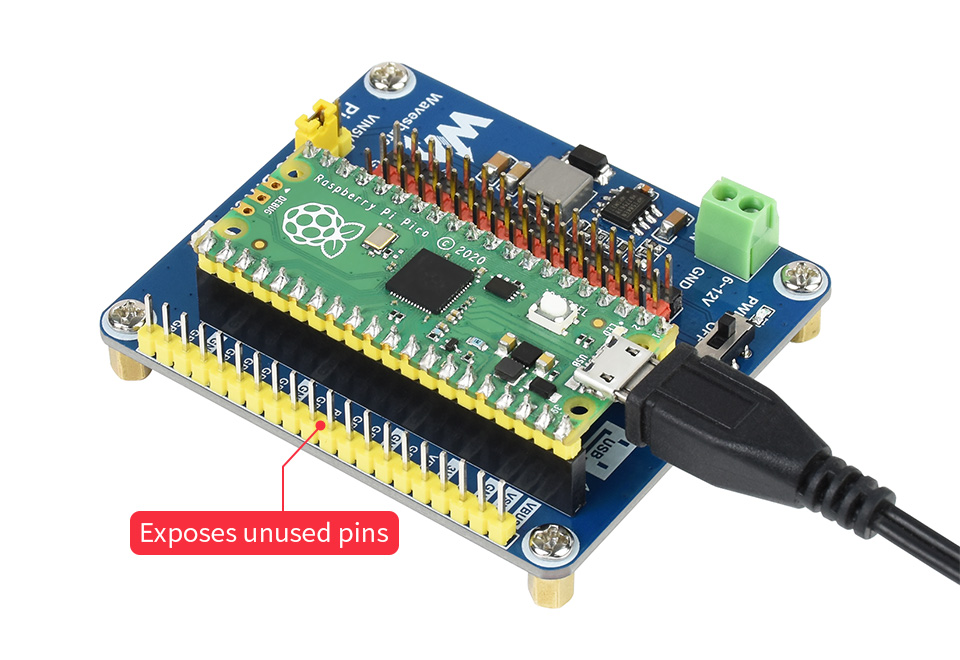

  • Exposes unused pins of Pico, easy expansion
  • Comes with development resources and manual (Raspberry Pi Pico C/C++ and MicroPython examples)

Specifications

Operating voltage 5V (Pico) or 6~12V (VIN terminal) Servo voltage level 5V
Logic level 3.3V Control interface GPIO
Mounting hole size 3.0mm Dimensions 65 × 56mm

Raspberry Pi Pico header compatibility

onboard female pin header for direct attaching to Raspberry Pi Pico

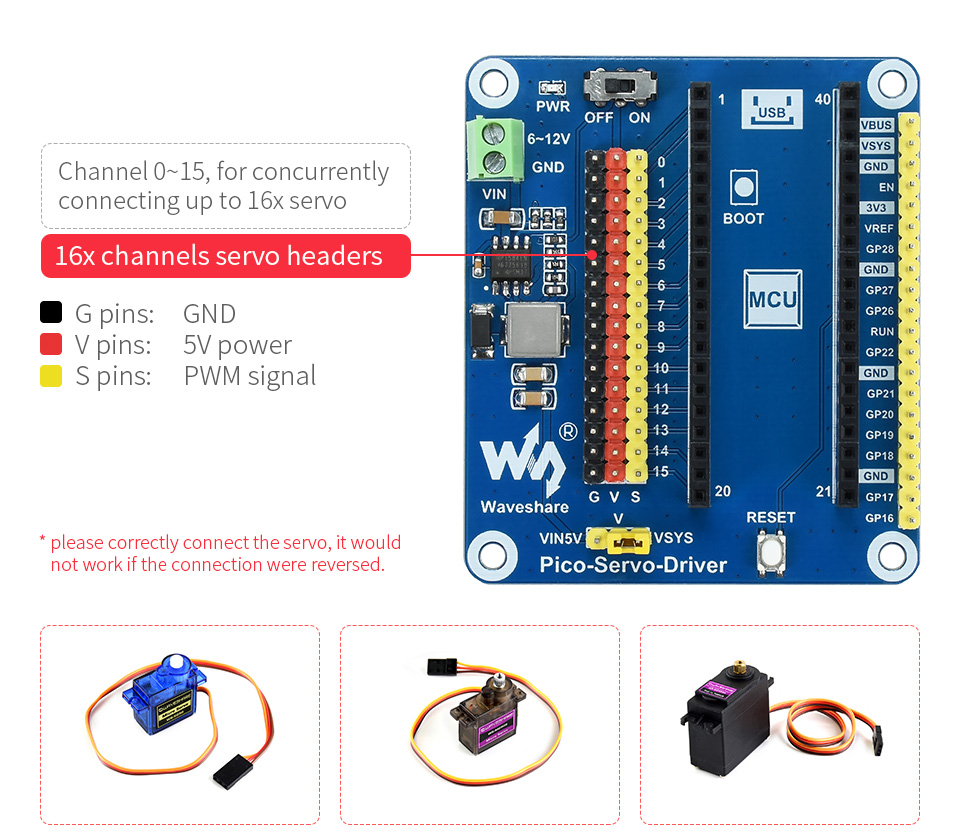

Standard servo interface

supports common used servo like: SG90,MG90S,MG996R

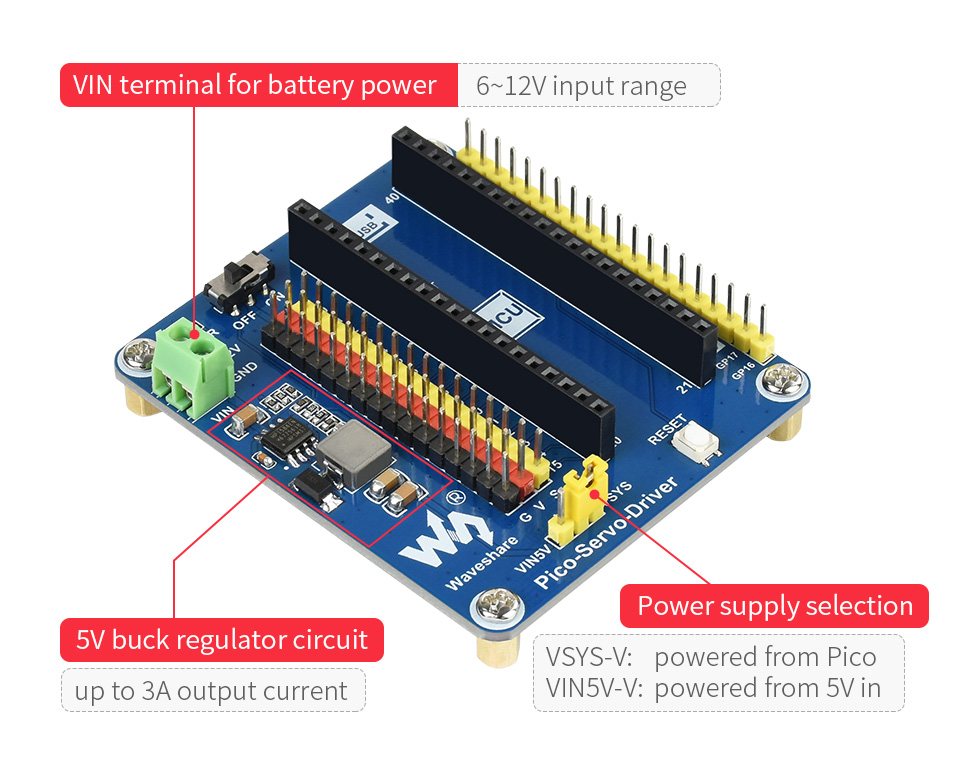

Onboard 5V regulator

flexible power options: powered from Pico directly, or from VIN battery input terminal with max 3A current output

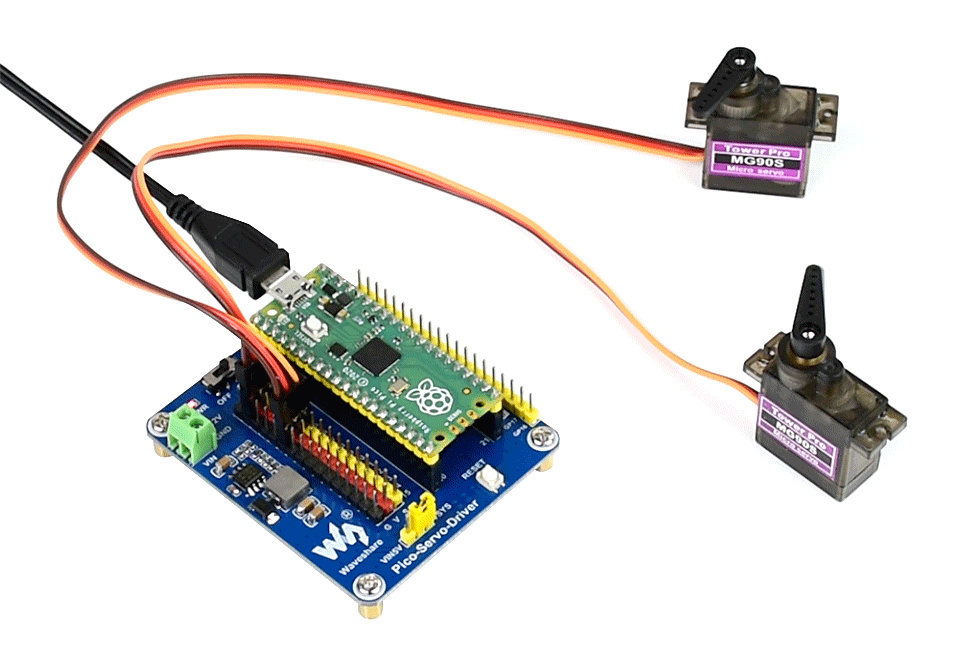

Application example

Raspberry Pi Pico and servo are NOT included.

Pinout definition

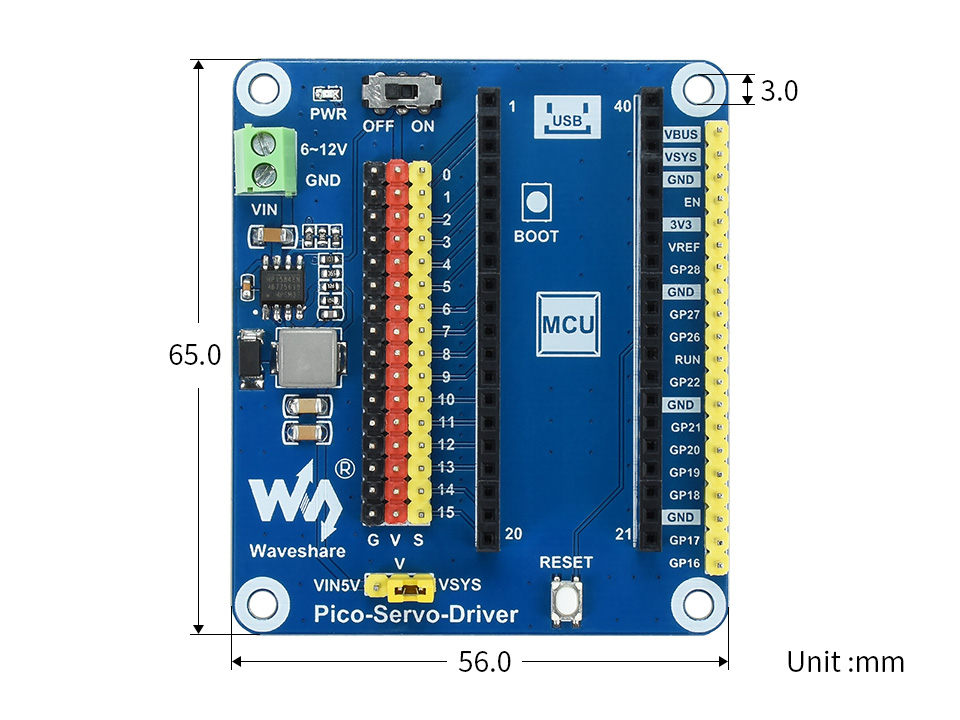

Outline dimensions

Resources & Services

* Resources for different product may vary, please check the wiki page to confirm the actually provided resources.

Package Contents

  1. Pico-Servo-Driver x1
1

Versandgewicht: 0,04 Kg
