Waveshare 19799 Solar Power Manager (B)

Artnr.: WS1-019799

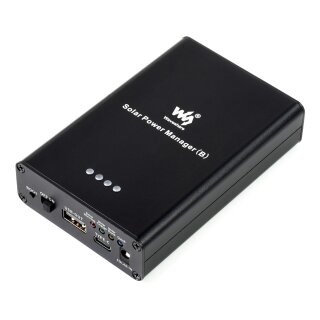

Waveshare 19799 Solar Power Manager (B)

Solar Power Manager (B), integrierter 10000mAh wiederaufladbarer Li-Po-Akku, mehrere Schutzschaltungen

27,90 € inkl. 19% MwSt.

23,45 € exkl. MwSt.

zzgl. Versand

nicht lieferbar

Beschreibung

Solar Power Manager

Compatible with 6V~24V solar panels, embedded 10000mAh Li-po battery

recharged from solar panel, or TYPE-C power adapter5V/3A regulated output

Product features

The Solar Power Manager (B) is compatible with general 6V~24V solar panels. It can recharge the 3.7V rechargeable Li-po battery through solar panel or USB TYPE-C connection, and provides 5V / 3A regulated output (with multi protocols support including PD/QC/FCP/PE/SFCP).

The module features MPPT (Maximum Power Point Tracking) function and multi protection circuits , therefore, it is able to keep operating with high-efficiency, stability, and safety. It is suitable for solar powered, low-power IoT, and other environmental protection projects.

Supports MPPT (Maximum Power Point Tracking) function, maximizing the efficiency of the solar panel
Flexible battery recharging: from solar panel or USB TYPE-C power adapter
Compatible with 6V~24V solar panels, DC-002 jack input or screw terminal input
Onboard MPPT SET switch, select the level closed to input level to improve recharging efficiency
Onboard aluminum electrolytic capacitor and SMD ceramic capacitor, reducing the ripple, stable performance
PH2.0 battery connector, with embedded 10000mAh 3.7V rechargeable Li-po battery
Several LED indicators, for monitoring the status of solar panel and battery
Multi protection circuits: over charge / over discharge / reverse-proof / over heat / over current, stable and safe to use

Specifications

	Solar Power Manager	Solar Power Manager (B)
SOLAR IN	6V ~ 24V	6V ~ 24V (18V by default)
Recharging	Solar panel, power adapter, USB
Battery	3.7V 850mAh 14500 Li-ion battery (NOT included)	3.7V 10000mAh Li-po battery
USB input	5V (Micro USB)	5V (TYPE-C, with PD quick charge support)
5V output	5V / 1A (USB OUT, pin header)	5V / 3A (USB-OUT, TYPE-C)
Recharging cutoff voltage	4.2V ± 1%
Over discharging protection voltage	2.9V ± 1%
Solar panel recharging efficiency	~78%
USB recharging efficiency	~82%	~93%
Batteries boost output efficiency	~86%	~92%
Quiescent current (Max)	<2mA
Case	N/A	Metal case
Operating temperature	-40? ~ 85?

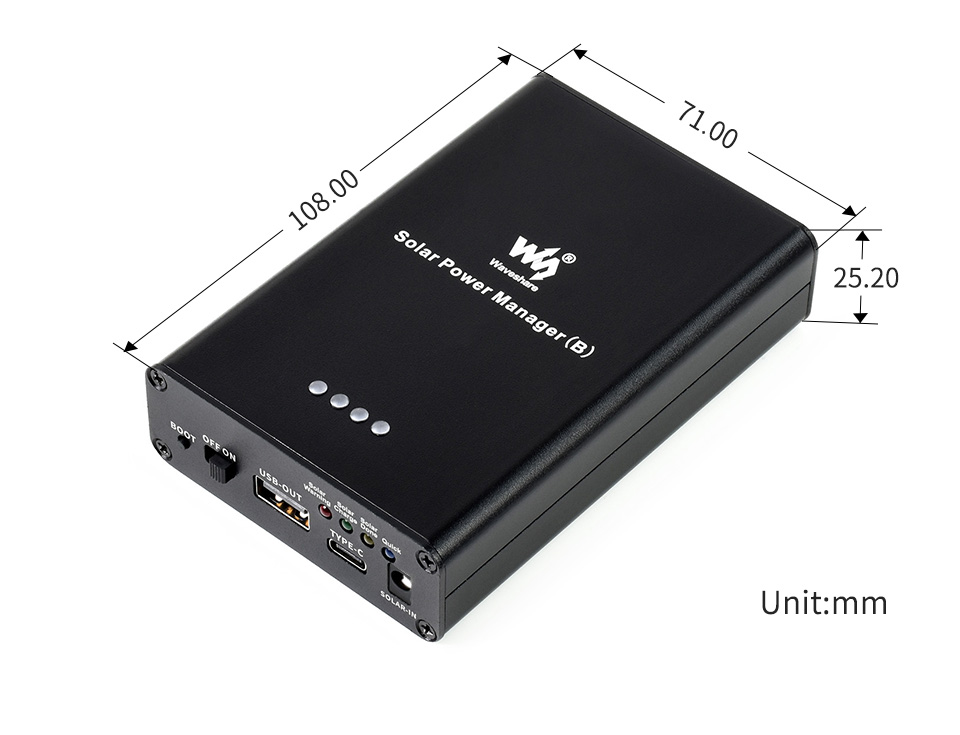

Dimensions	65.2 × 56.2 × 22.9mm	108.0 × 71.0 × 25.2mm

Supports 6V~24V solar panels

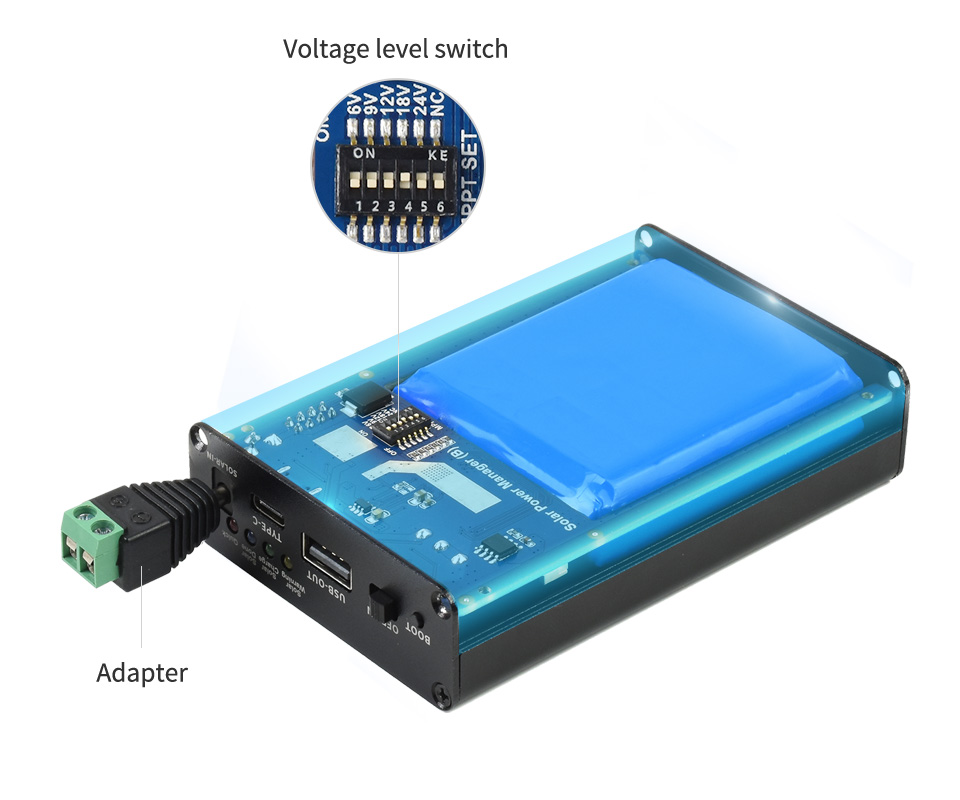

5-level voltage switch, for setting solar panel input voltage to improve efficiency

Application example

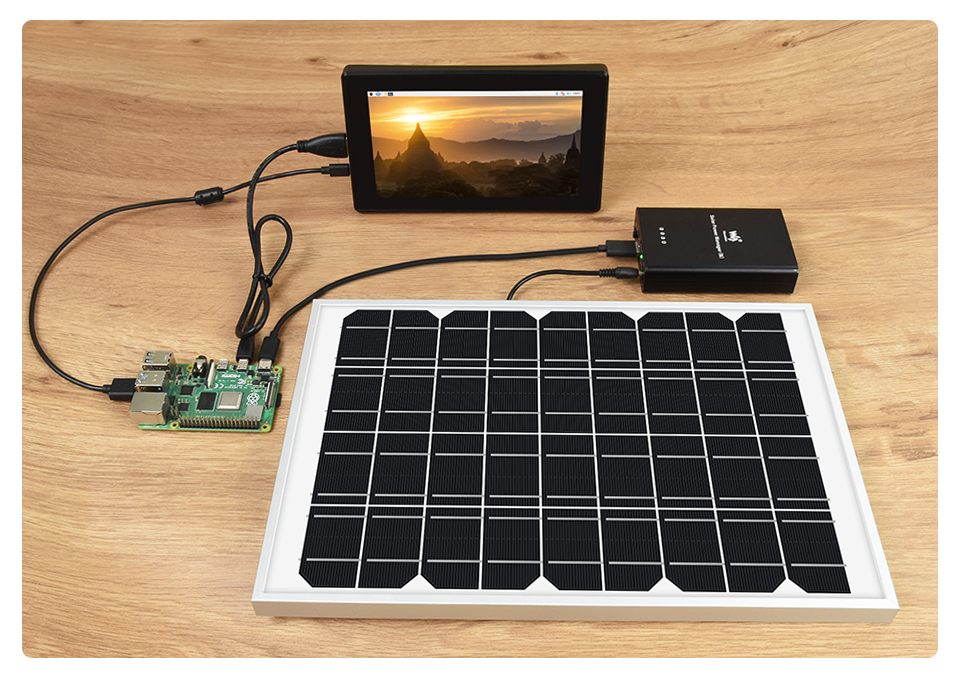

solar-powered control system for MCUs / development boards like: Raspberry Pi / Jetson Nano / Arduino...

for reference ONLY, the Raspberry Pi, display, solar panel are NOT included.

More possibilities

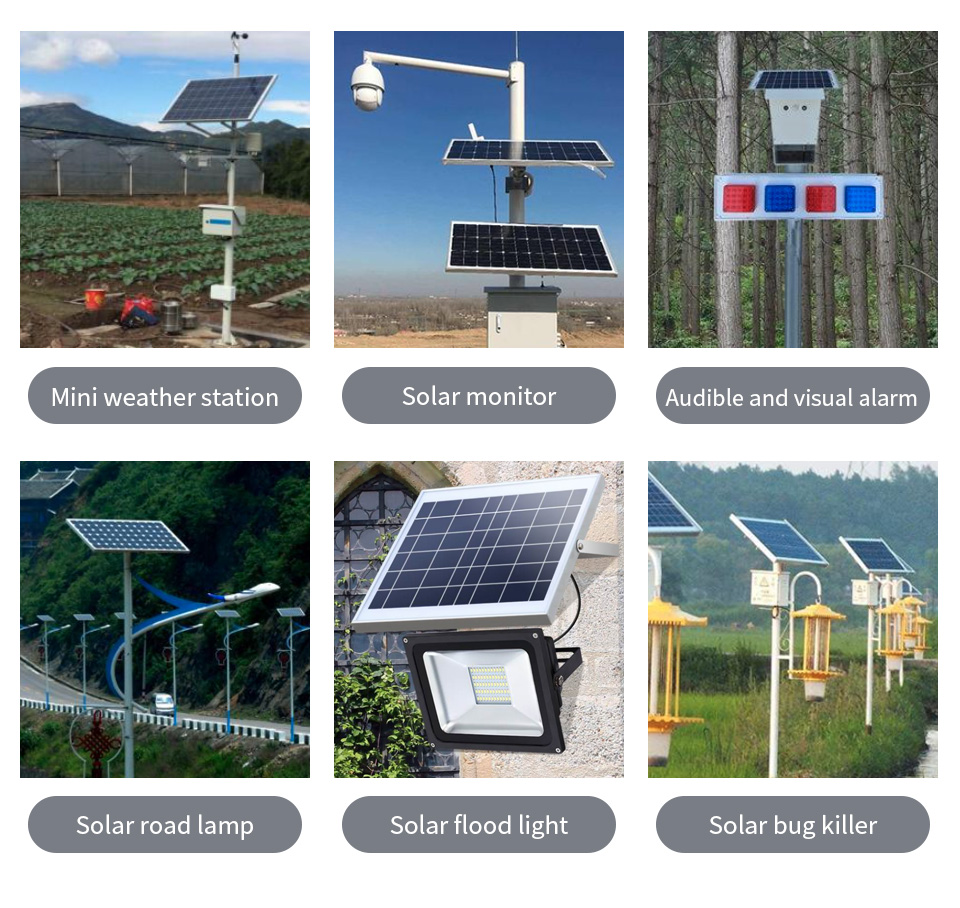

Suitable for mini solar road lamp, intelligent agriculture, or IoT applications

Resources introduction

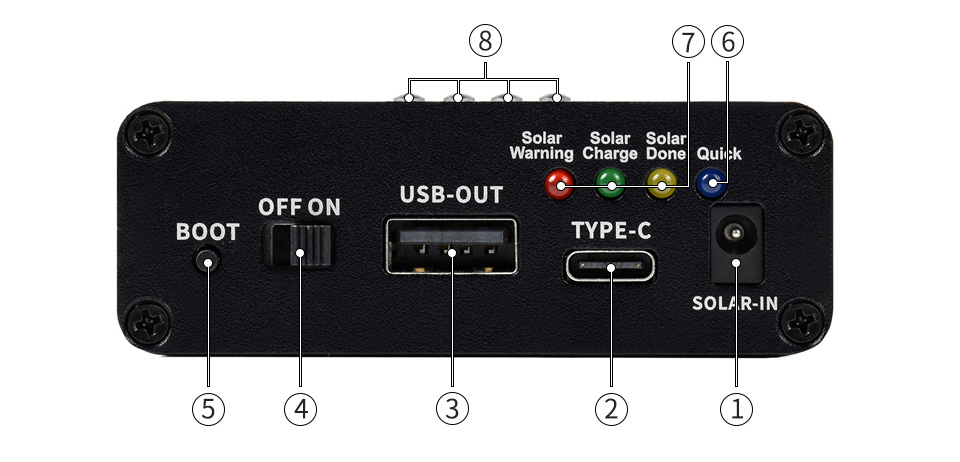

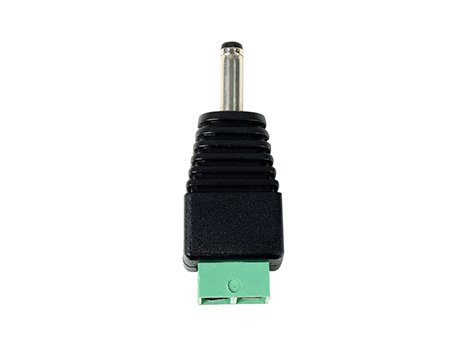

Solar panel input recharging through DC-002 jack or screw terminal
TYPE-C recharging/output port supports 5V power adapter for recharging supports PD protocol quick charge adapter supports PD/QC/FCP/PE/SFCP multi protocols output
USB output port 5V/3A regulated output supports PD/QC/FCP/PE/SFCP multi protocols output

Battery on/off switch
BOOT button
Quick charge indicator
Solar panel status indicators Solar Warning: lights up if solar panel is reversed Solar Charge: lights up when recharging from solar panel Solar Done: lights up when the battery is fully recharged
Battery life indicators
