Waveshare 20159 Pico-Eval-Board
Artnr.: WS1-020159
Overall Evaluation Board entwickelt für Raspberry Pi Pico, diverse Onboard-Komponenten

47,50 € inkl. 19% MwSt.
39,92 € exkl. MwSt.

zzgl. Versand

10+ ab Lager lieferbar

Lieferzeit: 1 - 3 Arbeitstage

Beschreibung

Overall evaluation board for Pico

Misc onboard components, fast get started with the Pico

Features at a glance

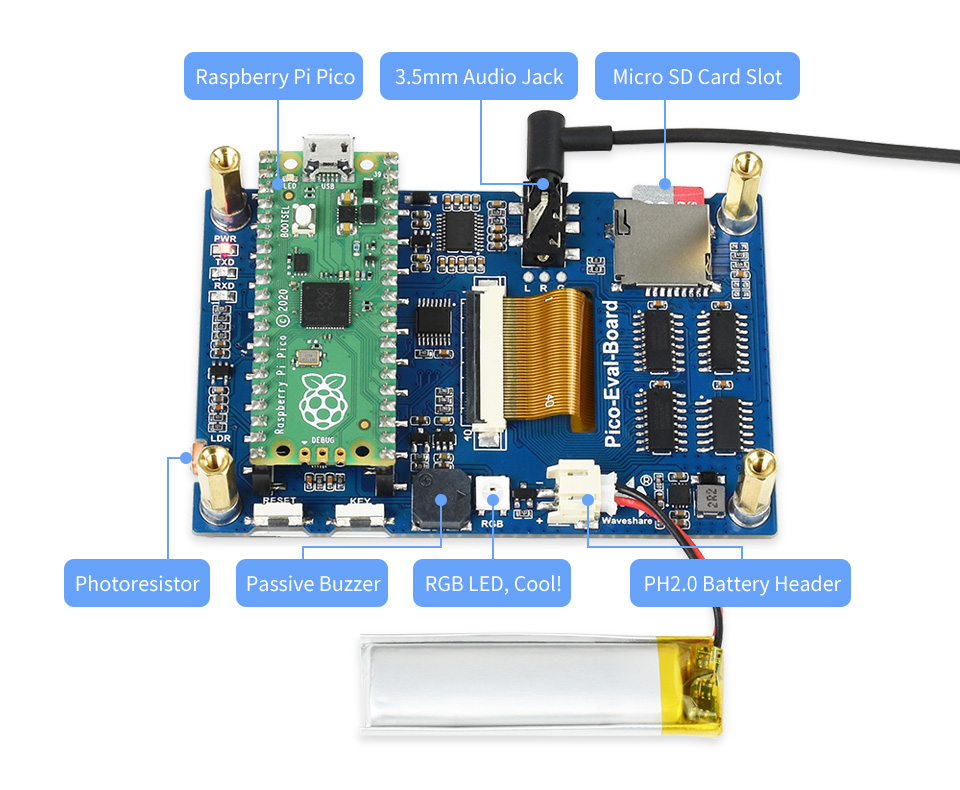

The Pico-Eval-Board is an overall evaluation solution designed for Raspberry Pi Pico. With 3.5inch 65K colorful LCD display and misc helpful onboard components, this evaluation board allows you to try almost every on chip peripheral of the RP2040, eliminating the mess wiring. It is an ideal choice for user to fast get started with the Raspberry Pi Pico, as well as the RP2040 chip.

  • Standard Raspberry Pi Pico header, supports Raspberry Pi Pico series boards
  • 3.5inch resistive touch screen, 65K colorful, bringing clear and vivid display effect
  • Standard 3.5mm audio jack, for headphone or other audio peripherals
  • Micro SD card slot through the SDIO interface, faster access speed than SPI interface
  • Integrates battery header and recharge circuit, allows it keep running without wired power supply
  • Other rich resources like buzzer, photoresistor, and RGB LED...
  • Comes with development resources and manual (Raspberry Pi Pico C/C++ and MicroPython examples)

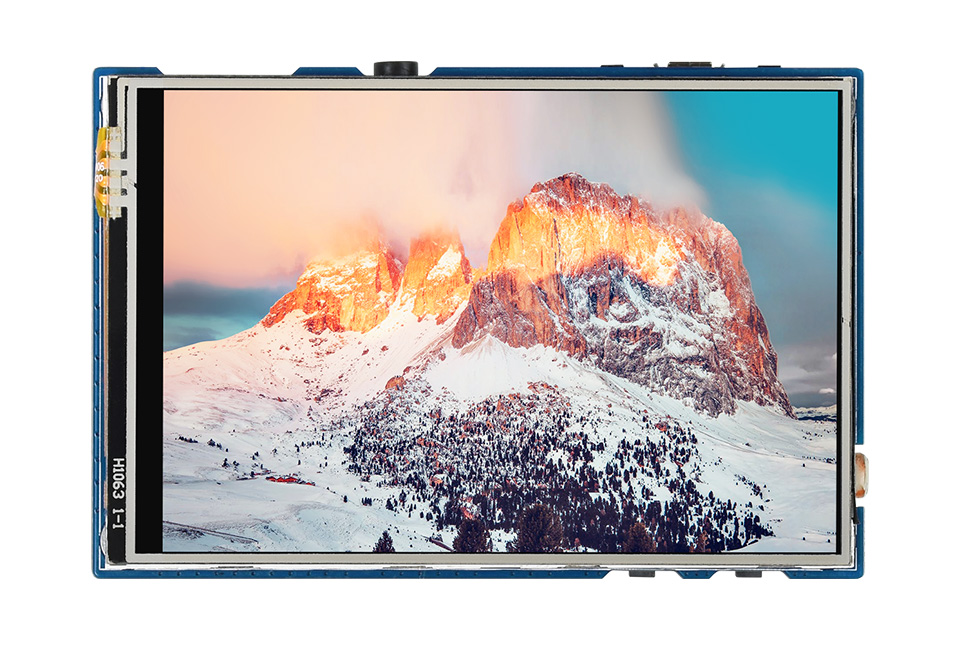

65K colorful IPS touch screen

IPS panel, better display details, more vivid colors

LCD Specifications
Operating voltage 5V Resolution 480×320 Pixels
Touch type resistive Display colors 65K colorful
Communication bus SPI Display size 73.44 × 48.96 mm
Display panel IPS Pixel size 0.153 × 0.153 mm
Controller ILI9488/XPT2046 Dimensions 86.00 × 57.20 mm

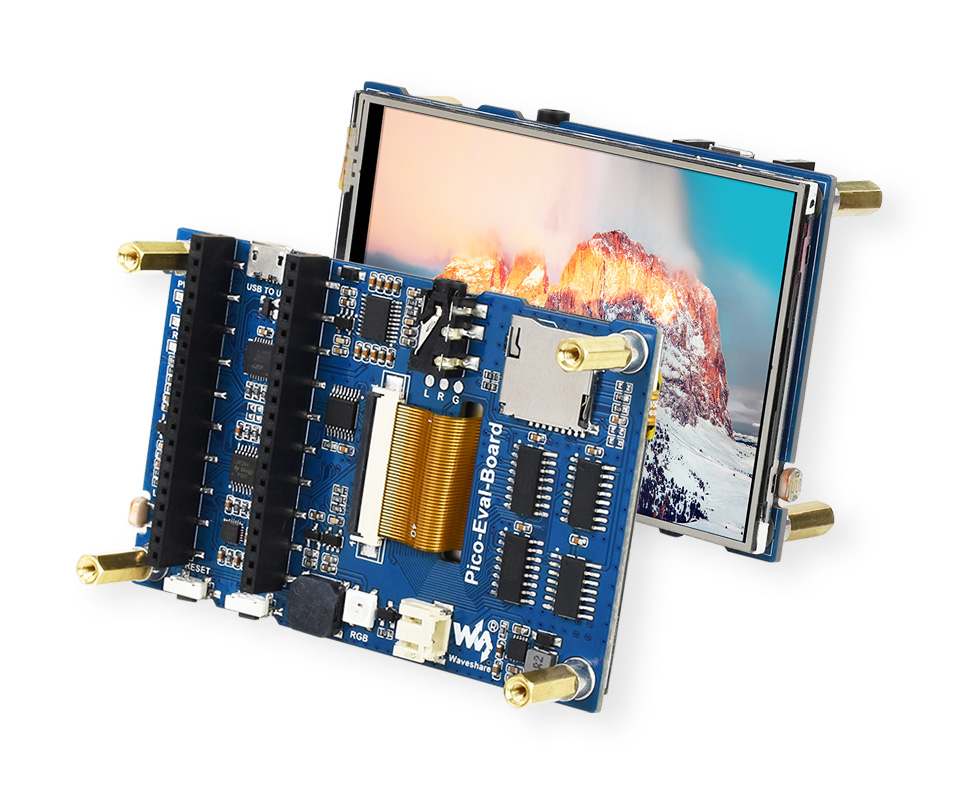

Raspberry Pi Pico header compatibility

onboard female pin header for direct attaching to Raspberry Pi Pico

Raspberry Pi Pico and PH2.0 battery are NOT included.

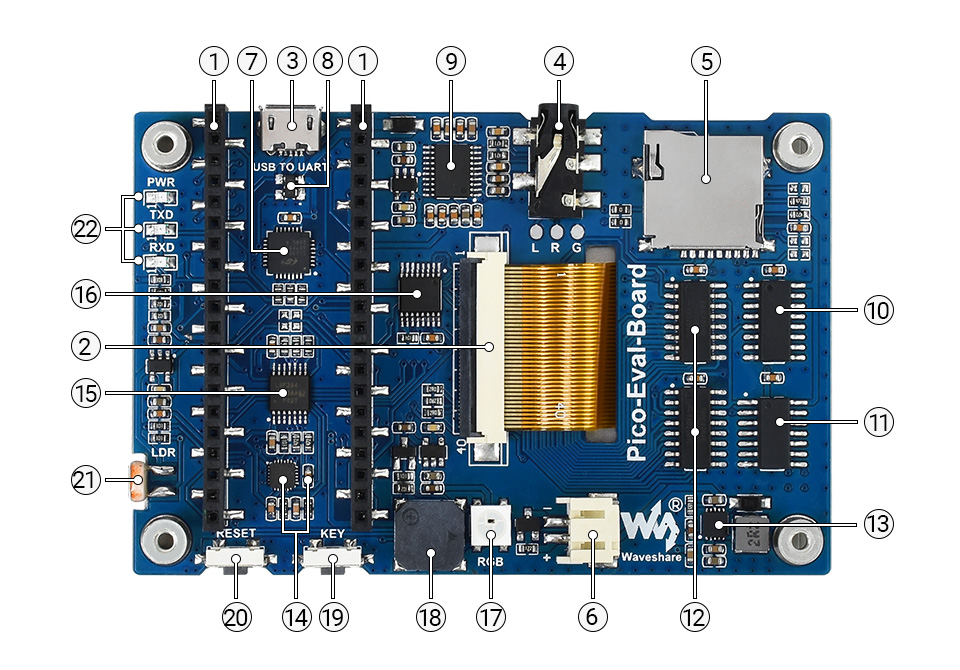

What's On Board

  1. Rapsberry Pi Pico header for direct attaching to Raspberry Pi Pico
  2. LCD connector for connecting the 3.5inch IPS LCD
  3. Mirco USB connector CP2102 communication or battery recharge
  4. 3.5mm audio jack headphone interface
  5. Micro SD card slot using SDIO interface, faster access speed
  6. PH2.0 battery header for connecting 3.7V Li-po battery
  7. CP2102 USB to UART converter
  8. SP0503 diode for protecting the chip from ESD
  9. PCM5101A stereo audio DAC chip, supports analog audio output
  10. 74HC4040 counter chip for clock frequency division
  11. 74HC04D inverter chip
  12. 74HC4094 serial to parallel data converter
  1. ETA6096 battery recharger, 1A recharging current
  2. ICM20948 9-axis motion sensor, allows posture sensing
  3. LSD0204 voltage level translator, ensuring safe communication between chips on different operating voltage
  4. XPT2046 resistive touch controller
  5. W2812B RGB LED, so cool
  6. Passive buzzer controllable sound frequency
  7. User key a user-defined key, connects to GP2
  8. Reset key Pico reset
  9. Photoresistor converting light intensity to voltage signal, measuring light intensity
  10. Indicators PWR: power indicator TXD: CP2102 UART TX RXD: CP2102 UART RX

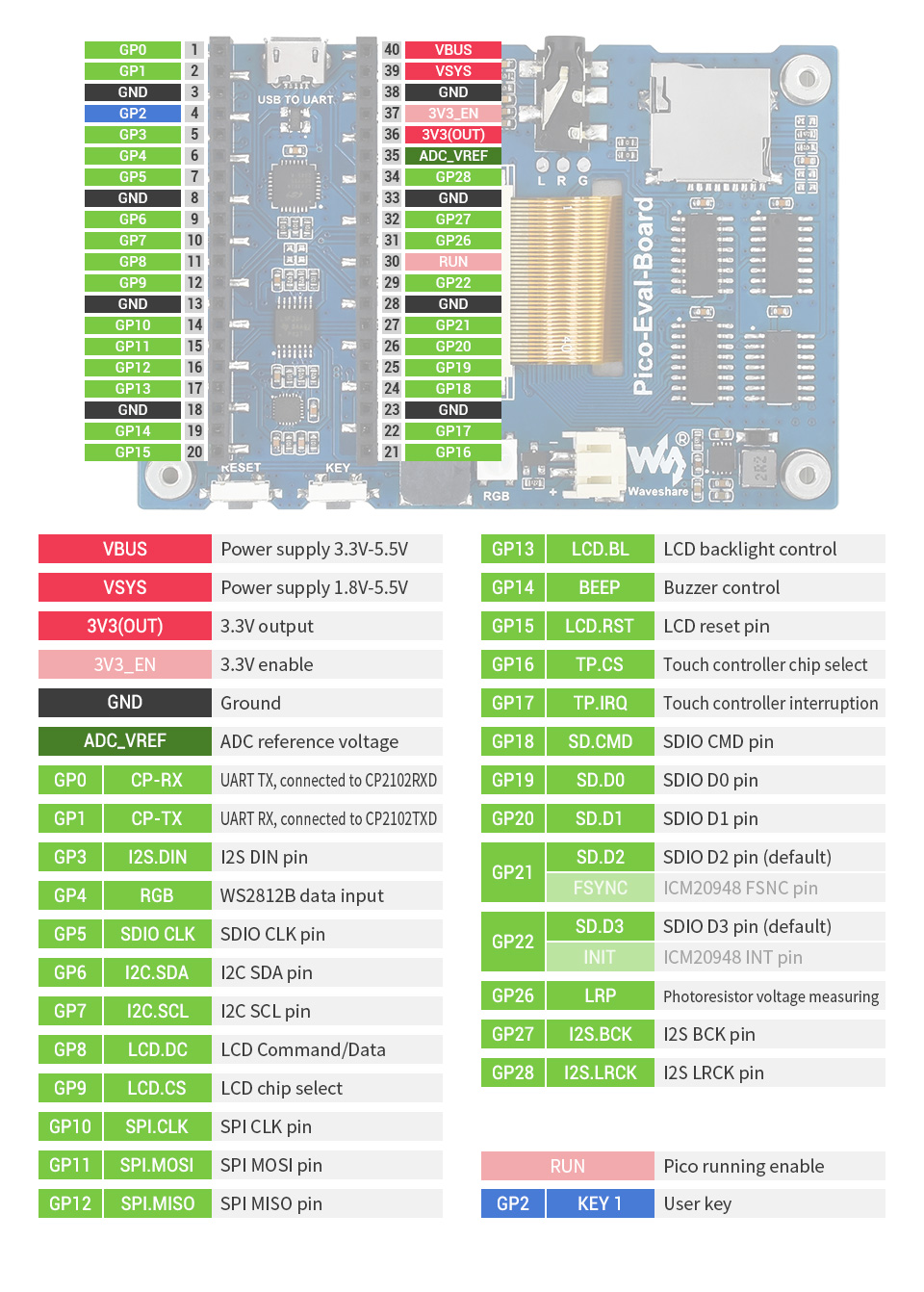

Pinout definition

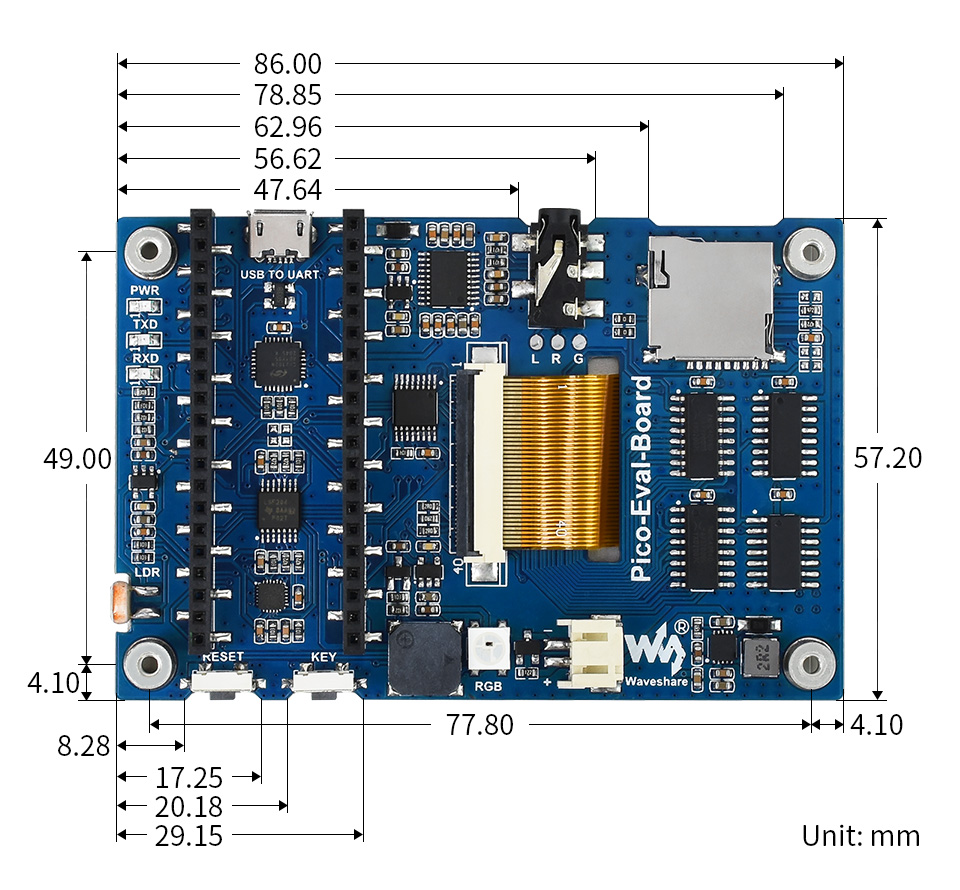

Outline dimensions

Resources & Services

* Resources for different product may vary, please check the wiki page to confirm the actually provided resources.

Package Contents

  1. Pico-Eval-Board x1
  2. Standoff pack x1
