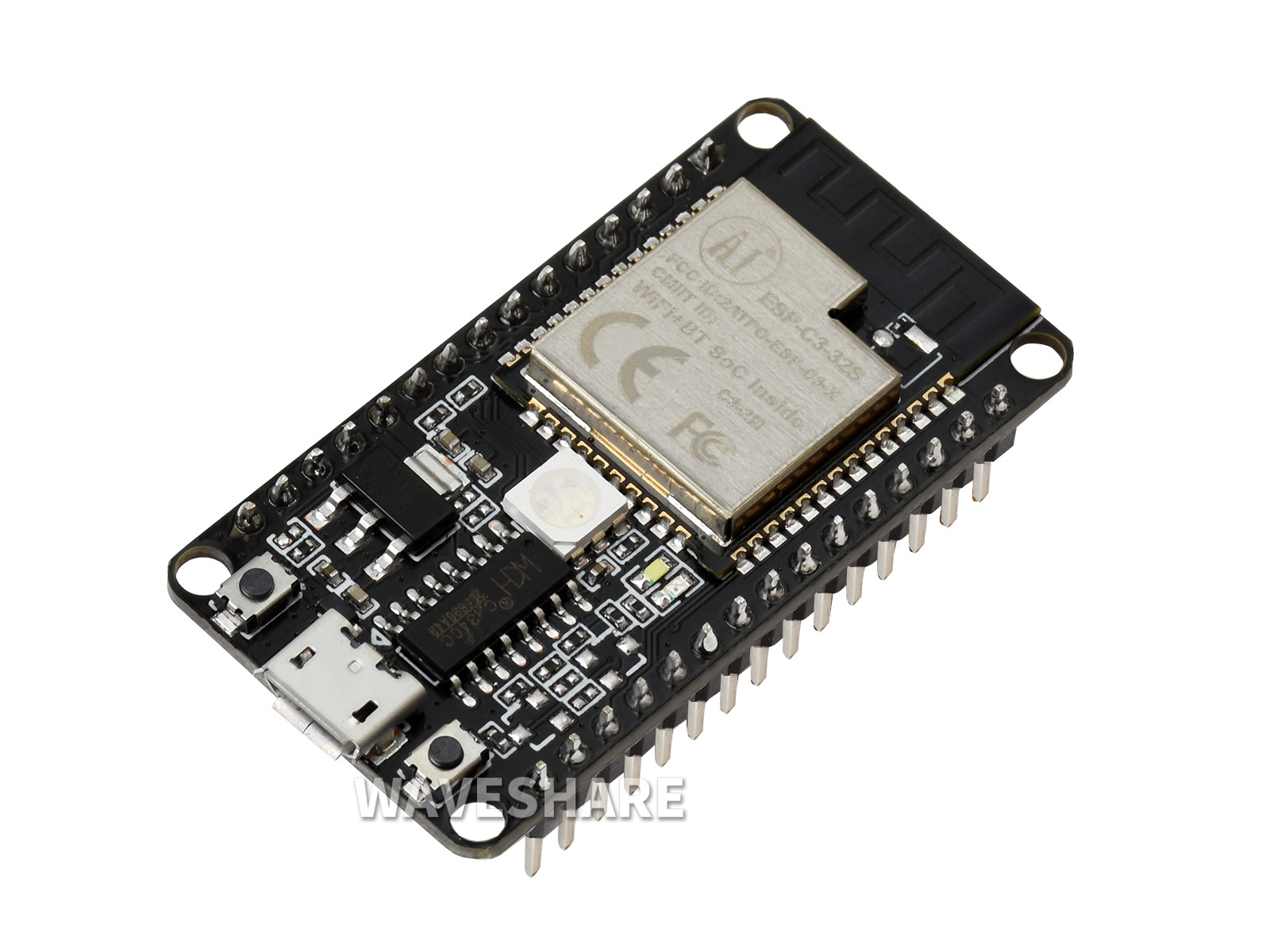

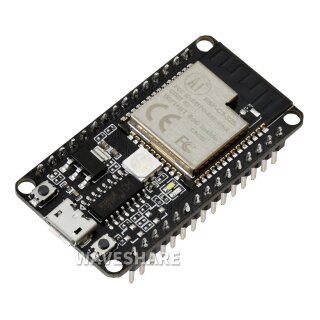

Waveshare 20279 ESP-C3-32S-Kit
Artnr.: WS1-020279
ESP-C3-32S-Kit ESP32 WiFi+Bluetooth Development Board, Based On ESP32-C3

5,90 € inkl. 19% MwSt.
4,96 € exkl. MwSt.

zzgl. Versand

nicht lieferbar

Beschreibung

This is an entry-level development board based on Espressif ESP32-C3 SoC, which is equipped with a RISC-V 32-bitsingle-core processor, operating frequency up to 160 MHz, supports secondary development without using other microcontrollers or processors. The ESP32-C3 is an highly integrated low power Wi-Fi and Bluetooth system-level chip (SoC), designed for various applications such as internet of things (IoT), mobile devices, wearable electronics, smart home, etc.

Features

  • Onboard ESP-C3-32S module that comes with a PCB antenna
  • Onboard CH340, USB to UART converter
  • RGB 3-in-1 LED, convenient for secondary development
  • USB port for power input, firmware programming, or UART debugging
  • 2x15pin extension headers, breakout all the I/O pins of the module
  • 2x keys, used as reset or user-defined

Specifications

  • Complete Wi-Fi 802.11b/g/n, 1T1R mode data rate up to 150Mbps
  • Support BLE5.0 and rate support: 125Kbps, 500Kbps, 1Mbps,2Mbps
  • Onboard ESP32-C3 chip, 32-bit RISC-V single-core processor, supports a clock frequency of up to 160 MHz, with 400 KB SRAM, 384 KB ROM, 8KB RTC SRAM
  • Support UART/PWM/GPIO/ADC/I2C/I2S interface, temperature sensor, pulse counter
  • SMD-38 package
  • Integrated Wi-Fi MAC/ BB/RF/PA/LNA/BLE
  • Support multiple sleep modes, deep sleep electric current is less than 5uA
  • UART rate up to 5Mbps
  • Support STA/AP/STA+AP mode and mix mode
  • Support Smart Config (APP)/AirKiss (WeChat) of Android and IOS One-click network configuration
  • Support UART port local upgrade and remote firmware upgrade (FOTA)
  • General AT commands can be better understand
  • Support secondary development, integrated Linux development environment
  • ESP-C3-32S module acquiesce in using the built-in 4MByte Flash, meanwhile support external Flash version

Applications

The ESP-C3-32S-Kit suit for IoT applications such as:

  • Smart home
  • Intelligent building
  • Industrial automation
  • Wearable devices
  • IP camera
  • Intelligent agriculture

Development Resources

Wiki : ESP-C3-32S-Kit

Package Contents

  1. ESP-C3-32S-Kit x1
1

Versandgewicht: 0,01 Kg
