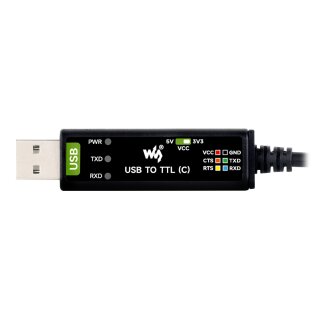

Waveshare 26739 USB TO TTL (C)

Artnr.: WS1-026739
Hersteller: Waveshare

Industrial USB TO TTL (C) 6pin Serial Cable, Original FT232RNL Chip, Multi Protection Circuits, Multi Systems Support, With Hardware Flow Control

9,90 €

inkl. 19% MwSt.

(8,32 € exkl. MwSt.)

zzgl.

ausverkauft
Lieferzeit: ca. 3 Monate (DE - Ausland abweichend)

Beschreibung
Kundenrezensionen

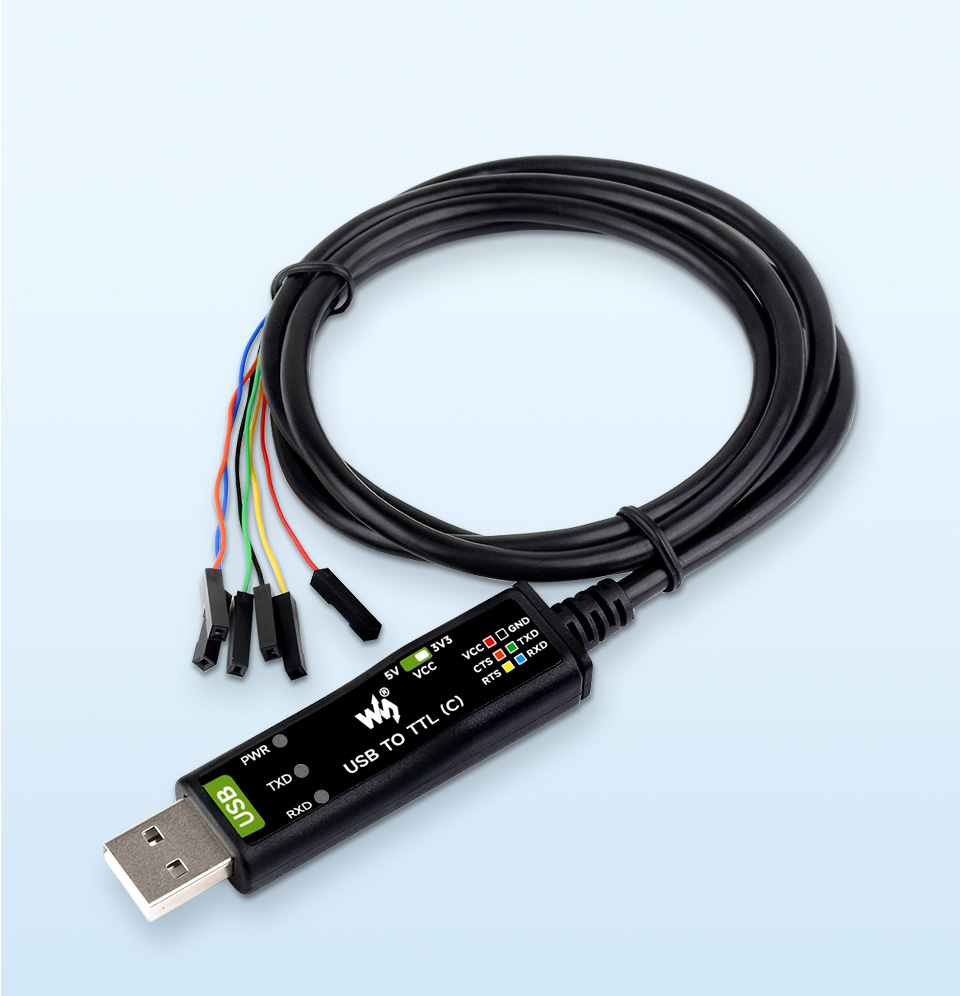

Industrial USB to TTL serial cable Type C

Original FT232RNL | Stable Transmission | Multi Devices | Multi Systems

Suitable for serial port debugging of industrial equipments, with hardware flow control

Industrial USB TO TTL 6pin serial cable, adopts original FT232RNL chip, onboard power supply and signal indicators, supports 3.3V/5V voltage level switching, built in self-recovery fuse, ESD and IO protection diode circuits, etc.

Specifications

Product category	Industrial USB TO TTL serial cable
Chip scheme	FTDI original FT232RNL
Host port	USB
Data rate	300bps ~ 3Mbps
Device Port	UART
USB port	Connector: USB-A
USB port	Protection: self-recovery fuse, ESD protection
UART port	Connector: separated 6pin female header
UART port	Protection: IO protection diode
Indicator	PWR: power indicator, turns on when there is USB connection and voltage is detected
	TXD: TX indicator, turns on while the USB port is sending data
	RXD: RX indicator, turns on while the device port is sending data back
Cable	Black, PVC sheath, total length 1m

Onboard Original Chips

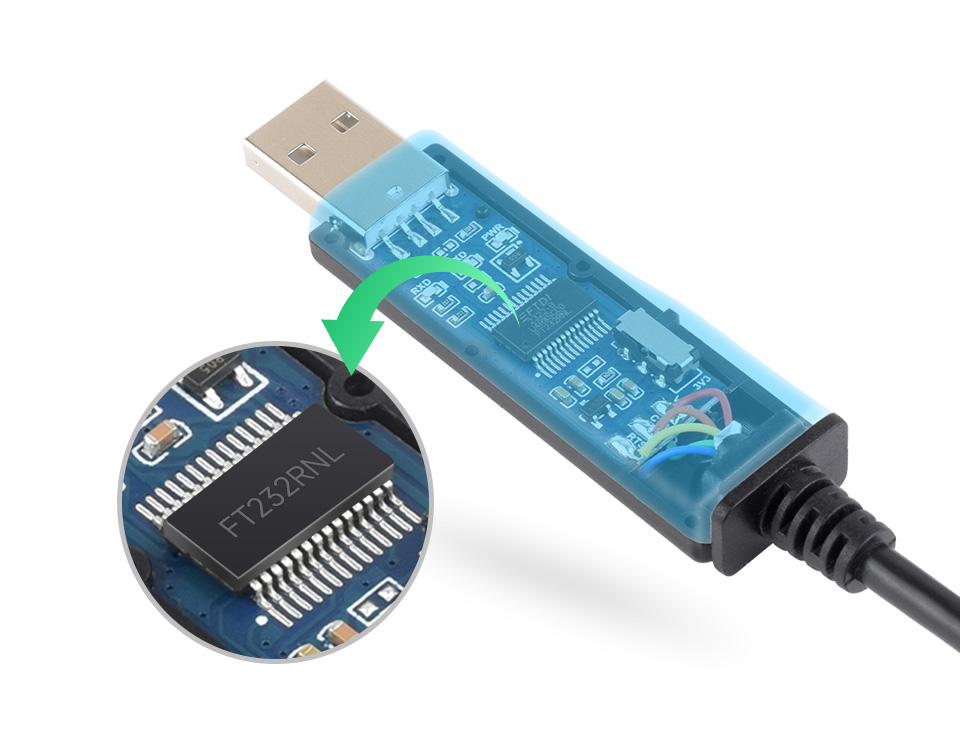

Adopts Original FT232RNL Chips, Providing Better Stability And Compatibility

Multiple systems support

Compatible with popular systems like Win7/8/8.1/10/11, Mac, Linux, Android...

Three LED Indicators

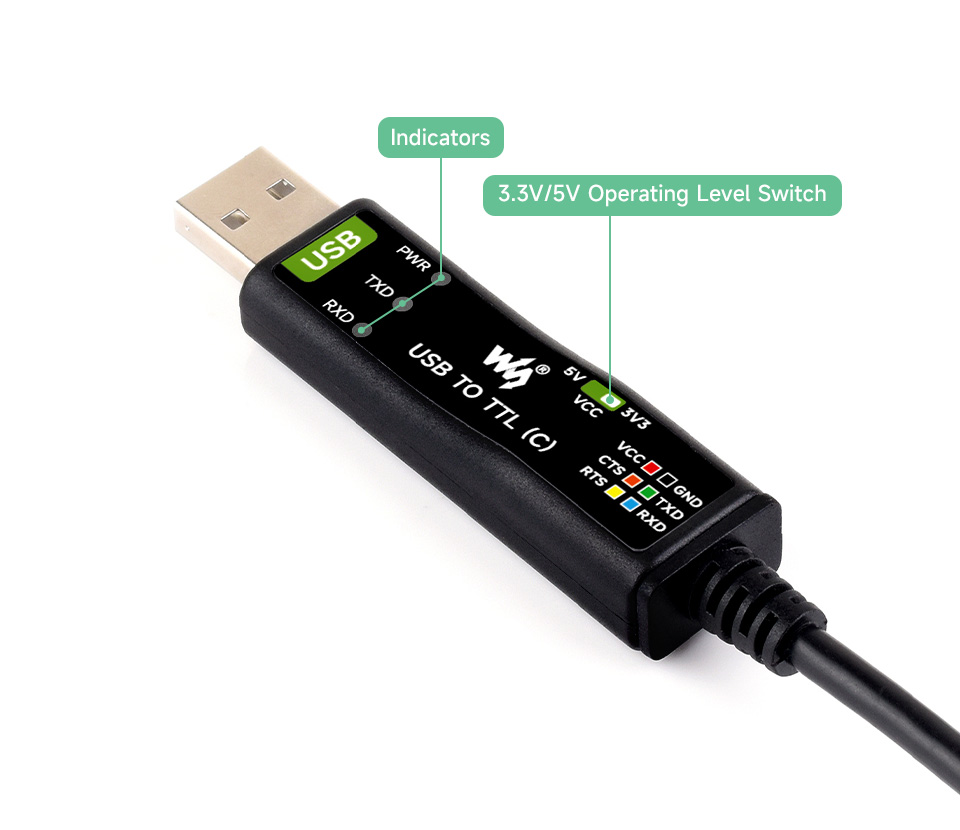

Easily checking the operating status, convenient for programming / debugging

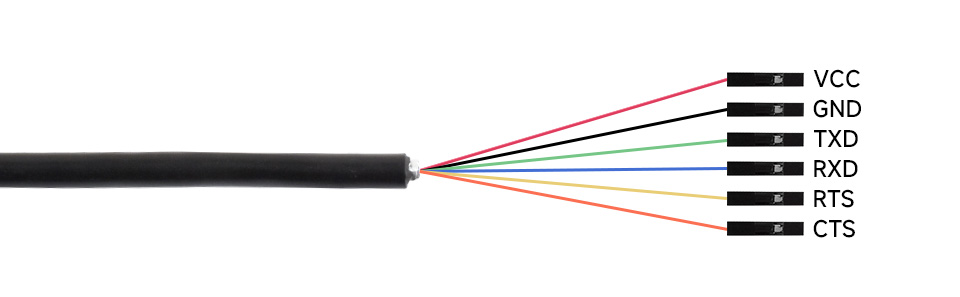

Pinouts Definition

VCC	3.3V or 5V output, configured by switch
GND	Ground
TXD	Connecting to MCU.RXD (signal direction: MCU.RX < < FT232 < < PC.TX)
RXD	Connecting to MCU.TXD (signal direction: MCU.TX > > FT232 > > PC.RX)
RTS	Connecting to MCU.CTS (signal direction: MCU.CTS < < FT232 < < PC.RST)
CTS	Connecting to MCU.RTS (signal direction: MCU.RTS > > FT232 > > PC.CTS)

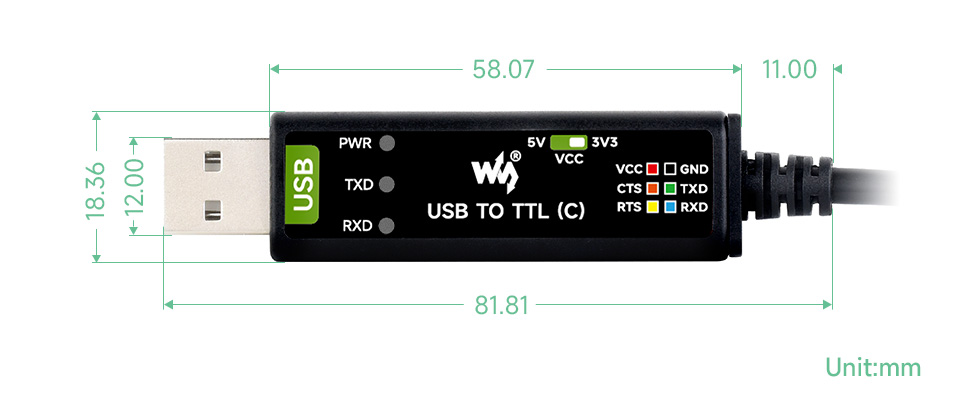

Outline dimensions

* The above dimensions are measured manually and may have some errors

Resources & Services

Wiki: www.waveshare.com/wiki/USB_TO_TTL_(C)

Selection guide

Partnumber	USB TO TTL	USB TO TTL (B)	USB TO TTL (C)	USB TO TTL (D)
Partnumber
PRODUCT CATEGORY	Industrial USB TO TTL converter		Industrial USB TO TTL serial cable
Chip	FT232	CH343G	FT232
Data rate	300bps ~ 3Mbps	50bps ~ 6Mbps	300bps ~ 3Mbps
Hardware flow	Supported			Not supported
OS support	Win7/8/8.1/10/11, Mac, Linux, Android
USB port	Connector: USB-A Protection: resettable fuse, ESD protection
UART port	Connector: 8PIN fool-proof header Protection: IO protection diode		Connector: separated 6pin female header Protection: IO protection diode	Connector: separated 4pin female header + SH1.0 3PIN fool-proof connector Protection: IO protection diode
Indicators	PWR: power indicator, turns on when there is USB connection and voltage is detected TXD: TX indicator, turns on while the USB port is sending data RXD: RX indicator, turns on while the device port is sending data back

Package Contents

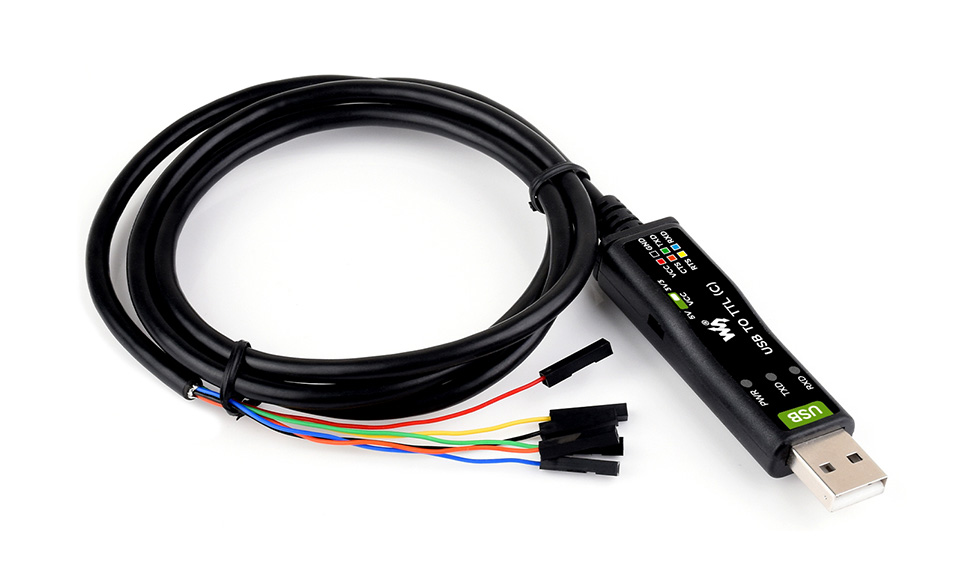

USB TO TTL (C) x1
