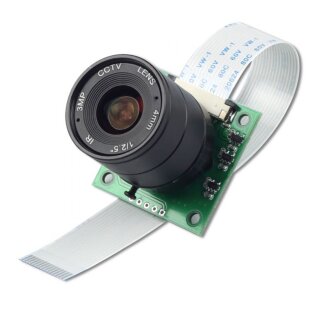

Arducam B0032 OV5647 Camera Board with CS mount Lens fully compatible with Raspberry Pi 4/3B+/3 Camera

Arducam B0032 OV5647 Camera Board with CS mount Lens fully compatible with Raspberry Pi 4/3B+/3 Camera

Artnr.: AC2-200320
HAN: B0032
Hersteller: Arducam

OV5647 Camera Board with CS mount Lens fully compatible with Raspberry Pi 4/3B+/3 Camera

33,90 €

inkl. 19% MwSt.

(28,49 € exkl. MwSt.)

zzgl.

ab Lager lieferbar (knapper Bestand)
Lieferzeit: 1 - 3 Arbeitstage (DE - Ausland abweichend)

Beschreibung
Kundenrezensionen

In order to meet the increasing need of Raspberry Pi compatible camera modules. The ArduCAM team now released a revision D add-on camera module which is fully compatible with official Raspberry Pi board. It optimizes the optical performance than the previous Pi cameras, and give user a much clear and sharp image. Also it provides the FREX and STROBE signals which can be used for multi-camera synchronize capture with proper camera driver firmware.

It attaches to Raspberry Pi by way of one of the two small sockets on the board upper surface. This interface uses the dedicated CSI interface, which was designed especially for interfacing to cameras. The CSI bus is capable of extremely high data rates, and it exclusively carries pixel data. The camera is supported in the latest version of Raspbian, Raspberry Pi's preferred operating system.

The board itself is tiny, at around 36mm x 36mm. The highlight of our module is that the Lens is replaceable compared to official one, making it perfect for mobile or other applications where size and image quality are important. It connects to Raspberry Pi by way of a short ribbon cable. The camera is connected to the BCM2835/BCM2836 processor on the Pi via the CSI bus, a higher bandwidth link which carries pixel data from the camera back to the processor. This bus travels along the ribbon cable that attaches the camera board to the Pi. The sensor itself has a native resolution of 5 megapixel, and has a fixed focus lens onboard. In terms of still images, the camera is capable of 2592 x 1944 pixel static images, and also supports 1080p30, 720p60 and 640x480p60/90 video.

Features:

High-Definition video camera for Raspberry Pi 4B, Pi 3B+, Pi 3B, Pi 2, Model A/B/B+
Omnivision OV5647 sensor in a fixed-focus module with replaceable Lens
Lens holder: CS mount
5MPixel sensor
Integral IR filter
Still picture resolution: 2592 x 1944
Max video resolution: 1080p
Max frame rate: 30fps
Support FREX/ STROBE feature
Size: 36 x 36 mm
15 cm flat ribbon cable to 15-pin MIPI Camera Serial Interface (CSI) connector
Visit www.ArduCAM.com for more wide angle fish eye lenses and get technical support.
The Camera Lens for Raspberry Pi Camera Board is LS-2718CS
The LS-2718 CS Lens Specification:

Package Including:

1pcs Camera Board /w CS mount Lens(LS-2718CS) fully compatible with official Raspberry Pi Camera board

1pcs 15cm 15pin FPC cable

NOTE:Raspberry Pi NOT INCLUDED

Additional Resources:

User Guide – Arducam 5MP OV5647 CS Mount Cameras for Raspberry Pi
Sensor Datasheet – OmniVision OV5647
Arducam Documentation – Arducam Cameras for Raspberry Pi
Blog – Arducam Cameras for Raspberry Pi
3D drawing

Versandgewicht:	0,07 kg
