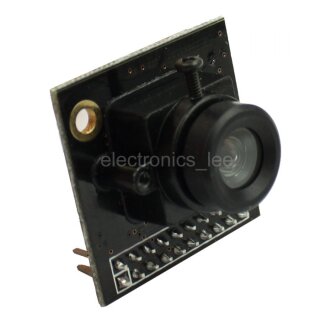

Arducam B0156 1/4" 3 Mega pixel M12 Mount OV3640 Camera Module with JPEG Output

1/4" 3 Mega pixel M12 Mount OV3640 Camera Module with JPEG Output

22,90 €

inkl. 19% MwSt.

(19,24 € exkl. MwSt.)

zzgl.

Features:

Onboard LDO regulators for 2.8V and 1.8V
Single 3.3V power input
2.54mm (0.1 inch) standard pin out
Open source project www.ArduCAM.com supported
active array size: 2048 x 1536
power supply:
core: 1.5VDC + 5% (internal regulator)
analog: 2.6 ~ 3.0V
I/O: 1.7 ~ 3.0V
output formats :
(8-bit): YUV(422/420) / YCbCr422,
RGB565/555/444, CCIR656,
8-bit compression data,
8/10-bit raw RGB data
lens size: 1/4"
input clock frequency: 6 ~ 27 MHz
shutter: rolling shutter
maximum image transfer rate:
3 megapixel (2048×1536): 15 fps (and any size scaling down from 3 megapixel)
XGA(1024×768): 30 fps
scan mode: progressive
pixel size: 1.75 µm x 1.75 µm
image area: 3626 µm x 2709 µm
Interface: Parallel RAW,RGB,YUV,JPEG output
External 1/4 inch high quality M12x0.5 lens

Documents:

Code Reference:

Additional Resources:

Sensor Datasheet – OmniVision OV3640
Application Note – OV3640 Camera Module Software
Lens Options – Arducam M12 Mount Lens Kit, Arducam Low Distortion M12 Mount Lens Kit

Versandgewicht:	0,04 kg
