Arducam B0280 High Quality Complete USB Camera Bundle
Beschreibung
Arducam has been a professional designer and manufacturer of SPI, MIPI, DVP and USB cameras since 2012. We also offer customized turnkey design and manufacturing solution services for customers who want their products to be unique.

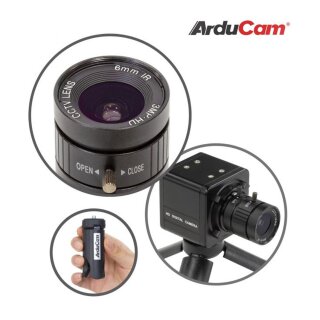

Arducam B0280 is a new member of the Arducam's USB camera family. It's a 12MP, based on the 1/2.3" Sony IMX477 image sensor, UVC compliant, 6mm USB 2.0 camera with the metal shell.
No longer be anxious about installing the driver! The native UVC drivers of Windows, Linux and Mac shall be compatible with this camera so that it does not require extra drivers to be installed.
- More than HD: This camera adopts 12MP IMX477 sensor for sharp image and accurate color reproduction
- Wider Angle of View: Rotate the zoom ring, focus ring and aperture ring to get a clear image in different focus distance with a field of view 65°.
- High Frame Rates: MJPG 4032(H) x 3040(V)
- Plug&Play: UVC-compliant, just connect the camera to PC computer, laptop, Android device or Raspberry Pi with the USB cable without extra drivers to be installed.
- Applications: Widely used for the video surveillance system, live streaming, record lesson and conference, and other vision applications.
- Serial Number: Supports modifying the Serial Number.
- Video conference
- Home video surveillance system
- Live streaming
- Record lesson and conference
- ??
Camera
- Sensor: 1/2.3" IM477
- Resolution: 4032(H) x 3040(V) 12.3MP
- Data Format: MJPG
- Frame Rate: 4032×3040@10fps; 3840×2160@20fps; 2592×1944@30fps; 2560×1440@30fps; 1920×1080@60fps; 1600×1200@50fps; 1280×960@100fps; 1280×760@100fps; 640×480@80fps
Lens
- Field of View (FOV): 65°
- Lens Mount: CS
- Focal Length:6mm
- Back Focal Length: 7.53mm
- MOD: 0.2m
Functionality and Compatibility
- Auto Controlled Features: Saturation, Contrast, Acutance, White balance, Exposure.
- System Compatibility: Windows, Linux, Mac, and Android with UVC
Power
- Power Supply: USB powered 5V
- Working Current: MAX 200mA
Physical
- Operating Temp.: -4°F~158°F (-20°C~+70°C).
- Dimension: 50mmx50mmx85mm
- Cable Length: default 6.56ft (2M)
- 1 × 12MP IMX477 6mm lens USB 2.0 camera with full metal shell
- 1 × 6.56ft (2M) USB 2.0 cable
