Arducam B0288 High Quality Complete USB Camera Bundle
Artnr.: AC2-202880

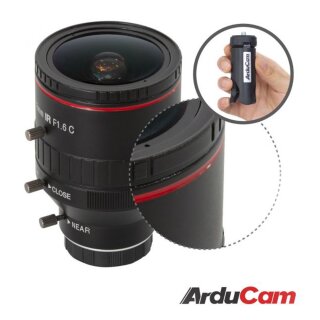

Arducam High Quality Complete USB Camera Bundle, 12MP 1/2.3 Inch IMX477 Camera Module with 2.8-12mm Varifocal Lens C20280M12, Metal Enclosure, Tripod and USB Cable

239,00 € inkl. 19% MwSt.
200,84 € exkl. MwSt.
ab Lager lieferbar

Lieferzeit: 1 - 3 Arbeitstage

Beschreibung

Arducam has been a professional designer and manufacturer of SPI, MIPI, DVP and USB cameras since 2012. We also offer customized turnkey design and manufacturing solution services for customers who want their products to be unique.

Arducam B0288 is a new member of the Arducam's USB camera family. It's a 12MP, based on the 1/2.3" Sony IMX477 image sensor, UVC compliant, 2.8-12mm USB 2.0 camera with the metal shell.

No longer be anxious about installing the driver! The native UVC drivers of Windows, Linux and Mac shall be compatible with this camera so that it does not require extra drivers to be installed.

Camera

  • Sensor: 1/2.3" IM477
  • Resolution: 4032(H) x 3040(V) 12.3MP
  • Data Format: MJPG
  • Frame Rate: 4032×3040@10fps; 3840×2160@20fps; 2592×1944@30fps; 2560×1440@30fps; 1920×1080@60fps; 1600×1200@50fps; 1280×960@100fps; 1280×760@100fps; 640×480@80fps

Lens

  • Field of View (FOV): 120°(H)-38°(H) on 1/2.3" IMX477 High Quality Camera
  • Lens Mount: C
  • Focal Length:2.8-12mm
  • Aperture: F1:1.6
  • MOD: 0.3m
  • Focus Type: Manual

Functionality and Compatibility

  • Auto Controlled Features: Saturation, Contrast, Acutance, White balance, Exposure.
  • System Compatibility: Windows, Linux, Mac, and Android with UVC

Power

  • Power Supply: USB powered 5V
  • Working Current: MAX 200mA

Physical

  • Operating Temp.: -4°F~158°F (-20°C~+70°C).
  • Dimension: 50mmx50mmx120mm
  • Cable Length: default 6.56ft (2M)

3D drawing

  • Video conference
  • Home video surveillance system
  • Live streaming
  • Record lesson and conference
  • ??
  • 1 × 12MP IMX477 2.8-12mm varifocal USB 2.0 camera with full metal shell
  • 1 × 6.56ft (2M) USB 2.0 cable
  • 1 pcs mini tripod stand

Versandgewicht: 0,46 Kg
