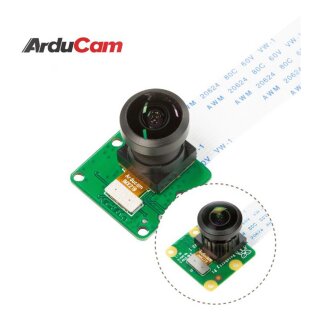

Arducam B0287 IMX219 Camera Module with fisheye lens for NVIDIA Jetson Nano/Xavier NX

Arducam B0287 IMX219 Camera Module with fisheye lens for NVIDIA Jetson Nano/Xavier NX

Artnr.: AC2-202870
HAN: B0287
Hersteller: Arducam

Arducam IMX219 Camera Module with fisheye lens for NVIDIA Jetson Nano/Xavier NX

33,90 €

inkl. 19% MwSt.

(28,49 € exkl. MwSt.)

zzgl.

ab Lager lieferbar (knapper Bestand)
Lieferzeit: 1 - 3 Arbeitstage (DE - Ausland abweichend)

Beschreibung
Kundenrezensionen

This Arducam IMX219 camera module is mainly designed for NVIDIA® Jetson Nano/Xavier NX and also can be used on other hardware like ARM, DSP, FPGA, etc. The highlight of this camera is its wide field of view.

Note: This camera is released for official Jetson Nano/Xavier NX boards. It can also be used on the Raspberry Pi Compute Module (like CM3, CM3+) , but it does not support the standard Raspberry Pi models (like Raspberry Pi 3/3B+/4) and other third-party boards.

More Than HD: This camera adopts 1/4" 8 Megapixel IMX219 sensor for sharp image, Max. still resolution is 3280 x 2464 pixels.
Wider Angle of View: This camera module has 220°(H) wide-angle M12 Lens, which provides a much wider Field of View compared to the stock lens on V2 camera module.
Frame Rates: 21fps@8MP, 60fps@1080P, 120fps@720P.
IR Sensitivity: Integral IR filter, visible light only; Focal Length: 0.76 mm

Sony 8MP IMX219 Sensor
Optical Format: 1/4 inch
Frame Rate: 30fps@8MP, 60fps@1080p, 120fps@720p
Data Format: RAW8/RAW10
Lens part number:M32076M20
EFL: 0.76mm
F.NO: 2.1
Focus Type: Fixed Focus
View Angle: 220(H)
Interface: MIPI CSI-2 2-lane/4-lane
IR Sensitivity: Integral IR Filter, visible light only

1pcs Arducam IMX219 Camera Module with fisheye lens for NVIDIA Jetson Nano/Xavier NX
1pc 15cm 15pin FPC cable
1pc 30cm 15pin-22pin FPC cable

Datasheet

User Guide

3D Drawing
