Arducam B0306 Raspberry Pi Official Camera Module V3-12MP IMX708 Autofocus Camera with Acrylic Case

Arducam B0306 Raspberry Pi Official Camera Module V3-12MP IMX708 Autofocus Camera with Acrylic Case

Artnr.: AC2-203060
HAN: B0306
Hersteller: Arducam

Arducam Raspberry Pi Official Camera Module V3-12MP IMX708 Autofocus Camera with Acrylic Case

52,90 €

inkl. 19% MwSt.

(44,45 € exkl. MwSt.)

bestellbar
Lieferzeit: ca. 3 Monate (DE - Ausland abweichend)

Beschreibung
Kundenrezensionen

Raspberry Pi Camera Module 3 is the latest camera model released by Raspberry Pi Official in 2023. The camera adopts Sony 11.9MP IMX708 Image Sensor which can be used to take full HD video as well as stills photographs, and features an HDR mode up to 3 megapixels.
The camera integrates IR-cut filter and adopts Phase Detection Autofocus. It is fully supported by the libcamera and Picamera2 library. Camera Module 3 is compatible with all Raspberry Pi computers.
Arducam is committed to creating diverse and convenient camera solutions. We designed various accessories for the Raspberry Pi Camera Module 3. Among them, the Arducam camera enclosure case is fully compatible with Raspberry Pi V1/V2/V3 and Arducam 16MP/64MP cameras.

Applications

Wildlife Photograph
Learning Camera
High-Quality Monitor
AI applications
Vision Transition Project

Features

Raspberry Pi Official Camera Module 3: Raspberry Pi Camera Third Generation: Back-illuminated and stacked CMOS 12MP high resolution Image Sensor (Sony IMX708) with HDR mode for up to 3-megapixel output
High-quality Images: Max Resolution: 4608 × 2592. Along with built-in 2D DPC and QBC Re-mosaic function, offering High signal-to-noise ratio (SNR)
PDAF&CDAF System: Mixture of Phase Detection Autofocus and Contrast Detection Autofocus . By reserving PDAF and CDAF pixels on the photosensitive element, then the offset value of the focus is calculated from the phase difference and check the highest contrast to achieve accurate focusing
MIPI CSI-2 Communication: MIPI CSI-2 2-wire serial communication (supports I2C fast mode and fast mode plus) and 2-wire serial control of focus mechanism

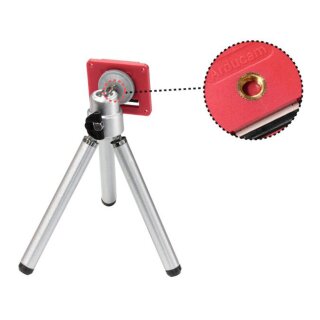

Acrylic Case: Arducam camera enclosure case designed for 25*24mm, v1/v2, and the official camera module V3 boards (Standard, Wide, NoIR and NoIR Wide).

Specifications

Lens

Focus Type	Motorized
Focal Length	4.74 mm
F.NO	F1.8
Field of View(FOV)	75°(D)x66°(H)x41°(V)
Lens Mount	/

Electrical and Mechanical

Camera Board Size	25 × 24mm

Package Including

1 x Raspberry Pi Official camera module v3(Wide Angle) with 1×150mm 15-15pin and 1× 15-22pin FFC cable
1 x ABS Camera Case

Notes

The package contains small contents, please keep it away from children to avoid accidental ingestion
After receiving the package, please confirm whether the contents of the package are consistent with the description
No Raspberry Pi board is included in the package

Documentation

Raspberry Pi V3 IMX708 Camera Variants & Peripherals

Blog

Arducam Accessories for Raspberry Pi V3 IMX708 Camera
