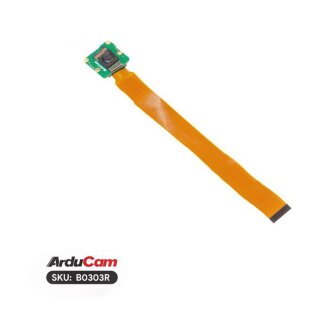

Arducam B0303R 12.3MP 477M MINI Wide Angle Camera Module for Raspberry Pi

Arducam B0303R 12.3MP 477M MINI Wide Angle Camera Module for Raspberry Pi

Artnr.: AC2-203038
HAN: B0303R
Hersteller: Arducam

Arducam 12.3MP 477M MINI Wide Angle Camera Module for Raspberry Pi

45,90 €

inkl. 19% MwSt.

(38,57 € exkl. MwSt.)

zzgl.

bestellbar
Lieferzeit: ca. 3 Monate (DE - Ausland abweichend)

Beschreibung
Kundenrezensionen

IMX477 camera modules have the high resolution. But most of IMX477 cameras generally have larger camera boards and larger lenses. In order to make the IMX477 camera more flexible and space-saving, we have developed this camera based on the 477M image sensor. The 477M and IMX477 have exactly the same optical size and pixels, and the frame rate at different resolutions is also the same. We equipped a 1/2.3 inch 6p lens on this basis. The camera board is about 24x25mm, which is the size of the Raspberry Pi v1/v2 camera board. Through the specially equipped lens and 477M sensor, we have achieved the compatibility of high pixel and tiny size .

Apllications

DSLR Camera Control
Time-lapse Machine
Security System
Smart Video Doorbell
Face Recognition
Instant (Polaroid-Style) Camera, etc.

Specifications

Lens

Focus Type	Fixed Focus
Focal Length	2.75mm
F.NO	F2.8
Field of View(FOV)	120°(D)
Lens Mount	/

Electrical and Mechanical

Camera Board Size

25 × 24mm

Package Including

1 x 12.3MP 477M Camera Module for Raspberry Pi
1 x 150mm 15pin to 22pin flex cable
1 x 150mm 22pin to 22pin flex cable

Note

Raspberry Pi board is not included in the package

Documentation
