PRODUCT DESCRIPTION

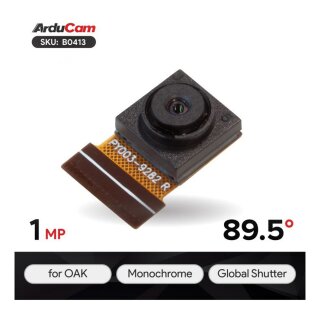

OmniVision's OV9282 is a 1MP (1280×800) global shutter grayscale image sensor. Arducam OV9282 camera module can be used in almost all OAK products (OAK-D, OAK-D S2 OAK-D Pro, OAK-D-PoE, OAK-D S2 PoE, etc.) as the stereo camera pair.
It is also compatible with OAK FFC boards (OAK-FFC-3P, OAK-FFC 4P), so you can easily evaluate its sensor and optics performance via a camera board and a flex cable.
SPECIFICATION
|
Sensor |
OV9282 |
|
Optical Size |
Type 1/4" |
|
Pixel Size |
3µm×3µm |
|
Shutter Type |
Global Shutter |
|
Max Sensor Resolution |
1280 x 800 |
|
Color Filter Array |
None (Monochrome) |
|
Resolution and Frame Rate |
RAW8/RAW10: 640×480@260fps, 1280×720@144fps, 1280×800@120fps |
|
Supported Platform |
Pi 4/3/Zero/CM3/CM4 |
|
Output |
RAW8/RAW10 |
|
Focus Type |
Manual |
|
Focus |
50cm~INF |
|
Lens |
f/2.0; EFL: 2.35mml; FoV: 89.5° (D) |
|
IR Sensitivity |
build-in 650nm IR-cut filter, sensitive to visible light only |
|
Dimensions |
25mm × 24mm |
DOCUMENTATIONS
PACKING LIST
-
1 x OV9282 Monochrome Global Shutter Camera Module for DepthAI OAK
