Beschreibung

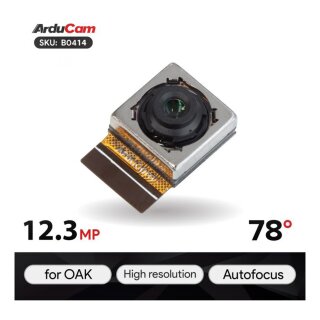

Sony's IMX378 is a 12MP (4056x3040) rolling shutter color image sensor. Arducam IMX378 camera module can be used in almost all of the OAK products (OAK-D, OAK-D S2, OAK-D Pro, OAK-D-PoE, OAK-D S2 PoE, etc.) as the color camera.
It is also compatible with OAK FFC boards (OAK-FFC-3P, OAK-FFC4P), so you can easily evaluate its sensor and optics performance via a camera board and a flex cable.
Features
Specification
|
Sensor |
IMX378 |
|
Optical Size |
Type 1/2.3'' (Diagonal 7.857 mm) |
|
Pixel Size |
1.55µm×1.55µm |
|
Shutter Type |
Rolling Shutter |
|
Color Filter Array |
Bayer RGB |
|
Max Sensor Resolution |
4056 x 3040 |
|
Resolution and Frame Rate |
4056x3040@30fps, 3840x2160@30fps, 1920x1080@60fps |
|
Supported Platform |
OAK D series (OAK-D, OAK-D S2, OAK-D Pro, OAK-D-PoE, OAK-D S2 PoE, etc.) and OAK FFC boards (OAK-FFC-3P, OAK-FFC-4P) |
|
Focus Type |
Autofocus |
|
Focus |
10cm~INF |
|
Lens |
f/1.8, EFL: 4.81mm, FoV: 78° (D) |
|
IR Sensitivity |
Built-in 650nm IR-cut filter, sensitive to visible light only |
|
Module Dimensions |
10.8mm × 15.82mm |
Documentations
3D Drawing
Pack List
1 x IMX378 Autofocus Camera Module for DepthAI OAK
