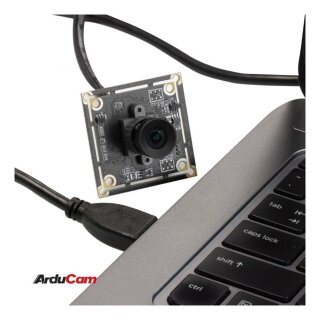

Arducam B0438 2MP AR0230 WDR USB Camera Module Manual Focus M12 Lens for Raspberry Pi

Arducam B0438 2MP AR0230 WDR USB Camera Module Manual Focus M12 Lens for Raspberry Pi

Artnr.: AC2-204380
HAN: B0438
Hersteller: Arducam

2MP AR0230 WDR USB Camera Module Manual Focus M12 Lens for Raspberry Pi, Windows, Linux, Mac OS, Android

91,90 €

inkl. 19% MwSt.

(77,23 € exkl. MwSt.)

bestellbar
Lieferzeit: ca. 3 Monate (DE - Ausland abweichend)

Beschreibung
Kundenrezensionen

This camera is the Arducam NEW UVC camera.The max resolution&frame rate is 1920(H)x1080(V)@30fps. The camera is based on high-quality 2MP AR0230 WDR image sensor. Support MJPG/YUV2/H.264 output format. Besides, we have equipped a wide-angle M12 Lens for this camera module. Arducam team is committed to creating more convenient and more efficient camera solutions. We have expanded the using scope of the image sensor, enabling the camera to realize your various projects. The camera is equipped with a 95°(H) M12 lens, allowing you to use it for more applications. It is compatible with Windows, Linux, Android, and MAC and no additional drivers are required. If you have any other requirements, please communicate with our sales team, we look forward to further cooperation with you.

Applications

3D Scanner
VR Camera
Lightburn Laser Engraver Machine
Surveillance
Video System

Features

HDR and WDR: Based on 2MP AR0230 Color COMS image sensor with a 96dB wide dynamic range. Max resolution: 1920x1080. Support MJPG/YUY2/H.264 output format.
HD M12 Lens: Armed with a wide angle High-quality 95-degree view angle (Horizontal) M12 Lens with 650nm IR-cut filter.
Manual Focus: A manual focus camera allows you to use it in situations such as macro photographs, low light, etc. where another focus type is difficult to achieve.
Plug & Play: UVC-compliant, support Windows XP/7/8/10, Linux, Mac OS, and Andriod devices with UVC, connect the camera to PC, laptop, or Raspberry Pi with the USB cable without extra drivers to be installed.
More Applications: This 38×38mm camera board can be installed in the most hidden and narrow position for a home video surveillance system, day-night low light vision camera system, dashcam, or other machine vision application.

Specifications

Sensor	AR0230
Resolution	2MP
Color Filter Type	Color
Shutter Type	Rolling shutter
Optical Size	1/2.7"
Output Format	MJPG/YUY2/H.264
Pixel Size	3.0 μm x 3.0 μm
Sensor Active Area	1920(H)x1080(V)
Frame Rate	MJPG 30fps@1920 x 1080/1280 x 720/640 x 480/320 x 240; YUY2 5fps@1920 x 1080/1280 x 720; 25fps@640 x 480/640 x 360/320 x 240; H.264 30fps@1920 x 1080/1280 x 720/640 x 480/640 x 360/320 x 240;
Focus Type	Manual Focus
FOV	95°(H)
Lens Mount	M12*P0.5
F.NO	2.8±5%
E.F.L	2.8mm
Interface	USB 2.0 device
Connector	B4B-ZR
UVC Compliant	no additional drivers required
Operating Voltage	DC 5V +/- 5%
Working Current	Max 300mA
Operating Temp.	-4℉-158℉(-20°C to 70°C)
Camera Board Size	38mm x 38mm x 21mm(Hole Pitch: 34mmx34mm, 28mmx28mm)
Audio	/
Supported OS	Windows, Linux, Android and MAC
Sample Application	Amcap-Windows Camera application for Video and Still Capture
UVC Controls	Brightness, Contrast, Hue, Saturation, Sharpness, Gamma, White Balance (Auto), Backlight Contrast, Gain, Exposure (Auto)

Package Including

1 x Arducam 2MP USB Camera Module with M12 Lens
1 x USB Cable (1M)
1 x Quick Start Guide

Notes

The package contains small contents, please keep it away from children to avoid accidental ingestion
After receiving the package, please confirm whether the contents of the package are consistent with the description.
