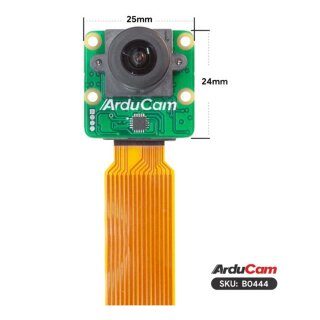

Arducam B0444 2MP IMX462 Color Ultra Low Light STARVIS Camera Module with 141°(H) Wide-Angle M12 Lens for Raspberry Pi

Artnr.: AC2-204440
HAN: B0444
Hersteller: Arducam

2MP IMX462 Color Ultra Low Light STARVIS Camera Module with 141°(H) Wide-Angle M12 Lens for Raspberry Pi

45,90 €

inkl. 19% MwSt.

(38,57 € exkl. MwSt.)

zzgl.

bestellbar
Lieferzeit: ca. 3 Monate (DE - Ausland abweichend)

Beschreibung
Kundenrezensionen

The ultra low light image sensor can receive more light in extremely low light conditions, making it widely applicable to special lighting projects such as astrophotography. This camera is based on the SONY IMX462 STARVIS ultra low light image sensor. The sensor has very high performance for better image quality in low-light environments.
The camera is equipped with a 141.4°(HFOV) wide-angle M12 Lens. A manual focus camera allows you to use it in situations such as macro photographs, low light conditions, etc. Meanwhile, this camera is native to Raspberry Pi and fully supported by libcamera and Picamera2 library.
Arducam is committed to creating diverse and convenient camera solutions for embedded camera users. We are not only engaged in the production and development of optical products but also strive to provide complete solutions for embedded cameras, optical components, etc.

Applications

Astrophotography
Surveillance cameras
FA cameras
Industrial/Agricultural cameras
Autonomous mobile robots, UGV/UAV, ADAS, etc.

Features

Ultra Low Light: Based on Sony STAVIS Ultra Low Light IMX462 image sensor, which is capable of capturing visible and near-infrared images with very low noise even in extremely low-light conditions or no light (near 0 lux).
High G Sensitivity: Up to 10471 G sensitivity of IMX462 Camera. Gravity sensitivity is an important indicator of camera performance in low light conditions. Higher the G sensitivity, better is the low light performance.
Better NIR Sensitivity: NIR(near infrared) imaging performance is one of the most crucial features for smart surveillance, smart traffic monitoring, and agricultural applications. IMX462 image sensor can achieve ~1 NIR sensitivity, which enables it to accept more of the near-infrared spectrum, improving image quality under special lighting conditions
Quality Images/Videos: Maximum frame rate in Full HD 1080p mode: 60 fps.
Arducam Pivariety Solution: Arducam Pivariety Solution is a well-tuned hardware ISP camera solution that brings the official Pi camera experience to More sensors with enhanced performance and works as a standard V4L2 device.

Specifications

Image Sensor	IMX462
Resolution	2MP
Optical Size	1/2.8''(6.46mm sensor diagonal)
Number of effective pixels	1920(H) × 1080(V)
Pixel Size	2.9μm × 2.9μm
Support Platform	Raspberry Pi 4/3/Zero/CM3/CM4
Shutter Type	Rolling Shutter
Color Filter Array	Quad-Bayer RGB
Frame Rate	1920x1080@60fps
Output Format	RAW10
F.NO	F2.1±10%
Focus Type	Manual Focus
Focal Length	2.1±5%mm
Lens Size	(2G5P) M12 Lens
Field of View(FOV)	161°(D)x141.4°(H)x81.7°(V)
IR Sensitivity	Integral IR-cut Filter, visible light only
Camera Board Size	24 x 25mm

Package Including

1 x Arducam 2MP IMX462 Ultra Low Light camera module with M12 Lens
1 x 150mm 15pin-22pin FPC Cable
1 x 150mm 22pin-22pin FPC Cable

Notes

The package contains small contents, please keep it away from children to avoid accidental ingestion
After receiving the package, please confirm whether the contents of the package are consistent with the description
No Raspberry Pi board is included in the package
This camera is native supported by Raspberry Pi, you don't need additional driver to run it, but you will need some configuration, please refer to the following doc.
