Arducam B0456 1.58MP IMX296 Color Global Shutter Camera Module for DepthAI OAK

1.58MP IMX296 Color Global Shutter Camera Module for DepthAI OAK

74,90 €

inkl. 19% MwSt.

(62,94 € exkl. MwSt.)

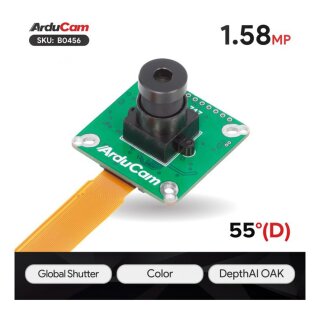

The Arducam 1.58MP IMX296 Color Global Shutter MIPI camera module is designed for DepthAI OAKFFC baseboard (OAK-FFC-4P, OAK-FFC-3P)

Features

Global Shutter: Based on 1.58MP IMX296 Color Global Shutter image sensor.
Replaceable M12 Lens: Equipped with a 55°(DFOV) M12 Lens. With 13mm Lens Holder.
Manual Focus: Especially suitable for special photographic conditions such as low light and macro, etc.
Cost-effective: Second-to-none choice for given image and cost. High Performance with low consumption.

Image?Sensor	IMX296
Resolution	1.58MP
Optical Size	1/2.9"
Number?of?effective?pixels	1440(H) × 1080(V)
Pixel Size	3.45μm × 3.45μm
Support Platform	OAK-FFC-4P, OAK-FFC-3P
Shutter?Type	Global Shutter
Color?Filter Array	Color
Max Frame Rate	1440(H) × 1080(V)@60 fps
Output?Format	RAW10
F.NO	F2.0
Focus Type	Manual Focus
Focal Length	6mm
Lens Size	M12
Field of View(FOV)	55°D×45°H×35°V
IR Sensitivity	Integral IR-cut Filter, visible light only
Camera?Board?Size	38*38mm

1 x Arducam IMX296 Global shutter Color MIPI camera module 22pin for DepthAI OAK
1 x 150mm 22pin-26pin FPC cable

The package contains small contents, please keep it away from children to avoid accidental ingestion
After receiving the package, please confirm whether the contents of the package are consistent with the description
No Platform board is included in the package
