D-Robotics RDK X5 4GB

Artnr.: DR1-028741-P
Hersteller: D-Robotics

D-Robotics RDK X5 Development Board, Powered By Sunrise 5 Chip, Octa-core Cortex A55 Processor, 10 TOPS Computing Power, Options For 4GB/8GB RAM

Variante: 89,90 €Board

109 €Basic Kit

139 €Developer Kit

339 €Roarm-M3 Kit

89,90 €

inkl. 19% MwSt.

(75,55 € exkl. MwSt.)

ausverkauft

Bitte gewünschtes Modell auswählen.

Beschreibung
Kundenrezensionen

Prohibited by the module manufacturer D-Robotics, we're not allowed to ship this product, or to provide any tech support, to the following countries/regions: Iran, North Korea, Cuba, Sudan, Syrian.

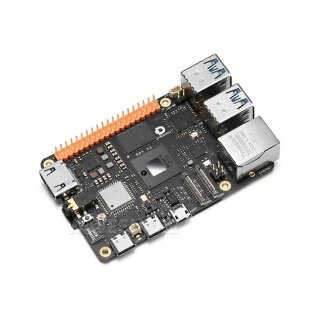

RDK X5 Development Board

Simple and Easy-to-Use

Powered by the 10 TOPS Sunrise 5 chip, the D-Robotics RDK X5 is an all-in-one development kit for intelligent computing and robotics. With versatile interfaces and support for advanced models like Transformer, RWKV, Occupancy, and Stereo Perception, it accelerates the deployment of cutting-edge AI applications.

Kit Selection

Kit	RDK X5 board only	Basic Kit	Developer Kit	Roarm-M3 Kit
RDK X5 4GB/8GB	√	√	√	√
Basic Kit Accessories Pack:(64GB TF card, heatsink, card reader, Type-A to Type-C cable, and 27W Type-C power supply)		√	√	√
RDK stereo camera module (with FPC cables)			√
RoArm-M3-S robotic arm kit				√

RDK X5 Basic Kit, Developer Kit content introduction

RDK X5 4GB/8GB Basic Kit This kit includes RDK X5 development board (options for 4GB/8GB RAM), with accessories pack including TF card (64GB), heatsink, card reader, Type-A to Type-C cable, and 27W Type-C power supply (with adapters), to help users get started quickly.

RDK X5 Development Board, Developer Kit content introduction

RDK X5 4GB/8GB Developer Kit This kit includes RDK X5 development board (options for 4GB/8GB RAM) and RDK stereo camera module (with FPC cables), with accessories pack including TF card (64GB), heatsink, card reader, Type-A to Type-C cable, and 27W Type-C power supply (with adapters), suitable for applications that require image capture and visual development..

RDK X5 Development Board, Roarm-M3 Kit content introduction

RDK X5 4GB/8GB Roarm-M3 Kit This kit includes RDK X5 development board (options for 4GB/8GB RAM), and RoArm-M3-S kit which is a 5 + 1 DOF smart robotic arm designed for innovative applications, with accessories pack including TF card (64GB), heatsink, card reader, and 27W Type-C power supply (with adapters). The RoArm-M3-S kit adopts lightweight structure design with an effective payload of 0.2kg@0.5m, it can be flexibly mounted on various mobile platforms, supports flexible expansion and secondary development.

Specifications

CPU	Octa-core Cortex A55
BPU	10 TOPS
RAM	Options for 4GB / 8GB
Storage	Onboard 1G bit NAND
Storage	With TF card slot, supports UHS-I mode
Connectivity	4 × USB 3.0 Host Type-A
	1 × USB 2.0 Device Type-C
	1 × USB 2.0 UART Micro-B
	1 × CAN FD
	40 PIN header, onboard 28 GPIOs, 3.3V logic level, supports protocols such as SPI、I2C、I2S、PWM、UART, etc
Display	1 × 4-lane MIPI DSI interface, supports MIPI V1.2 protocol
Display	1 x HDMI Type-A interface, up to 1080P/60fps
Camera	2 × 4-lane MIPI CSI interface, supports MIPI V2.1 protocol
Audio	Onboard 3.5mm standard audio jack with input and output support
Network Comm	1 x RJ45 interface, supports 1000M Ethernet and PoE
	2.4/5GHz dual-band wireless LAN, supports Wi-Fi 6 protocol
	Supports Bluetooth 5.4 protocol
	Onboard high-performance antenna and IPEX connector
Power	5V/5A DC power input, Type-C connector
Power	Provides external power supply capabilities of 5V / 3.3V on 40PIN header
Operating Temperature	-20°C ~ 60°C
Dimensions	85 × 56 × 20 (mm)

Rich interfaces, convenient and easy to use

Powerful AI Computing Power And Algorithms

High cost-effective intelligent computing platform

Supports deployment of large models such as Transformer, RWKV, and CLIP on the edge to empower robots with advanced intelligence
Natively supports the Volcano Engine’s LLM Gateway with free traffic included, exploring the deep intelligence of robots through the end-cloud integration models
Provides dedicated and efficient algorithms such as Occupancy, Stereo, Perception, YOLO, World, etc, open-source, one-click deployment ready
From CPU to BPU, a comprehensive performance leap significantly enhances the execution speed of intelligent algorithms, providing exceptional computational support for robots

Advantageous Algorithm Matrix

Providing Innovative Solutions for the Robot Era

From intelligent perception to autonomous decision-making, cutting-edge algorithms inject core power into the robotics industry, helping achieve precise and efficient technological breakthroughs.

A Minimalist Robotics Development Experience

One Type-C cable can handle hundreds of applications

A single Type-C cable covers the entire development process including system programming, demo execution, application development, desktop display, and hardware monitoring, without the need for complex peripherals and wiring
RDK is not only a development board, but also a full-stack robotics development platform featuring RDK OS, RDK Nodehub, RDK Studio, and RDK Cloud, making robotics development easier
Onboard rich robotics development interfaces such as mono/stereo MIPI, USB3.0 × 4, CAN, audio/video, and PWM, etc, eliminating the need for external conversion modules

A new way to upgrade boards

Automatically update the latest RDK OS; a single data cable is all you need for a quick board upgrade

Find the card slot on the back of the board and insert the TF card.

RDK X5 Development Board, Connect the card board to the computer using a Type-C cable

Use a Type-C cable to connect the board to the computer.

RDK X5 Development Board, First press and hold the switch of the board, and then connect it to the computer at the same time

First, press and hold the switch of the board, and then connect to the computer at the same time.

RDK X5 Development Board, Connect the card board and power supply with another Type-C data cable, and release it after 3-5 seconds of power on

Use another Type-C cable to connect the board to the power supply; release after powering on for 3-5 seconds.

Quick Application Startup

One-click startup of built-in applications on the board, allowing you to focus on development work

Unified management of your development boards

After adding the board to the software, you can quickly retrieve the status of each board

Comprehensive Community Ecosystem Support

Empowering your robotics journey every step of the way

With hundreds of accessories and robotics kits, we’re building a rich and diverse ecosystem
Join a community of over 100,000 developers — where experts gather, questions get answered, and support is always within reach
With rich content and diverse competitions, from theory to hands-on practice, helping you stay ahead of industry trends and enhancing your technical skills

NodeHub

Intelligent Robot Application Center

An intelligent robotics application center tailored for robotics enthusiasts, aiming to empower them to develop their own intelligent robots in a simpler, more efficient, and open manner
