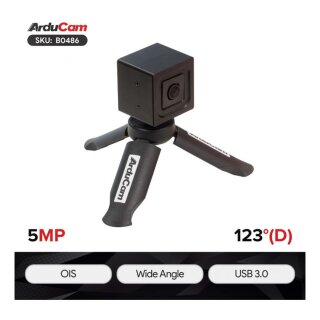

Arducam B0486 5MP IMX335 OIS USB 3.0 Camera Module

Arducam B0486 5MP IMX335 OIS USB 3.0 Camera Module

Artnr.: AC2-204860
HAN: B0486
Hersteller: Arducam

Arducam 5MP IMX335 OIS USB 3.0 Camera Module

339,00 €

inkl. 19% MwSt.

(284,87 € exkl. MwSt.)

bestellbar
Lieferzeit: ca. 3 Monate (DE - Ausland abweichend)

Beschreibung
Kundenrezensionen

Embark on a new level of imaging precision with Arducam's latest addition to the USB 3.0 camera series—the IMX335 OIS USB3 camera. Engineered for excellence, it boasts Optical Image Stabilization (OIS) to deliver sharp, clear images, even in dynamic sports scenes.

This advanced camera is built on a Starvis 1/2.8" IMX335 CMOS sensor, providing a maximum still resolution of 2592x1944. The expansive 123° (D) wide-angle field of view ensures comprehensive scene capture, perfect for diverse photography needs.

Arducam latest USB 3.0 camera stands out with its user-friendly plug-and-play functionality. Offering compatibility with Windows and Linux OSs, no additional drivers are needed, simplifying the setup process. Moreover, its backward compatibility with USB 2.0 host ports ensures flexibility and seamless connectivity.

Applications

Machine Vision
Video Surveillance
3D Scanning and Metrology
Live Streaming
Video Conferencing

Features

Superior Imaging: Utilizes a Starvis back-illuminated IMX335 image sensor that delivers low-light sharpness at a maximum still resolution of 2592x1944.
Flexible Frame Rates: Programmable your desired frame rates, even reaching 50fps at 1080p.
Proprietary on-board ISP advances image enhancement: de-Bayer, gamma, BLC, AE, AWB, CCM, RGB2YUV.
Optical Image Stabilization: Capture sharp and stable shots with OIS and experience an expansive 123° (D) field of view for immersive photos and videos.
Plug and Play: Encased in an all-inclusive metal housing, its compact design makes it plug-and-play ready for on-the-go creativity.

Specifications

Sensor	IMX335
Image Sensor
Still Resolution	5 Megapixels
Color Filter Type	Color
Shutter Type	Rolling
Optical Size	1/2.8"
Output Format	YUY2
Pixel Size	2.0 μm x 2.0 μm
Sensor Active Area	2592(H)×1944(V)
IR Sensitivity	Integral IR-cut Filter, visible light only
Frame Rate (USB 3.0)	19201080@50fps, 25921944@25fps
Frame Rate (USB 2.0)	1920*1080@10fps
Stabilizer Type	Optical Image Stabilization (OIS)/Micro Gimbal Stabilizer (MGS)
Stabilizer Dimensions	18.818.815.8 mm
Stabilizer Compensation Axis No.	2 (Pitch and Yaw)
Stabilizer Compensation Angle	≤±4.5°
Stabilizer Compensation Ratio	≥27 dB
Stabilizer Resonant Frequency	TBD
Stabilizer Average Power	180 mW
Lens
Focus Type	Fixed Focus
FOV	123°(D)×112°(H)×96°(V)
Lens Mount	M8.0
F.NO	F2.4
E.F.L	2.9mm
Default Focus Range	1m-∞
USB Interface
Interface	USB 3.2 Gen 1 device, backward compatible with USB 2.0 hosts
Connector	Type-C reversible interface connector
UVC Compliant	No additional drivers required
Electrical and Mechanical
Operating Voltage	5 V +/- 5%
Operating Temp.	32°F-158°F (0°C to 70°C)
Power Requirements	Max: 1.37W , Min: 0.98W
Camera Board Size	34×34 mm
Functionality and Compatibility
Supported OS	Windows, Linux
Recommend Sample Application	PotPlayer for Windows, qv4l2 for Linux
UVC Controls	Brightness, Contrast, Saturation, White Balance (Auto/Manual), Gain, Exposure (Manual/Auto)

Package Including

1 x IMX335 USB3.0 Camera Module with Enclosure
1 x 1m USB A to Type-C Cable

Notes

Tripod is not included in the package, please check UB0224 and UB0216 for additional purchase.
