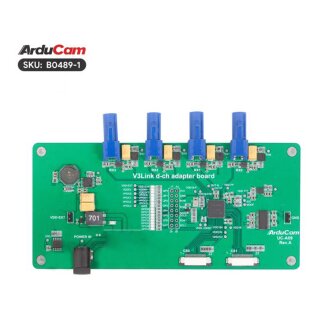

Arducam B0489-1 V3Link d-ch Rx board with Power Adapter

Arducam B0489-1 V3Link d-ch Rx board with Power Adapter

Artnr.: AC2-204891
HAN: B0489-1
Hersteller: Arducam

Arducam V3Link d-ch Rx board with Power Adapter

79,90 €

inkl. 19% MwSt.

(67,14 € exkl. MwSt.)

bestellbar
Lieferzeit: ca. 3 Monate (DE - Ausland abweichend)

Beschreibung
Kundenrezensionen

Arducam's V3Link camera kit boasts a Full HD IMX219 sensor following the V3Link protocol, standing as the prime choice for high-bandwidth, long-range vision projects. Its shielded coaxial cable ensures dependable power and data transmission up to 10m, maintaining low latency for optimal performance.

Featuring 4× 8MP camera modules, this kit allows flexible channel switching or independent control. Achieving both multi-camera synchronization and remote control, it offers unparalleled flexibility and convenience.

V3Link, a high-bandwidth transmission interface developed by Texas Instruments, leverages FPD-Link's IP for ADAS, security cameras, industrial, and medical imaging. Empowering Arducam's camera kit, ensures efficient data transmission, making it a robust choice for various applications and long-distance connections.

Applications

ADAS
Automotive
Security Cameras
Industrial Systems
Medical Imaging

Features

TI SK-AM62A-LP Compatibility: Tailored for TI SK-AM62A-LP development board, offering a multi-camera solution with high bandwidth for extended-distance transmission.
IMX219 CMOS & Long-Range Stability: Utilizes the IMX219 8MP sensor for high-quality imaging. Achieves stable cable connections up to 10 meters with multi-camera synchronization.
Flexible Channel Management: Enables channel switching and independent control, supporting up to four cameras. High-frequency signal transmission facilitates versatile applications like automotive, surveillance, medical, and industrial imaging.
Cost-Effective 4-Channel System: Allows the creation of a synchronized 4-channel vision system, reducing development costs. Ideal for various applications, ensuring a smaller footprint and flexible deployment.
Plug-and-Play Convenience: Effortless setup with no additional configuration or drivers required. Streamlines the integration process for quick and hassle-free deployment in diverse scenarios.

Specifications

Image Sensor	IMX219
Image Sensor
Still Resolution	8 Megapixels
Video Modes	1080p30, 640 × 480p30
Sensor Resolution	3280 × 2464 pixels
Sensor image area	3.68 x 2.76 mm (4.6 mm diagonal)
Pixel Size	1.12 μm x 1.12 μm
Optical Size	1/4"
IR Sensitivity	Integral IR-cut Filter, visible light only
Lens
Focus Type	Fixed Focus
Focal Length	3.04mm
F.NO	F2.0
Field of View(FOV)	62.2°(H)×48.8°(V)
Lens Type	Stock Lens
Focus Distance	200mm to infinity
Electrical and Mechanical
Camera Board Size	25 × 24mm
Peaking Current	300mA

Package Including

1× Arducam V3Link d-ch Rx board
4× Arducam V3Link camera Tx board
4× 1m Fakra Z Female to Female RF Coaxial Cable
4× Arducam IMX219 Camera Module
4× 40cm 22-22pin FPC Cable
1× 15cm 22-22pin FFC Cable
1× Power Adapter

Notes

TI development board is not included in the package.
Only supports the Arducam IMX219 camera module, and does not support mixing with other sensors.
