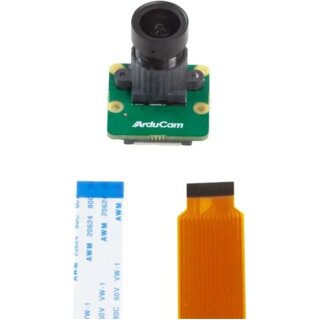

Arducam B0568 IMX335 MIPI Camera Module for RPi, Arducam OpenSource Camera with Rich Resources for Development

Artnr.: AC1-000568
HAN: B0568
Hersteller: Arducam

1 x 5MP IMX335 Low Light MIPI Camera Module 1 x 15cm 15pin-22pin Ribbon Cable 1 x 15cm 22pin-22pin Ribbon Cable

45,90 €

inkl. 19% MwSt.

(38,57 € exkl. MwSt.)

zzgl.

bestellbar
Lieferzeit: ca. 3 Monate (DE - Ausland abweichend)

Beschreibung
Kundenrezensionen

Overview

The Arducam IMX335 MIPI Camera Module is a 5MP open-source camera designed for Raspberry Pi and embedded Linux systems, featuring Sony’s STARVIS sensor for excellent low-light performance and crisp 2592×1944 resolution. It comes with a pre-tuned M12 wide-angle lens and integrated 650nm IR filter, offering a ready-to-use solution for a wide range of vision applications. This variant is supported by upstreamed libcamera drivers, full hardware schematics, and 3D files for smooth integration and customization.

Applications

Industrial Inspection
Smart Traffic Systems
Surveillance & Security
Agricultural Tech
Embedded Vision Prototyping

Features

5MP High Resolution
Delivers detailed and sharp images with a 2592(H) x 1944(V) active pixel array and a 2.0μm pixel size, offering high clarity for both general imaging and vision-based applications.
Good Low-Light Performance
Built around Sony’s STARVIS IMX335 sensor with back-illuminated pixel technology, this module performs well in low-light environments, making it suitable for indoor, dusk, or controlled lighting conditions.
Optimized M12 Lens Selection
Equipped with a carefully selected M12 wide-angle lens that has been pre-tuned for the sensor. It includes a built-in 650nm IR cut filter for accurate color reproduction under normal lighting.
Open-Source Friendly
Fully compatible with Raspberry Pi and embedded Linux systems, the module comes with upstreamed libcamera drivers, open schematics, and 3D models, ensuring smooth integration and flexibility for developers.
Robust Developer Ecosystem
Supported by the active libcamera community, this camera module is ideal for custom tuning and prototyping, allowing developers to fine-tune ISP parameters and adapt the module to specific use cases.

Specifications

Image Sensor
Sensor	IMX335
Still Resolution	5MP
Color Filter Type	Color
Shutter Type	Rolling Shutter
Optical Size	1/2.8''
Output Format	RAW10/RAW12
Pixel Size	2.0 μm x 2.0 μm
Sensor Active Area	2592(H)x1944(V)
Resolution@Frame Rate	2592x1944@30fps
Lens
Focus Type	Fixed Focus
FOV	104.9°(D)×82.4°(H)×53°(V)
Lens Mount	M12 Mount
F.NO	F1.6±10%
E.F.L	4.3±5% mm
Default Focus Range	1.9m-INF
IR Sensitivity	Integral 650nm IR Filter
Electrical and Mechanical
Operating Voltage	3.3V
Operating Temp.	-10°C to +60°C
Power Consumption	1W
Camera Board Size	24mm x 25mm
Functionality and Compatibility
Supported OS	Bookworm
Supported Platforms*	Raspberry Pi 5/4B/3B+/3/2/CM3/CM4/Zero W/Zero 2 W

Package Including

1 x 5MP IMX335 Low Light MIPI Camera Module
1 x 15cm 15pin-22pin Ribbon Cable
1 x 15cm 22pin-22pin Ribbon Cable

Documentation

Product Assets

Download product assets
