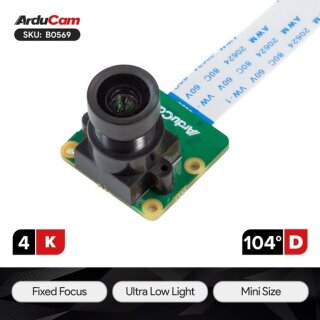

Arducam B0569 IMX415 MIPI Camera Module for RPi, Arducam OpenSource Camera with Rich Resources for Development

Arducam B0569 IMX415 MIPI Camera Module for RPi, Arducam OpenSource Camera with Rich Resources for Development

Artnr.: AC1-000569
HAN: B0569
Hersteller: Arducam

1 x 4K IMX415 Ultra Low Light MIPI Camera Module 1 x 15cm 15pin-22pin Ribbon Cable 1 x 15cm 22pin-22pin Ribbon Cable

50,90 €

inkl. 19% MwSt.

(42,77 € exkl. MwSt.)

bestellbar
Lieferzeit: ca. 3 Monate (DE - Ausland abweichend)

Beschreibung
Kundenrezensionen

Overview

The Arducam IMX415 MIPI Camera Module is a 8.3MP open-source camera designed for Raspberry Pi and embedded Linux systems, featuring Sony’s STARVIS sensor for excellent low-light performance and crisp 3840 x 2160 resolution. It comes with a pre-tuned M12 wide-angle lens and integrated 650nm IR filter, offering a ready-to-use solution for a wide range of vision applications. This variant is supported by upstreamed libcamera drivers, full hardware schematics, and 3D files for smooth integration and customization.

Applications

Industrial Inspection
Smart Traffic Systems
Surveillance & Security
Agricultural Tech
Embedded Vision Prototyping

Features

8.3MP Ultra HD Clarity
Captures high-resolution images at 3840(H) × 2160(V) with a fine 1.45μm pixel size, delivering crisp, detailed visuals ideal for advanced imaging and machine vision tasks.
Excellent Low-Light Performance
Powered by Sony’s high-sensitivity STARVIS IMX415 sensor with back-illuminated pixel technology, the camera performs exceptionally well in dim or low-light environments, ensuring clear imaging even in challenging lighting conditions.
Optimized M12 Lens Selection
Pre-tuned with a wide-angle M12 lens that’s carefully selected to match the sensor's performance. It includes a built-in 650nm IR cut filter for accurate daytime color reproduction.
Open-Source Friendly
Designed for seamless integration with Raspberry Pi and embedded Linux systems, the module supports upstreamed libcamera drivers and provides full schematics, enabling customization and ease of development.
Robust Developer Ecosystem
Backed by community-supported libcamera tuning, developers can fine-tune image quality and parameters to meet the unique requirements of their vision-based projects.

Specifications

Image Sensor
Sensor	IMX415
Still Resolution	4K
Color Filter Type	Color
Shutter Type	Rolling Shutter
Optical Size	1/2.8''
Output Format	RAW10
Pixel Size	1.45 μm x 1.45 μm
Sensor Active Area	3840(H)x2160(V)
Resolution@Frame Rate	3864x2192@15.75fps
Lens
Focus Type	Fixed Focus
FOV	104°(D)×88°(H)×47°(V)
Lens Mount	M12 Mount
F.NO	F1.0±10%
E.F.L	3.9±5% mm
Default Focus Range	3m-INF
IR Sensitivity	Integral 650nm IR Filter
Electrical and Mechanical
Operating Voltage	3.3V
Operating Temp.	0°C to 70°C
Power Consumption	MAX:1W
Camera Board Size	24mm x 25mm
Functionality and Compatibility
Supported OS	Bookworm
Supported Platforms*	Raspberry Pi 5/4B/3B+/3/2/CM3/CM4/Zero W/Zero 2 W

Package Including

1 x 4K IMX415 Ultra Low Light MIPI Camera Module
1 x 15cm 15pin-22pin Ribbon Cable
1 x 15cm 22pin-22pin Ribbon Cable

Documentation

Product Assets

Download product assets

Versandgewicht:	0,05 kg
