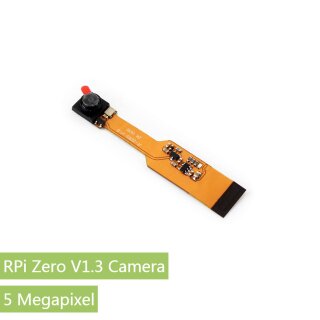

Waveshare 12039 RPi Zero V1.3 Camera
Beschreibung
Features
- Raspberry Pi Camera, supports only Raspberry Pi Zero V1.3 and Raspberry Pi Zero W
- 5 megapixel OV5647 sensor
- Camera specifications
- CCD size : 1/4inch
- Focal Length : 3.51mm
- Angle of View (diagonal) : 69.1 degree
- Sensor best resolution : 1080p
- 2592 × 1944 still picture resolution
- Support 1080p30, 720p60 and 640x480p60/90 video record
- Dimension: 60mm × 11.5mm × 5mm
Development Resources
Wiki : www.waveshare.com/wiki/RPi_Zero_V1.3_Camera
Selection Guide
| Partnumber | Pixels | Sensor | Adjustable Focus Distance | Infrared Night Vision | Angle of View (diagonal) (degree) | Manufacturer | Dimensions (mm) | Recommendation1 |
|---|---|---|---|---|---|---|---|---|
| RPi Camera V2 | 8 Mega | IMX219 | × | × | 62.2 | element14 | 25x24x9 | ★★★☆ |
| RPi NoIR Camera V2 | 8 Mega | IMX219 | × | √ | 62.2 | element14 | 25x24x9 | ★★★☆ |
| RPi Camera (B) | 5 Mega | OV5647 | √ | × | 60.6 | Waveshare | 32x32 | ★★★ |
| RPi Camera (D) | 5 Mega | OV5647 | × | × | 66 | Waveshare | 25x24x9 | ★★ |
| RPi Camera (E) | 5 Mega | OV5647 | × | √ | 69.1 | Waveshare | 25x24x6 | ★★ |
| RPi Camera (F) | 5 Mega | OV5647 | √ | √ | 75 | Waveshare | 25x24 | ★★★★ |
| RPi Camera (G) | 5 Mega | OV5647 | √ | × | 160 | Waveshare | 25x24 | ★★★★ |
| RPi Camera (H) | 5 Mega | OV5647 | √ | √ | 160 | Waveshare | 25x24 | ★★★★ |
| RPi Camera (I) | 5 Mega | OV5647 | √ | × | 170 | Waveshare | 32x32 | ★★★ |
| RPi Camera (M) | 5 Mega | OV5647 | √ | × | 200 | Waveshare | 25x24 | ★★★☆ |
| RPi IR-CUT Camera2 | 5 Mega | OV5647 | √ | √ | 75.7 | Waveshare | 31x32 | ★★★★ |
| RPi IR-CUT Camera (B)2 | 5 Mega | OV5647 | √ | √ | 40 | Waveshare | 31x32 | ★★★★ |
| RPi Zero V1.3 Camera3 | 5 Mega | OV5647 | × | × | 69.1 | Waveshare | 60x11.5x5 | ★★★ |
| RPi FPC Camera | 5 Mega | OV5647 | × | × | 72 | Waveshare | 300x16x5 | ★★★ |
- The recommendation is considered from sales report and cost performance.
- While normal IR cameras will take curious reddish pictures by daylight for lacking of IR filter in the CCD, the RPi IR-CUT Camera can take better pictures in correct color by daylight, and still features the ability to see in the dark.
- RPi Zero V1.3 Camera supports only Raspberry Pi Zero V1.3,Raspberry Pi Zero W, and Raspberry Pi Zero WH
Package Contents
- RPi Zero V1.3 Camera × 1
| Versandgewicht: | 0,01 Kg |
