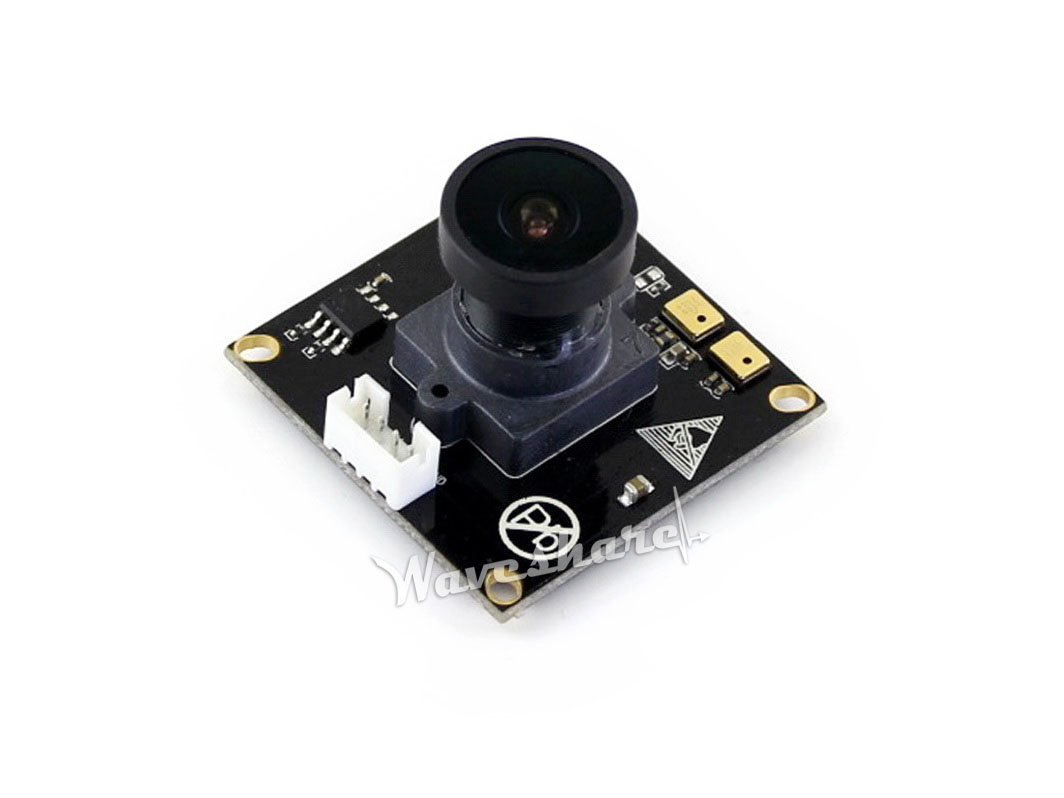

Waveshare USB Camera (A), IMX179 8MP HD, Embedded Mic
Artnr.: WS2-014122
IMX179 8MP USB-Kamera, Ultra High Definition, integriertes Mikrofon, treiberfrei

46,90 € inkl. 19% MwSt.
39,41 € exkl. MwSt.

zzgl. Versand

ab Lager lieferbar

Lieferzeit: 1 - 3 Arbeitstage

Beschreibung

Features

  • 8 megapixel IMX179 sensor
  • 3288x2512 resolution
  • USB interface, UVC protocol, driver-free, plug-and-play
  • Supports Raspberry Pi and Jetson Nano
  • DSP
    • Automatic white balance (AWB)
    • Automatic exposure (AEC)
    • Automatic gain control (AGC)
  • Camera specifications
    • CCD size: 1/3.2inch
    • Aperture (F): 1.8
    • Focal Length: 2.8mm
    • Field of View (Diagonal): 145°
  • Mic specifications
    • Sensitivity: -26dB (1kHz 1Pa)
  • Interface: USB2.0
  • Image formats: MJPEG, YUY2
  • Operating temperature: 0°C ~ 50°C
  • Dimension: 38mmx38mm
  • Supported OS: Windows, Linux

Development Resources

Wiki : www.waveshare.com/wiki/IMX179_8MP_USB_Camera_(A)

Selection Guide

Part Number Pixels Sensor Best Resolution Dimension Field of View Feature
OV2710 2MP USB Camera (A) 2MP OV2710 1920x1080 38mmx38mm 145° Low-light sensitivity
OV5640 5MP USB Camera (A) 5MP OV5640 2592x1944 18×36mm 135° Auto focusing
OV5648 5MP USB Camera (A) 5MP OV5648 2592x1944 9mmx62mm 70° Small in size
IMX335 5MP USB Camera (A) 5MP IMX335 2592x1944 38×38mm 106° Manually focusing
IMX179 8MP USB Camera (A) 8MP IMX179 3288x2512 38mmx38mm 145° HD, Embedded digital mic
IMX258 13MP OIS USB Camera (A) 13MP IMX258 4224×3192 38×35.8mm 127° HD, OIS

Package Contents

  • IMX179 8MP USB Camera (A) x1

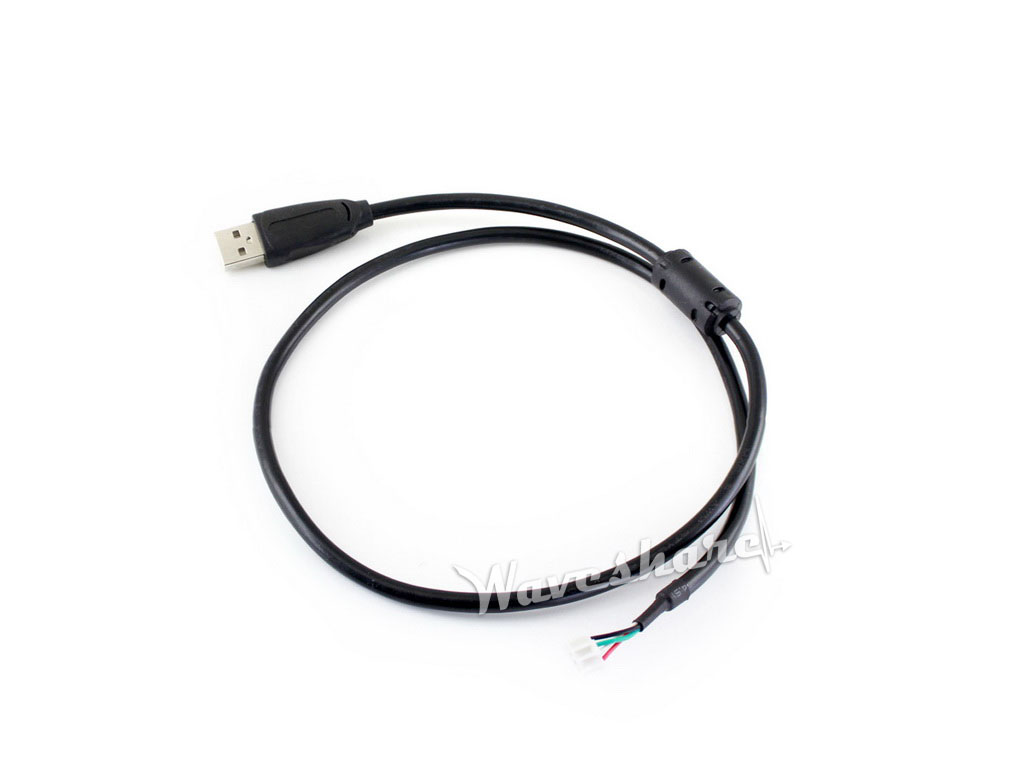

  • USB to 4-pin cable x1
1
2

Versandgewicht: 0,05 Kg
