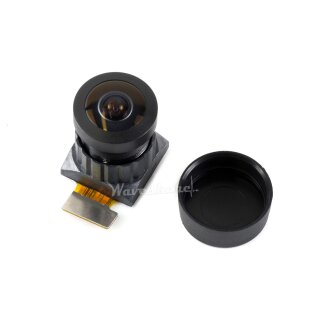

Waveshare 15264 IMX219-D160
Artnr.: WS2-015264
IMX219 Kameramodul für das offizielle Raspberry Pi Camera Board V2, 160 Grad FoV

14,90 € inkl. 19% MwSt.
12,52 € exkl. MwSt.

zzgl. Versand

10+ ab Lager lieferbar

Lieferzeit: 1 - 3 Arbeitstage

Beschreibung

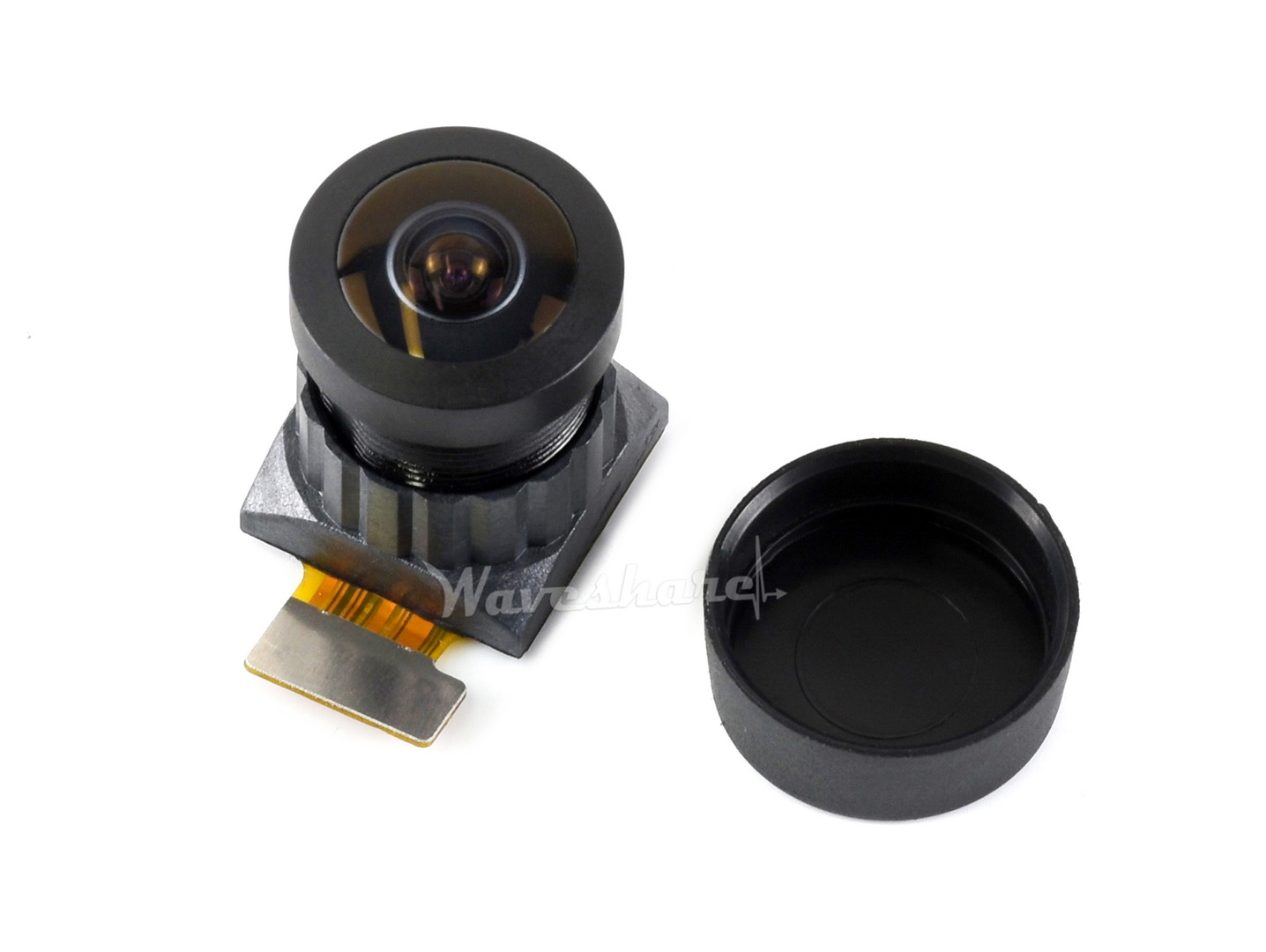

This is a camera module (without driver PCB) compatible with the official Raspberry Pi Camera Board V2, with 8-megapixel IMX219 sensor and features 160 degree field of view.

If you got a Raspberry Pi Camera Board V2 and just want to try something new, here it is.

Features

  • Sony IMX219 8-megapixel sensor
  • Camera specifications
    • CMOS size : 1/4inch
    • Aperture (F) : 2.35
    • Focal Length : 3.15mm
    • Angle of View (diagonal) : 160 degree (while the original V2 camera is only 62.2 degree)
    • Distortion: < 14.3%
    • Focusing Range: 20cm ~ infinity
  • 3280 x2464 still picture resolution
  • Support 1080p30, 720p60 and 640x480p90 video record

How to Use

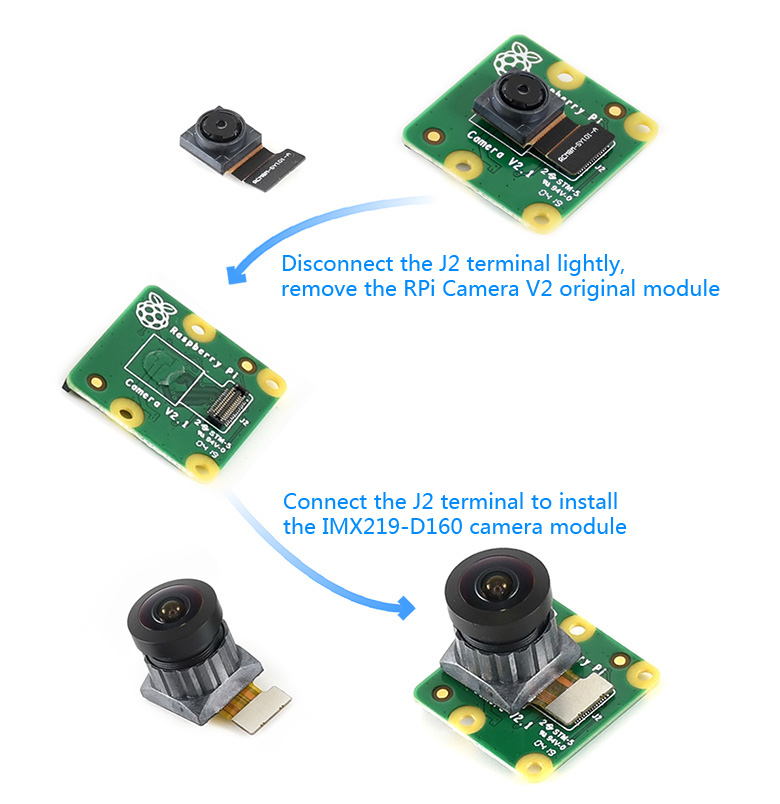

IMX219-D160 installation

Dimensions

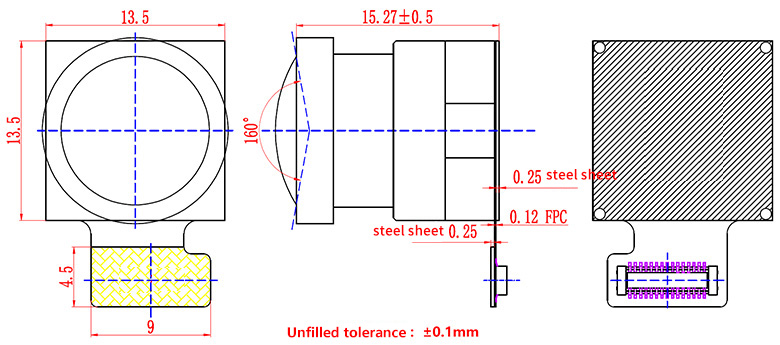

IMX219-D160 dimensions

Development Resources

3D Drawing: IMX219-D160_3D_Drawing.zip

Selection Guide

Product Pixels Sensor Infrared Camera Angle of View (diagonal) (degree) Aperture (F) Focal Length (mm) PCBA Suit for
RPi Camera V2 8 Mega IMX219 × 1 62.2 2.0 3.04 Raspberry Pi, CM3/3+/4, Jetson Nano
RPi NoIR Camera V2 1 62.2 2.0 3.04 Raspberry Pi, CM3/3+/4, Jetson Nano
IMX219-77 Camera × 1 77 2.0 2.96 CM3/3+/4, Jetson Nano
IMX219-77IR Camera 1 77 2.0 2.96 CM3/3+/4, Jetson Nano
IMX219-120 Camera × 1 120 2.2 1.88 CM3/3+/4, Jetson Nano
IMX219-160 Camera × 1 160 2.35 3.15 CM3/3+/4, Jetson Nano
IMX219-160IR Camera 1 160 2.35 3.15 CM3/3+/4, Jetson Nano
IMX219-160 IR-CUT Camera 1 162 2.7 3.62 CM3/3+/4, Jetson Nano
IMX219-170 Camera × 1 170 2.0 2.2 CM3/3+/4, Jetson Nano
IMX219-200 Camera × 1 200 2.0 0.87 CM3/3+/4, Jetson Nano
IMX219-D160 × 1 160 2.35 3.15 × Raspberry Pi, CM3/3+/4, Jetson Nano
IMX219-83-Stereo-Camera × 2 83 - 2.6 CM3/3+/4, Jetson Nano (B01)

Package Contents

Note: this is a raw camera module without driver PCB, the Raspberry PiandRaspberry Pi Camera Board V2 PCB in the photos are NOT included

  1. IMX219-D160 x1
1

Versandgewicht: 0,01 Kg
