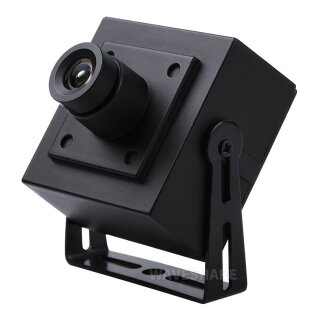

Waveshare 18413 OpenNCC-Lite-4G8M
Artnr.: WS2-018413
OpenNCC Programmable AI Camera Kit, 3872 × 2180 Pixels, OpenVINO IR Models Support, Small Form Factor

129,00 € inkl. 19% MwSt.
108,40 € exkl. MwSt.
ab Lager lieferbar

Lieferzeit: 1 - 3 Arbeitstage

Beschreibung

programmable AI camera

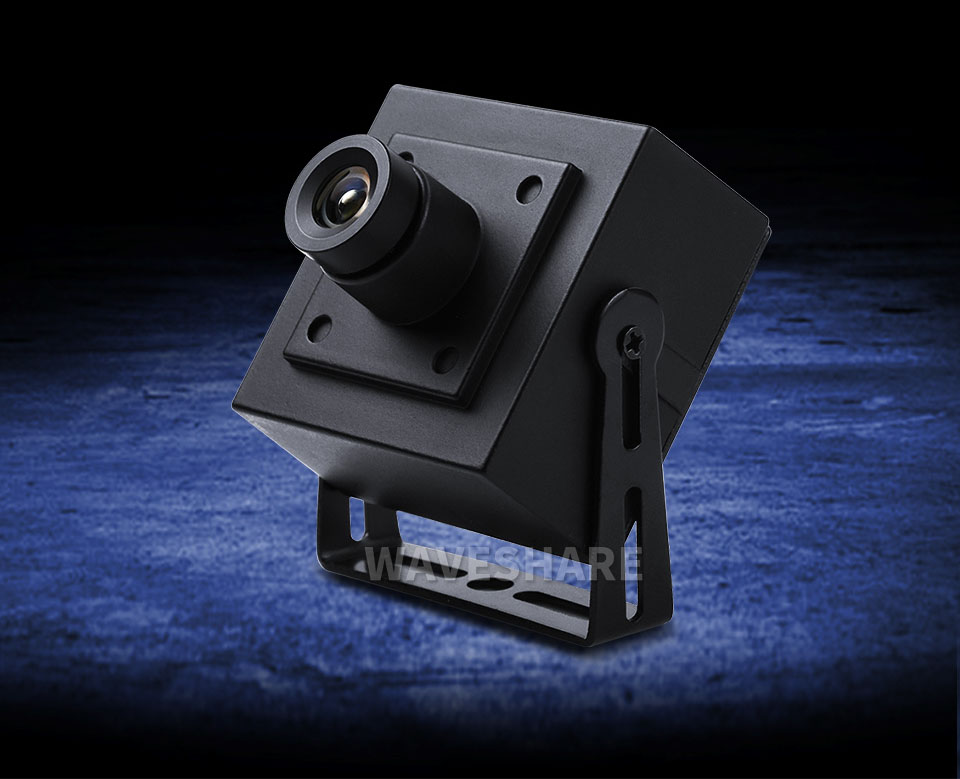

OpenNCC Camera Developer Kit

swift changeable "brain", endless possibilities of the AI camera

This OpenNCC camera developer kit is a simple and easy-to-learn AI camera, which adopts standard industrial camera design. It is small and elegant, easy to use and integrate. Rich camera development pack and technical documents are provided for secondary development. It supports various deep learning frameworks, supports C / C++ / Python, as well as OpenNCC View open source. Put on this "ballet pump" for your algorithm, make it to be shining on the stage!

Specifications

AI
Performance 4TFlops (Max)
Model support all of the OpenVINO models
Framework support ONNX, TensorFlow, Caffe, MXNet, Kaldi

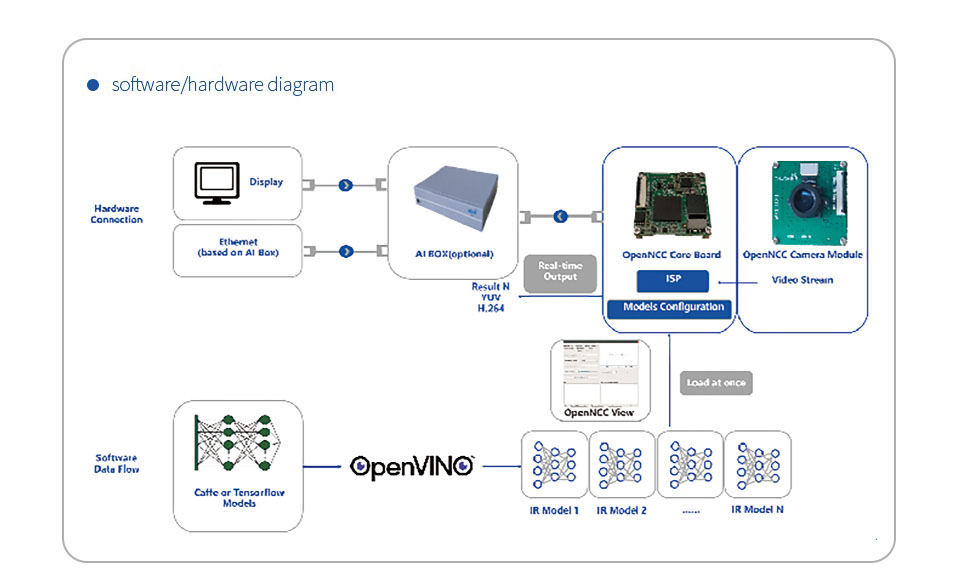

software
Image signal process supported
Open source resources camera development pack OpenNCC CDK, technical documents, configuration tool OpenNCC View
Language support C / C++ / Python
SDK functions 1. retrieving video stream 2. AI models download and change 3. obtain model operation result 4. camera take photos, reset, etc.
OpenView functions configure camera setting, configure camera local AI model
OpenNCC CDK OS support Linux and windows
OpenNCC View OS support Linux
hardware
Dimensions 50 × 50 × 55mm
Weight camera net weight 140g
VPU Intel Movidius Myriad X MV2085
Operating temperature 0-50?
RAM 4GB
Data port USB Type-C 2.0/3.0
Power supply 5V / 2A
Camera module 8MP visible light module
Resolution 3872 × 2180
Frame rate 30Hz
Horizontal FOV 58°

HD image output

3872 × 2180 HD resolution, with image pre-processing functionvideo output formats including YUV, H.264, H.265, MJPEG

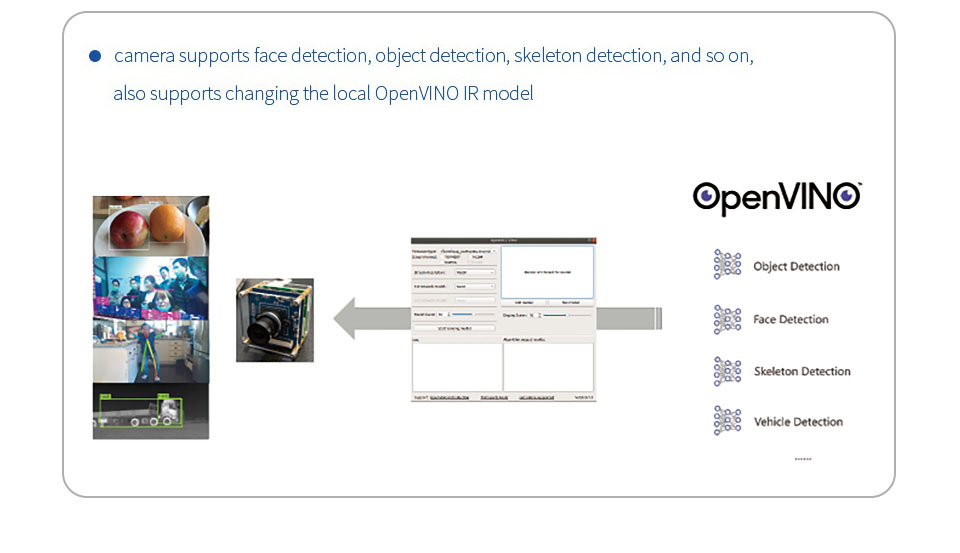

freely changeable AI models

OpenNCC allows the camera to freely change local OpenVINO IR modelsmake it easy to enable functions like face detection, object detection, skeleton detection

Intel AI Chip Inside

Integrates Intel AI chip which is compatible with all of the OpenVINO IR modelsvia the OpenNCC View tool

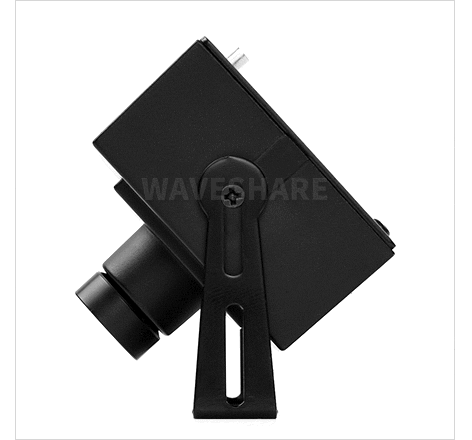

Flexible stand

allows height adjustment and 360° rotation

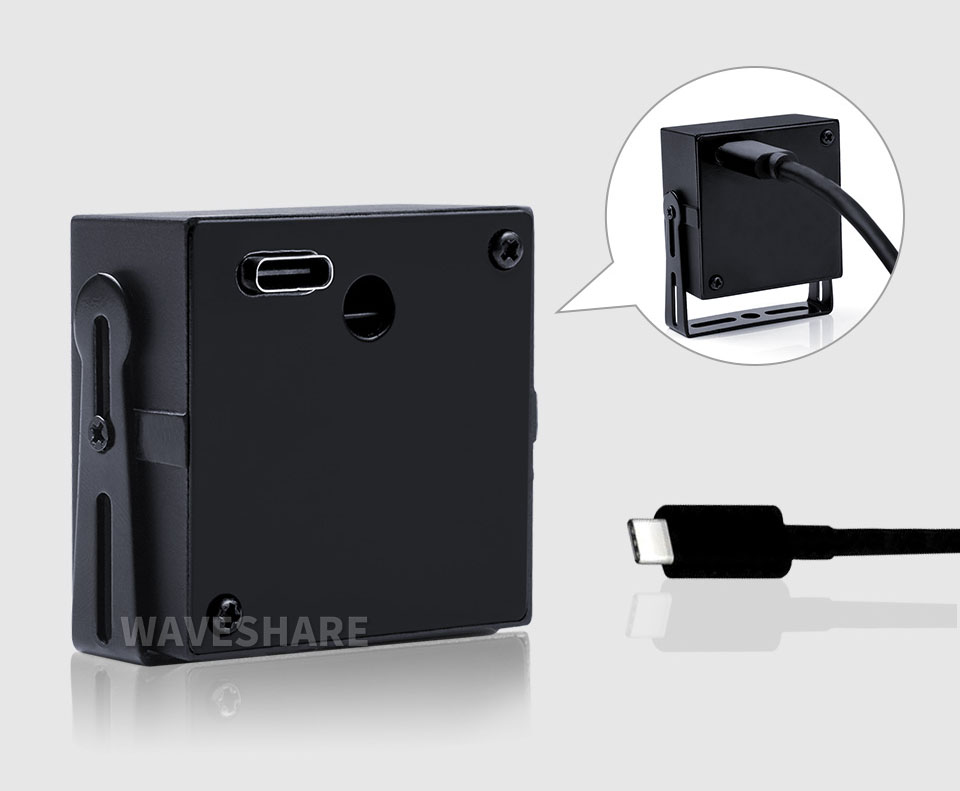

USB plug-and-Play

Make your own changeable AI camera quickly and easily just plug it onto the computer through a USB-C cable to start development

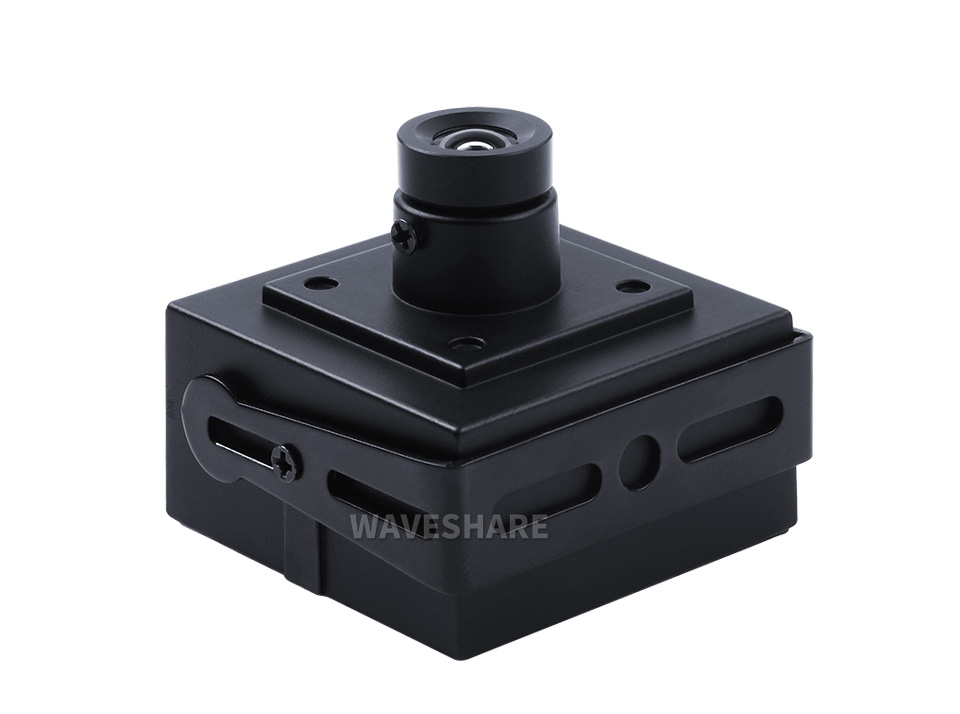

Aluminum alloy body

Aluminum alloy material with modern space grey finishrobust, nice looking, wear-proof, corrosion-proof

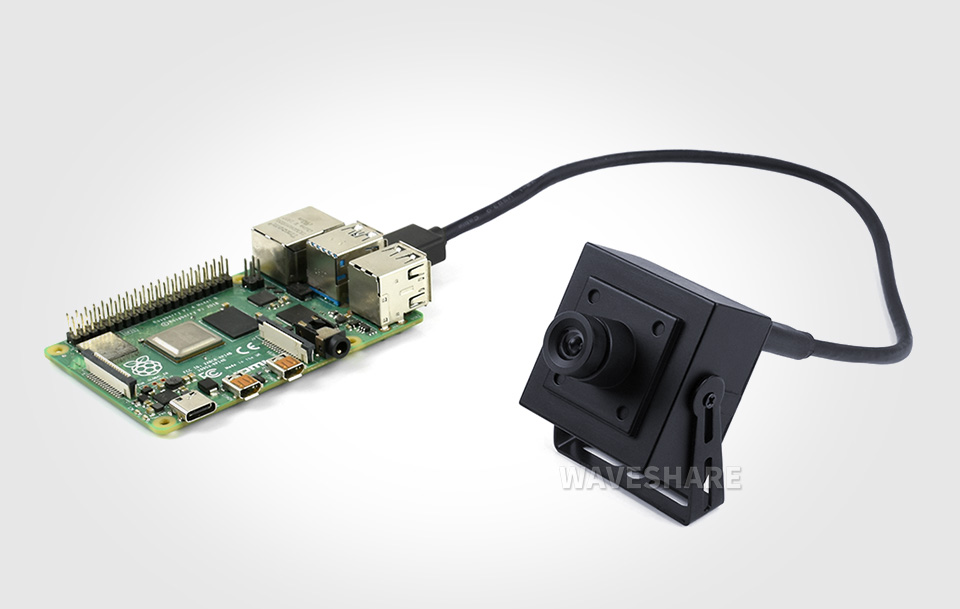

Host environment

Ubuntu16.04, Ubuntu18.04, Raspberry Pi, Arm Linux (tool chain required for cross compiling)

Raspberry Pi in the photo is NOT included.

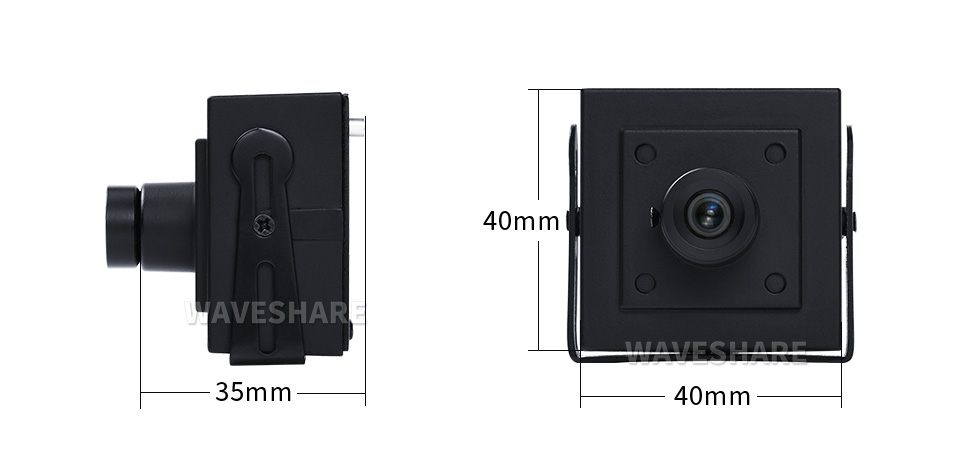

Outline Dimensions

Resources & Services

Package Contents

  1. OpenNCC-Lite-4G8M x1
  2. USB-C cable x1
1
2
