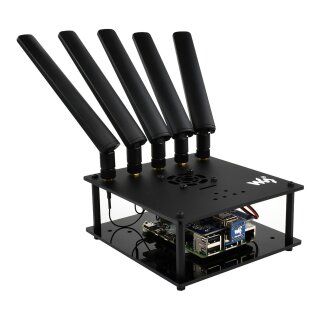

Waveshare 19060 SIM8200EA-M2 5G HAT (EU)
Artnr.: WS1-019060
SIM8200EA-M2 5G HAT mit Antennen, 5G/4G/3G Unterstützung, Snapdragon X55 Onboard, Multi Mode Multi Band, geeignet für Regionen mit 5G Sub-6G Signalabdeckung
Variante
395,00 € inkl. 19% MwSt.
331,93 € exkl. MwSt.
ab Lager lieferbar

Lieferzeit: 1 - 3 Arbeitstage

Beschreibung

Prohibited by the module manufacturer SIMCOM, we're not allowed to ship this product, or to provide any tech support, to the following countries/regions: Iran, North Korea, Cuba, Sudan, Syrian.

SIM8200EA-M2 5G HAT for Raspberry Pi

Comes with SIM8200EA-M2, supports 5G/4G/3G, supports 5G SA and NSA,multi mode multi band, applicable for regions with 5G Sub-6G signal coverage

This 5G/4G/3G Raspberry Pi communication HAT adopts SIMCom 5G module SIM8200EA-M2 , supports 5G NSA and SA networking, providing data rate up to 4 Gbps (DL)  /  500 Mbps (UL). The base board features standard M2 connector, allows connecting with different 4G or 5G communication module with M2 package. There are also USB3.1 port, audio jack and decoder, SIM card slot, etc. Combined with our configuration script and development resources, it is easy to enable 5G high speed communication for the Raspberry Pi or computer. The 5G HAT is ideal for fast evaluating 5G modules, as well as being integrated into sorts of applications where 5G connection is required.

Features at a glance

  • Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards, Jetson Nano
  • Comes with SIM8200EA-M2 core module, based on Qualcomm snapdragon X55 platform, with multi mode multi band support
  • 5G/4G/3G communication support
  • USB3.1 port for testing AT commands, sending messages, cloud communication, making phone call, getting GNSS positioning data, etc.
  • SIM card slot, supports 1.8V / 3V SIM card
  • 2x LED indicators, easy to monitor the working status
  • AT command support, based on 3GPP TS 27.007, 27.005 and V.25TER command set
  • Onboard audio jack and audio decoder, allows audio operation like making phone call *
  • Multi-constellation dual-band positioning: GPS, GLONASS, Beidou, Galileo, and QZSS
  • Operating system support: Windows/Linux/Android
  • Comes with quality acrylic case and cooling fan, nice looking, better heat dissipation
* Phone call is not available for the moment, further firmware update is required to support this feature.

Specifications

SIM8200EA-M2 SIM8202G-M2
Frequency band
Sub-6G n1, n2, n3, n5, n7, n8, n12, n20, n25, n28, n40, n41, n66, n71, n77, n78, n79
LTE-FDD B1/B2/B3/B4/B5/B7/B8/B12/B13/B14/B17/B18/B19/B20/B25/B26/B28/B29/B30/B66/B71
LTE-TDD B34/B38/B39/B40/B41/B42/B48
WCDMA B1/B2/B3/B4/B5/B8
GNSS GPS, GLONASS, Beidou, Galileo, and QZSS
Data rate
Sub-6G 4 Gbps (DL)  /  500 Mbps (UL)
LTE 2 Gbps (DL)  /  200 Mbps (UL)
HSPA 42 Mbps (DL)  /  5.76 Mbps (UL)
Software functions
Operating systems Windows/Linux/Android
Communication protocols TCP/IP/IPV4/IPV6/Multi-PDP/FTP/FTPS/HTTP/HTTPS/MQTTS/DNS/SSL3.0
SMS Supports MT, MO, CB, Text, PDU
Firmware upgrade Supports firmware upgrade via USB port
Hardware info
SIM card 1.8V/3.0V
Power supply 5V 3A
Antenna connector 6x IPEX-4 connector 4x IPEX-4 connector
Module dimensions 52.0×30.0×2.3mm 42.0×30.0×2.3mm
Applications
Applicable regions Regions with 5G Sub-6G signal coverage including China, US, Japan, South Korea, Europe, the Middle East, Latin America, etc.
Application examples CPE, Smart gateway, Drone, Live streaming, Remote medical treatment, Intelligent security

5G Module comparison

compatible hardware interface, identical software function

SIM8200EA-M2 the 6x antennas version (left), SIM8202G-M2 the 4x antennas version (right)

Multi mode multi band

applicable for most of the countries and regions

Based on Qualcomm snapdragon X55 platform with multi mode multi band support.Applicable for regions with 5G Sub-6G signal coverage including China, US, Japan, South Korea, Europe, the Middle East, Latin America...Supports 5G NSA (4G+5G common networking) and SA (5G standalone networking).

* the frequency band diagram above is for reference only, please confirm the supported bands according to your local service provider.

Multi system support

supports Windows/Android/Linux

Just plug it into USB port, go through some driver installation and simple configuration, the high speed 5G network connection would be ready to use

Multi host support

enabling 5G high speed connection for Raspberry Pi and Windows computer

Sub-6G: up to 4 Gbps (downlink) / up to 500 Mbps (uplink)* LET: up to 2 Gbps (downlink) / up to 200 Mbps (uplink)* HSPA+: up to 42 Mbps (downlink) / up to 5.76 Mbps (uplink)*

* stands for idealized data rate, the actual data rate depends on factors like network coverage, traffic congestion, base station condition, etc.

Cloud Communication

supported communication protocols: TCP / IP / IPV4 / IPV6 / Multi-PDP / FTP / FTPS / HTTP / HTTPS / MQTTS / DNS / SSL3.0

Phone Call & SMS support

allows using AT commands to make phone call or send SMS*

* not available for the moment, further firmware update is required to support this feature.

Application examples

More Possibilities

Setup Introduction

What's on board

  1. Raspberry Pi GPIO header
  2. USB3.1 port
  3. Audio drive circuit
  4. Audio jack
  5. Reset
  6. Power switch
  7. 5V 3A input
  8. 5V to 3.3V translator
  1. 5V to 1.8V translator
  2. 5V to 4.3V translator
  3. Power indicator
  4. Network indicator
  5. M.2 connector
  6. SIM8200EA-M2
  7. Antenna connector
  8. Fan connector
  9. SIM card slot

Outline Dimensions

Resources & Services

Package Contents

  1. SIM8200EA-M2 x1
  2. SIMXXXX-M2 4G/5G HAT base x1
  3. 5G/4G/3G/2G External Antenna x5
  4. OPTIONS Power adapter 5V 3A Micro x1
  5. USB3.0 dual plug cable x1
  6. USB3.0 Adapter x1
  7. USB2.0 Adapter x1
  8. 2×20PIN pin header x1
  9. Black acrylic case panel x1
  10. 4010 cooling fan x1
  11. Screws pack x1
  12. GPS passive antenna x1
  13. Screwdriver x1

Part list change log:

  • [2020-10-28] new accessories are added: USB2.0 Adapter x1, GPS passive antenna x1

Software
