Waveshare 20290 RP2040-Plus
Artnr.: WS1-020290
RP2040-Plus, ein kostengünstiges, leistungsfähiges Pico-ähnliches MCU-Board auf Basis des Raspberry Pi Mikrocontrollers RP2040

9,90 € inkl. 19% MwSt.
8,32 € exkl. MwSt.

zzgl. Versand

10+ ab Lager lieferbar

Lieferzeit: 1 - 3 Arbeitstage

Beschreibung

RP2040 MCU Board Plus

a Pico-like MCU board based on Raspberry Pi RP2040

Compatible with most of the Raspberry Pi Pico add-on modules

Board specifications

Need more Flash for Raspberry Pi Pico? Dislike the outdated Micro USB connector? All these problems are solved by our RP2040-Plus now.

As same as Raspberry Pi Pico, it incorporates the RP2040 microcontroller, with dual-core Arm Cortex M0+ processor running up to 133 MHz, and 26x multi-function GPIO pins.

What's different, it features onboard 4MB Flash, USB-C connector, recharge header, and higher current DC-DC chip.

Key features include:

  • RP2040 microcontroller chip designed by Raspberry Pi in the United Kingdom
  • Dual-core Arm Cortex M0+ processor, flexible clock running up to 133 MHz
  • 264KB of SRAM, and 4MB of on-board Flash memory
  • USB-C connector, keeps it up to date, easier to use
  • Lithium battery recharge/discharge header, suitable for mobile devices
  • Onboard DC-DC chip TPS63000, high efficiency DC-DC buck-boost chip, 1.8A current switch
  • Castellated module allows soldering direct to carrier boards
  • USB 1.1 with device and host support
  • Low-power sleep and dormant modes
  • Drag-and-drop programming using mass storage over USB
  • 26 × multi-function GPIO pins
  • 2 × SPI, 2 × I2C, 2 × UART, 3 × 12-bit ADC, 16 × controllable PWM channels
  • Accurate clock and timer on-chip
  • Temperature sensor
  • Accelerated floating-point libraries on-chip
  • 8 × Programmable I/O (PIO) state machines for custom peripheral support

Pinheader options

C/C++,MicroPython support

Comprehensive SDK, dev resources, tutorials to help you easily get started

Dual-core Arm processor

Dual-core Arm Cortex M0+ processor, flexible clock running up to 133 MHz

26 × multi-function GPIO pins

configurable pin function, allows flexible development and integration

What's On Board

  1. LED user LED (not power indicator)
  2. ETA6096 high efficiency Lithium battery recharge manager
  3. TPS63000 high efficiency DC-DC buck-boost chip
  4. USB Type-C connector
  5. BOOT button press it when resetting to enter download mode
  6. W25Q32JVSSIQ 4MB NOR-Flash
  7. RESET button
  1. RP2040 dual-core processor, up to 133MHz operating frequency
  2. Battery header MX1.25 header, for 3.7V Lithium battery, allows recharging the battery and powering the board at the same time
  3. Pinout compatible with Raspberry Pi Pico
  4. USB test points connecting to USB interface
  5. BOOT test point connecting to BOOT button
  6. DEBUG points

outline dimensions

Resources & Services

Wiki: RP2040-Plus

Selection guide

Brand Raspberry Pi Waveshare
Product Original Mini ver. LCD ver. Plus ver.
Processor Raspberry Pi official RP2040 microcontroller
Regulator RT6150 (DC-DC, 800mA) ME6217 (LDO, 800mA) TPS63000 (DC-DC, 1800mA)
USB Micro USB Type-C
Flash 2MB 4MB
Battery header N/A Yes(concurrent recharging and powering)
Integrated LCD N/A 0.96inch IPS LCD N/A

Package Contents

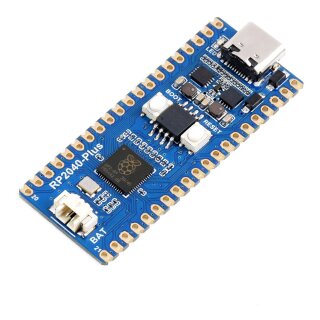

RP2040-Plus

  1. RP2040-Plus x1
RP2040-Plus

RP2040-Plus-M

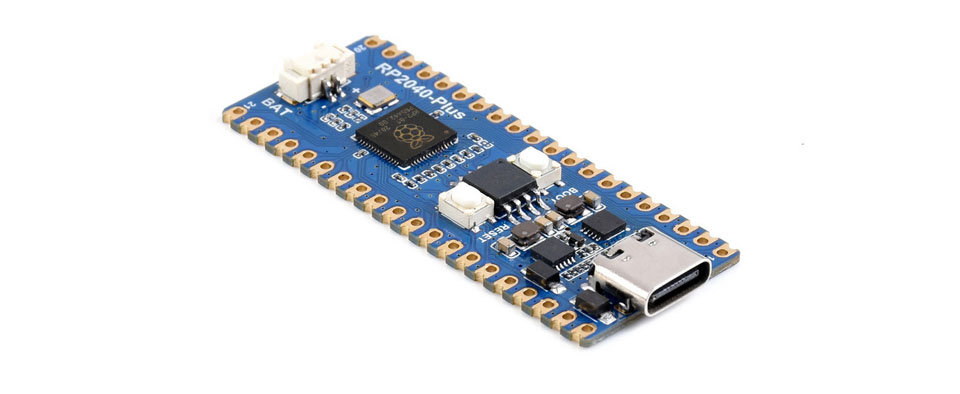

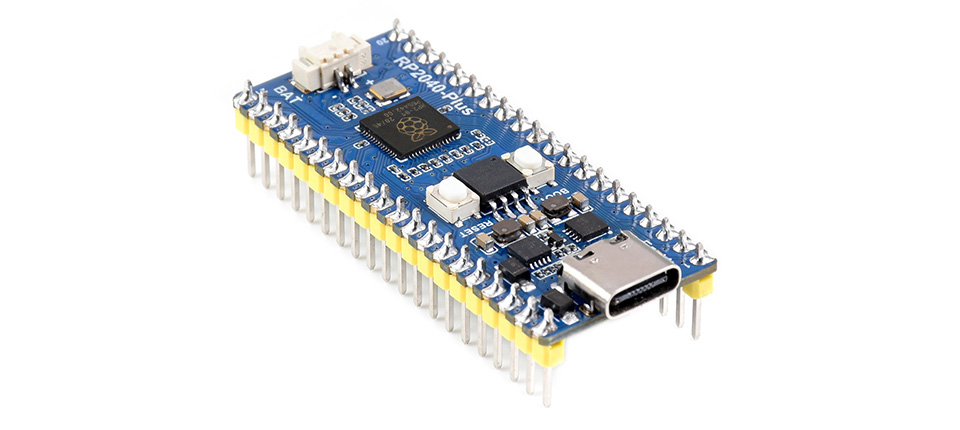

  1. RP2040-Plus with pre-soldered header x1
RP2040-Plus-M
