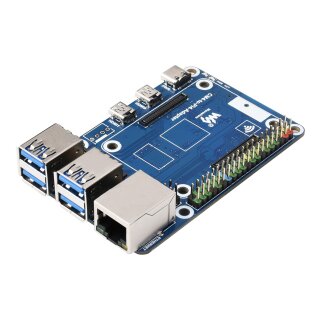

Waveshare 23508 CM4-to-Pi4-Adapter

CM4 To Pi 4B Adapter for Raspberry Pi, Alternative Solution for Raspberry Pi 4B, CM4 optional

23,90 €

inkl. 19% MwSt.

(20,08 € exkl. MwSt.)

zzgl.

CM4 To Pi 4B Adapter for Raspberry Pi

Alternative Solution for Raspberry Pi 4B

Need a Pi4B with eMMC function while the TF card is not very stable? This adapter is designed for you
If you need 4-ch USB3.0 and dislike the slow USB2.0 interface, you can choose this adapter
Suitable for application scenarios which require wider temperature range
Need to find an alternative solution for your product which is designed based on the Raspberry Pi 4B

Onboard standard CM4 connector, support access to CM4 Lite / eMMc series boards with Quad Core Cortex A72 64-bit processor, more powerful performance
Easily compatible with the interfaces of Raspberry Pi 4B board
Onboard 4-ch USB 3.0 ports, compatible with USB 2.0 / 1.1 transmission
Onboard RJ45 Gigabit Ethernet port, 10 / 100 / 1000 M adaptive
Onboard PoE header, for connecting PoE HATs

Use CM4 to reproduce the original appearance of the Pi 4B as much as possible More Cost-effective Choice

* CM4 is optional

Onboard Standard CM4 Connector Support Access To Compute Module 4 Lite / eMMC Series Boards

* CM4 is optional

This adapter board supports all variants of Compute Module 4 Currently available CM4 options (with Wireless) are listed below

PART NUMBER	RAM	eMMC Flash	Recommended Reason
CMPI4101008	1GB	8GB	With WiFi, suitable for applications with low RAM requirement
CMPI4101016	1GB	16GB
CMPI4102008	2GB	8GB	Alternative solution for Pi4B-2GB version With WiFi and eMMC
CMPI4102032	2GB	32GB
CMPI4104008	4GB	8GB	Alternative solution for Pi4B-4GB version With WiFi and eMMC
CMPI4104032	4GB	32GB
