Arducam B0195 Synchronized Stereo Camera HAT for Raspberry Pi

Artnr.: AC2-201950
HAN: B0195
Hersteller: Arducam

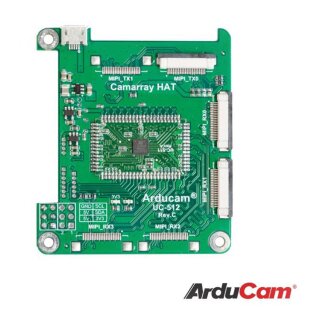

Arducam Synchronized Stereo Camera HAT for Raspberry Pi

68,90 €

inkl. 19% MwSt.

(57,90 € exkl. MwSt.)

bestellbar
Lieferzeit: ca. 3 Monate (DE - Ausland abweichend)

Beschreibung
Kundenrezensionen

Now Arducam released a stereo camera HAT for Raspberry Pi which allows you to connect two 5MP OV5647 or two 8MP IMX219 pi cameras to a single standard pi board, and takes images or video at the same time, even more important they are fully synchronized. The highlight of this stereo camera HAT is that it incorporates Arducam proprietary ArduChip solution, and extends the susage of the single pi camera port, it cheats the Raspberry pi as if only one camera connected. It supports Raspistill command for preview and Raspivid command for video capture/processing swith Rpi default camera driver for its 5MP and 8MP cameras.

It also supports other Arducam Raspberry Pi cameras and proprietary camera driver that works up to two 16MP. With the share oscillator and I2C broadcasting the two cameras are fully synchronized in nano-second level. With the latest new coming Pi 4 hardware, Arducam makes more camera applications possible for Raspberry Pi.

Features

Support all series Raspberry Pi boards, Pi HAT board style
Two MIPI camera inputs and one MIPI camera output
Support 1, 2 and 4 lane MIPI cameras input up-to 800Mbps/lane
Support 2 lane MIPI output
Support Raspistill (preview) and Raspivid (processing) commands for 5MP/8MP pi cameras with half resolution combine
Support Arducam RPI cameras up to 16MP with proprietary camera driver with full resolution combine
Support camera side-by-side combine, channel 0 and channel 1 software switching on the fly
Support digital pan in half resolution combine, programmable pan speed control
Board size: 65 x 56 mm
Weight: 16 g

Application

Stereo Vision
360 Camera
Advanced Surveillance Camera
Enhanced Vision Goggles

Note

Oscillator sharing requires extra cables, soldering skill needed or please use Arducam bundle kit
Contact us for other platform support

Package Includes

1pcs Arducam Synchronized Stereo Camera HAT for Raspberry Pi
1pcs Arducam 73 15pin to 22pin Ribbon FPC flat Wire Cable
1pcs Arducam 80mm 22pin Ribbon FPC flat Wire Cable
4pcs M2.5*11mm Nylon Hex Standoffs
4pcs M2.5 Nylon Nuts
3pcs M2.5*6mm Nylon Screws
