Waveshare 19964 SIM7600E-H 4G DTU (no PA)

Waveshare 19964 SIM7600E-H 4G DTU (no PA)

Artnr.: WS1-019964
Hersteller: Waveshare

Industrial Grade SIM7600E-H 4G DTU, Bidirectional Transparent Transmission Between RS232/RS485/TTL Serial Port And 4G LTE Network, Mainly Applicable For China, Europe, The Middle East, Africa, South Korea

Variante: 79,90 €mit EU Netzteil ausverkauft

74,90 €ohne Netzteil ausverkauft

74,90 €

inkl. 19% MwSt.

(62,94 € exkl. MwSt.)

ausverkauft

Prohibited by the module manufacturer SIMCOM, we're not allowed to ship this product, or to provide any tech support, to the following countries/regions: Iran, North Korea, Cuba, Sudan, Syrian.

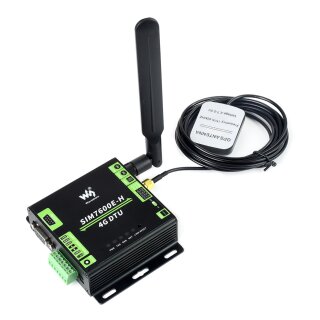

SIM7600E-H 4G DTU

4 modes support: TCP/UDP, Modbus, HTTP, and MQTTRNDIS dial-up & GNSS positioning

This is an industrial grade 4G DTU which incorporates Qualcomm platform 4G communication module SIM7600E-H . It supports multi mode multi band, and suits multi countries or regions. After our secondary development for the module firmware, it takes only some simple configurations to achieve bidirectional data transparent transmission between RS232/RS485/TTL serial port and 4G LTE network.

With features like four modes support (TCP/UDP, Modbus, HTTP, and MQTT), RNDIS dial-up, and GNSS positioning, this industrial grade DTU is designed to be fully functional, easy to use, and stable operating. It would be an ideal choice for fields including industrial data collection, communication, remote control, and other IoT applications that need high throughput 4G data communication and have high requirements of data rate and latency.

Specifications

	SIM7600CE-CNSE	SIM7600E-H
Applicable regions	China, Southeast Asia	China, Europe, the Middle East, Africa, South Korea
Band
4G	LTE-TDD: B38/B39/B40/B41 LTE-FDD: B1/B3/B8	LTE-TDD: B1/B3/B5/B7/B8/B20 LTE-FDD: B38/B40/B41
3G	UMTS/HSDPA/HSPA+: B1/B8	UMTS/HSDPA/HSPA+: B1/B5/B8
GNSS	N/A	GPS/Beidou/GLONASS
2G	GSM/GPRS/EDGE: 900/1800MHz
Data rate
4G (LTE Cat-4)	150Mbps(DL) / 50Mbps(UL)
3G (HSPA+)	42Mbps(DL) / 5.76Mbps(UL)
2G (EDGE)	236.8Kbps(DL) / 236.8Kbps(UL)
2G (GPRS)	85.6Kbps(DL) / 85.6Kbps(UL)
Software features
Communication protocol	TCP/UDP/RNDIS/Modbus	TCP/UDP/RNDIS/Modbus/HTTP(S)/MQTT
TCP/UDP mode	configurable 1~4 channels socket, user-defined heartbeat packet and registration packet
Modbus mode	auto Modbus collection, supports up to 5 commands, user-defined command period and interval
HTTP(S) mode	N/A	supports HTTP/HTTPS POST (json format) configurable server address and port
MQTT mode	N/A	supports multi topics subscription and publish
Software protection	re-connecting when offline, configurable failure reboot time
Parameter configuration	host computer / cloud
Hardware description
Serial port	RS232: connector: DB9 female protection: TVS protection, anti-surge, ESD protection
	RS485: connector: screw terminals (A, B) protection: 600W lightning-proof, anti-surge, and 15KV ESD protection (reserved 120R balancing resistor solder pads)
	TTL (UART): operating voltage: 3.3V or 5V connector: screw terminals (TXD, RXD, GND)
Serial port baudrate	supports 300bps ~ 921600bps, 115200bps by default
USB port	operating voltage: 5V connector: Micro USB protection: ESD protection diode usage: parameter configuration, dial-up, firmware upgrade
Power input	connector: 7~36V screw terminals or DC 12V jack protection: Schottky diode protection, reverse-proof
Hardware protection	embedded MCU, hardware watchdog to prevent system crash, industrial grade aluminum alloy case
Operating voltage	7~36V DC
Operating current	idle: 10~30mA @12V
Operating current	transmit: 80~450mA @12V (depending on the network condition)
Indicator	PWR (power supply), RXD/TXD (UART RX/TX), NET (network), LINK (socket connection)
Button	reset button
SIM card	standard SIM card (1.8V / 3V)
Antenna connector	LTE	LTE, GNSS
Operating temperature	-40?~80?

2G/3G/4G communication

with multi countries/regions multi band support

introducing operating modes

TCP/UDP transparent transmission mode

bidirectional data transparent transmission between serial devices and network server,configurable 1-4 channel socket connections,supports heartbeat packet and registration packet

Modbus mode

the DTU will automatically and periodically collect sensor data and send it to the network server, supports up to 5 commands

HTTP(S) mode

configurable HTTP/HTTPS server address and port for receiving data,the DTU will POST serial data to corresponding server after proper configuration

MQTT mode

supports multi topics subscription and publish

RNDIS dial-up

supports RNDIS dial-up via USB port on Windows/Linuxup to 150Mbps downlink speed and 50Mbps uplink speed*

* stands for idealized data rate, the actual data rate may fluctuate greatly, depending on factors like network coverage, traffic congestion, base station condition, etc.
